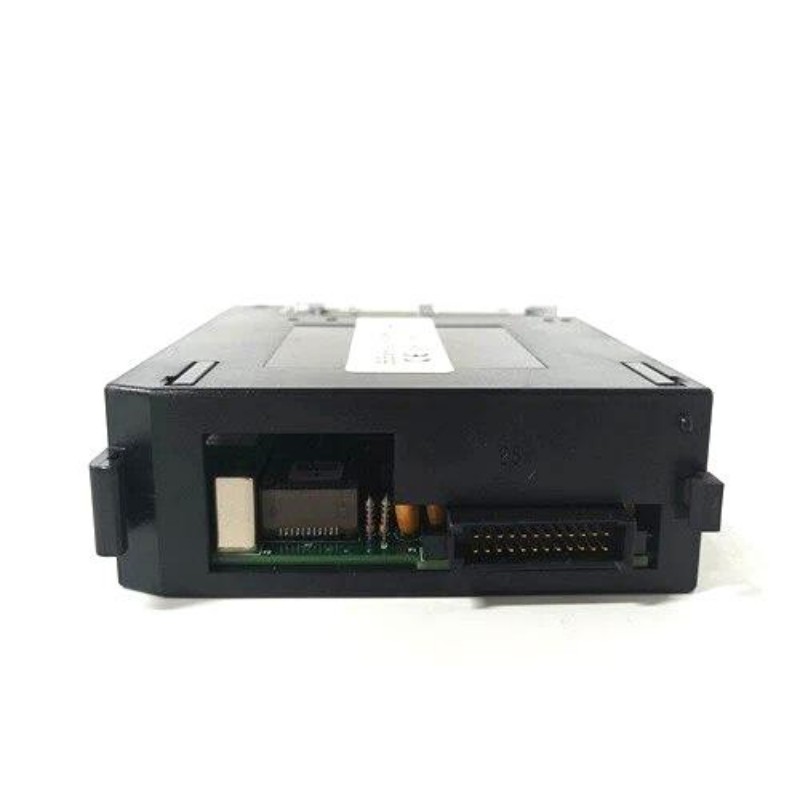

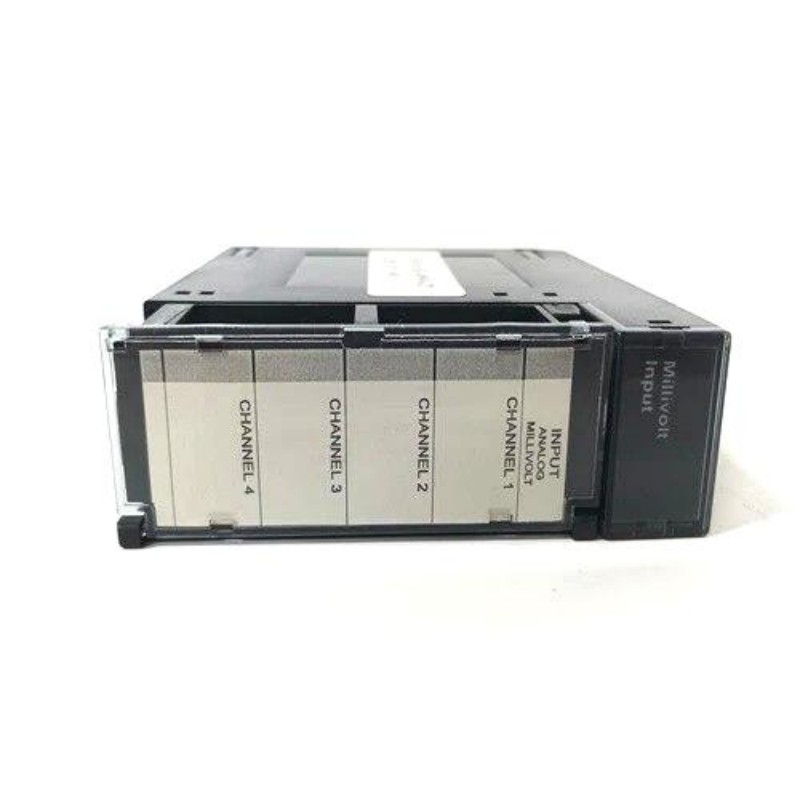

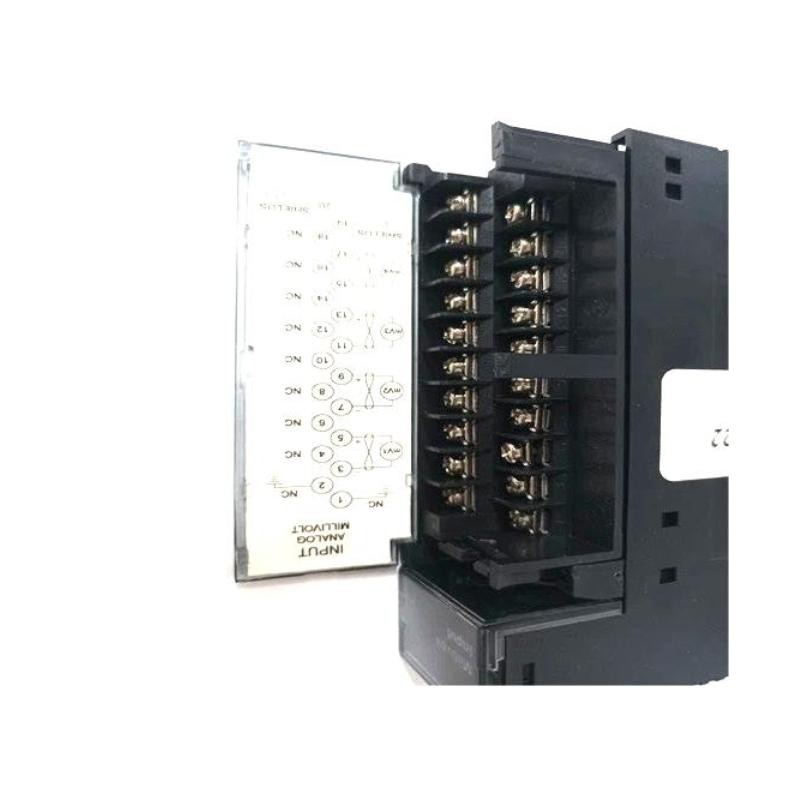

The GE HE693ADC409 Analog Input Module is designed for precise data acquisition and control in industrial automation systems. Ideal for applications in industries such as manufacturing, oil & gas, chemical processing, and power generation, this modular I/O solution ensures the accurate conversion of analog signals from various field devices to digital data for efficient process control and monitoring.

The HE693ADC409 module provides 16 analog inputs, each capable of processing 0-10V or 4-20mA signals, making it versatile and suitable for a variety of sensors, transmitters, and actuators. With its high accuracy, fast sampling rate, and robust diagnostics, this module ensures reliable and real-time data collection for superior control system performance.

The HE693ADC409 seamlessly integrates into GE's PACSystems™ and VersaMax™ systems, offering flexible configuration options and easy system expansion. Its compact design and high signal resolution make it ideal for applications requiring precise analog input in demanding environments.

Technical Specifications

Specification	Details
Model	GE HE693ADC409
Module Type	Analog Input Module
Input Channels	16 Analog Inputs
Input Signal Type	Voltage (0-10V) / Current (4-20mA)
Resolution	16-bit Resolution
Input Range (Voltage)	0-10V
Input Range (Current)	4-20mA
Sampling Rate	Up to 1 kHz per channel
Temperature Range	-40°C to 70°C (-40°F to 158°F)
Power Supply	5V DC (from system power supply)
Dimensions (HxWxD)	4.1" x 2.8" x 3.5" (104 mm x 71 mm x 89 mm)
Weight	0.3 kg (0.66 lbs)
Diagnostics	Built-in status indicators and error diagnostics
Mounting	DIN Rail Mounted
Communication	Supports GE PACSystems™ and VersaMax™ systems

Recommended Related Models

For additional flexibility or alternative configurations, consider these GE models that complement or expand on the features of the HE693ADC409:

GE HE693DMC300 – A digital I/O module designed for controlling discrete inputs and outputs in automated systems, ideal for general-purpose control tasks.
GE HE693PCM701 – A proportional-integral-derivative (PID) control module that integrates seamlessly with HE693ADC409, providing advanced control strategies for continuous processes.
GE IC695ALG800 – A 16-channel analog input module for the VersaMax I/O system, providing 16-bit resolution and extended temperature range for demanding industrial applications.

Popular GE Models

For analog input and automation systems, these GE models are widely used:

GE HE693ADC409 – Provides precise analog input with 16 channels and supports both voltage and current input configurations.
GE PACSystems RX3i – An advanced control system that integrates seamlessly with HE693ADC409 to provide powerful automation and control capabilities.
GE VersaMax I/O – A versatile and modular I/O system that supports a wide variety of input/output modules, including analog, digital, and temperature inputs.

Applications

The GE HE693ADC409 Analog Input Module is ideal for a variety of industrial applications requiring precise data acquisition and signal conversion:

Oil & Gas: Measures pressure, temperature, and flow from various field sensors, providing critical data for upstream and downstream operations.
Chemical Processing: Monitors chemical concentrations, temperature, and pressure in reactors and pipelines to optimize production and maintain safety standards.
Manufacturing: Collects analog sensor data from production lines, enabling the automation of manufacturing processes and ensuring high product quality.
Power Generation: Measures boiler pressures, turbine speeds, and coolant temperatures, allowing operators to monitor plant performance and optimize efficiency.
Water Treatment: Monitors water quality parameters like pH, conductivity, and flow rates in water treatment plants to ensure compliance with environmental standards.

Advantages

High-Resolution Data: The HE693ADC409 offers 16-bit resolution, ensuring high-precision data for accurate process control and monitoring.
Fast Sampling Rate: With a sampling rate of up to 1 kHz per channel, the module provides real-time data for fast response and control in dynamic applications.
Dual Input Types: Supports both voltage (0-10V) and current (4-20mA) signals, making it versatile and compatible with a wide range of industrial sensors and devices.
Robust Diagnostics: Built-in diagnostics and status indicators help quickly identify and resolve any issues with the module or connected devices, minimizing downtime.
Flexible Integration: The module is easily integrated into GE’s PACSystems™ and VersaMax™ automation systems, providing scalability and flexibility for future system expansions.
Compact Design: The HE693ADC409 has a small footprint (104 mm x 71 mm x 89 mm), making it ideal for applications where space is limited, such as in control panels or remote locations.

Technical FAQs
1. How many analog input channels does the HE693ADC409 have?
  The HE693ADC409 has 16 analog input channels, each capable of processing voltage (0-10V) or current (4-20mA) signals.
2. What is the sampling rate of the HE693ADC409?
  The HE693ADC409 has a sampling rate of up to 1 kHz per channel, ensuring fast and accurate data acquisition for real-time control.
3. What types of input signals does the HE693ADC409 support?
  The module supports both voltage (0-10V) and current (4-20mA) inputs, allowing compatibility with a wide range of industrial sensors.
4. What is the resolution of the HE693ADC409?
  The HE693ADC409 provides 16-bit resolution, offering high accuracy for analog-to-digital signal conversion.
5. What is the operating temperature range of the HE693ADC409?
  The HE693ADC409 operates within a temperature range of -40°C to 70°C (-40°F to 158°F), making it suitable for various industrial environments.
6. How does the HE693ADC409 handle diagnostics?
  The module is equipped with built-in diagnostics, including status indicators and error detection, to quickly identify issues and ensure continuous operation.
7. Can the HE693ADC409 be mounted on a DIN rail?
  Yes, the HE693ADC409 is designed for DIN rail mounting, making installation simple and cost-effective.
8. What is the power supply requirement for the HE693ADC409?
  The HE693ADC409 requires a 5V DC power supply, which is provided by the system power.
9. Can the HE693ADC409 be used with GE’s PACSystems™ controllers?
  Yes, the HE693ADC409 is fully compatible with GE PACSystems™ and VersaMax™ automation systems, ensuring seamless integration.
10. What is the weight of the HE693ADC409?
  The HE693ADC409 weighs approximately 0.3 kg (0.66 lbs), which makes it easy to handle and install in control panels.
