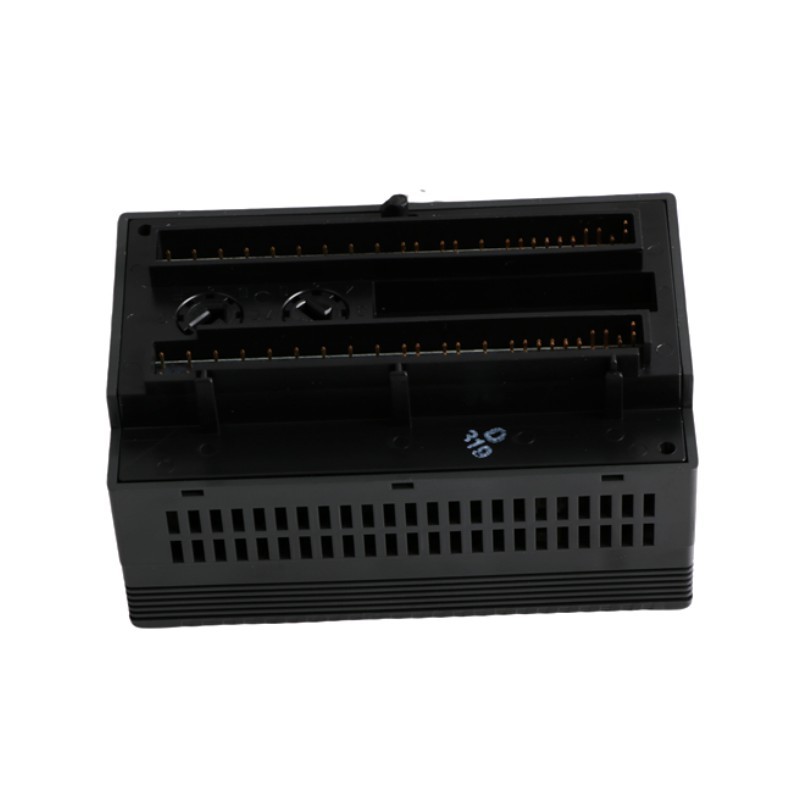

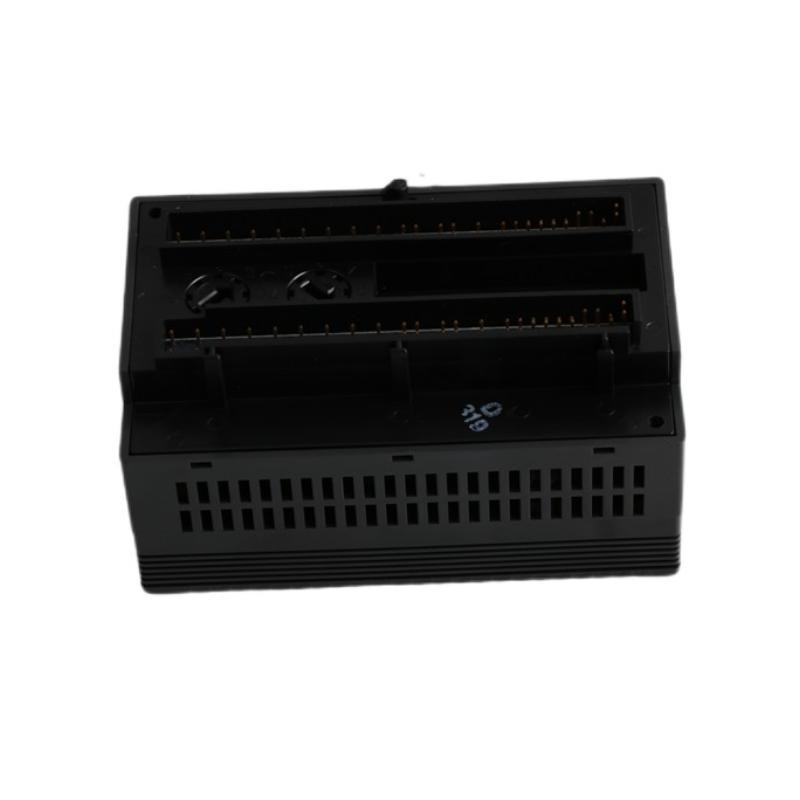

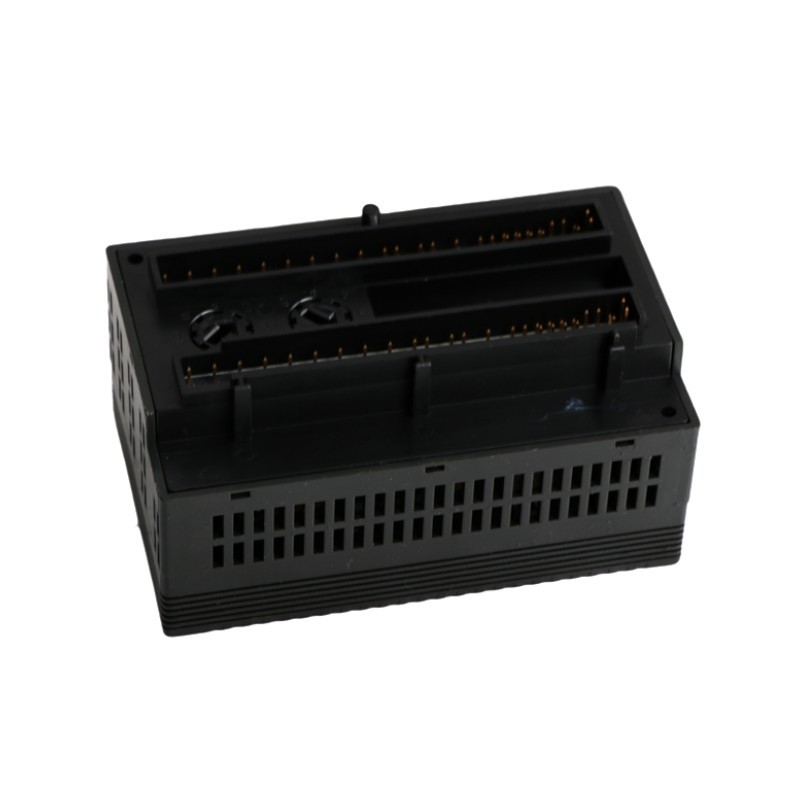

The GE IC200ALG260 Analog Input Module is designed to provide precise and reliable signal acquisition in industrial automation systems. This high-performance module supports 16 single-ended or 8 differential analog input channels, making it ideal for applications that require accurate data from a variety of analog sensors, such as temperature sensors, pressure transducers, and flow meters. Whether you're working with voltage or current signals, the IC200ALG260 ensures your control system receives the correct information to drive effective decision-making.
As part of the GE VersaMax™ I/O system, the IC200ALG260 is easily integrated into GE PACSystems™ controllers, offering scalable and flexible solutions for industrial automation. The module supports 0-10V and 4-20mA signal types, offering excellent compatibility with a wide range of industrial sensors.
The IC200ALG260 is built to withstand harsh environments, making it suitable for a wide range of industries, including manufacturing, chemical processing, oil & gas, and water treatment. Its high accuracy, 16-bit resolution, and low drift characteristics ensure reliable long-term performance, even in demanding applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GE IC200ALG260 |
| Module Type | Analog Input Module |
| Input Channels | 16 Single-Ended or 8 Differential Inputs |
| Input Voltage Range | 0-10V (single-ended), ±10V (differential) |
| Input Current Range | 4-20mA |
| Accuracy | ±0.1% of Full Scale |
| Resolution | 16-bit |
| Sample Rate | 20ms (for 8 differential channels) |
| Isolation | 1500V isolation between inputs and system |
| Dimensions (HxWxD) | 4.1" x 2.8" x 3.5" (104 mm x 71 mm x 89 mm) |
| Weight | 0.3 kg (0.66 lbs) |
| Power Supply | 5V DC (from system power supply) |
| Mounting | DIN Rail Mounted |
| Operating Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Environmental Protection | IP20 (protected from dust and water droplets) |
| Diagnostic Features | Built-in LEDs for status monitoring |
Recommended Related Models
For alternative or extended analog input options, consider the following GE models:
-
GE IC200ALG230A – A 8-channel differential input analog module offering high-density and accurate signal processing for systems with fewer channels.
-
GE IC200ALG330A – A 16-channel analog input module ideal for large systems requiring additional analog inputs and higher flexibility in measurement.
-
GE IC200MDL740 – A digital input module offering a reliable digital I/O solution to complement the IC200ALG260 in mixed input-output applications.
Popular GE Models
The GE IC200ALG260 is frequently used with these popular GE models to create complete automation solutions:
-
GE VersaMax I/O System – A modular I/O system that integrates seamlessly with the IC200ALG260, allowing users to expand their systems flexibly.
-
GE PACSystems RX3i – A robust industrial controller that provides advanced control and monitoring capabilities, integrating well with GE I/O modules like the IC200ALG260.
-
GE VersaMax PLC – The VersaMax PLC is compatible with the IC200ALG260, providing programmable logic control for automated systems.
