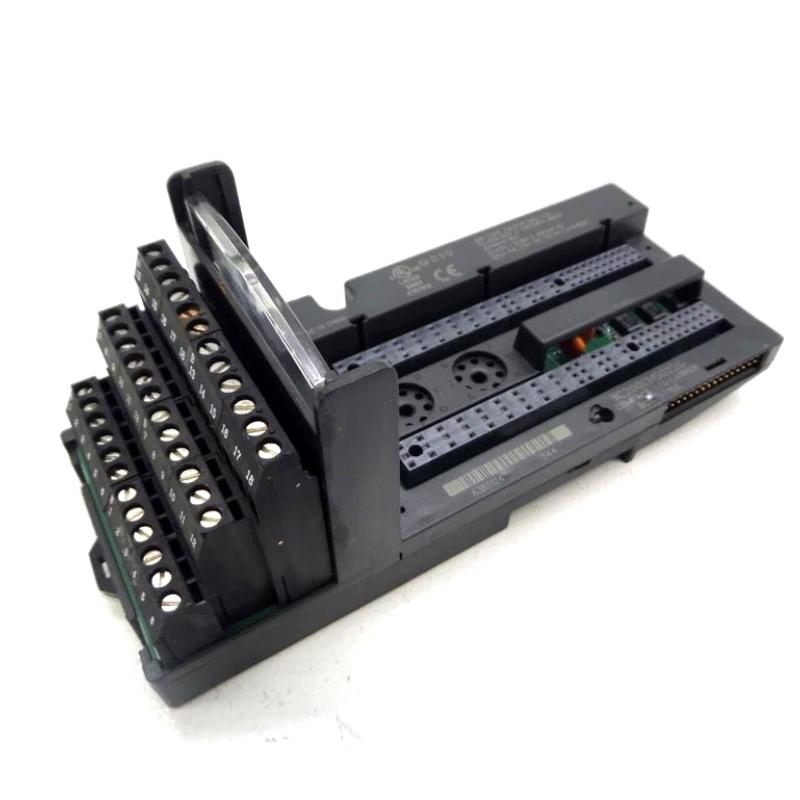

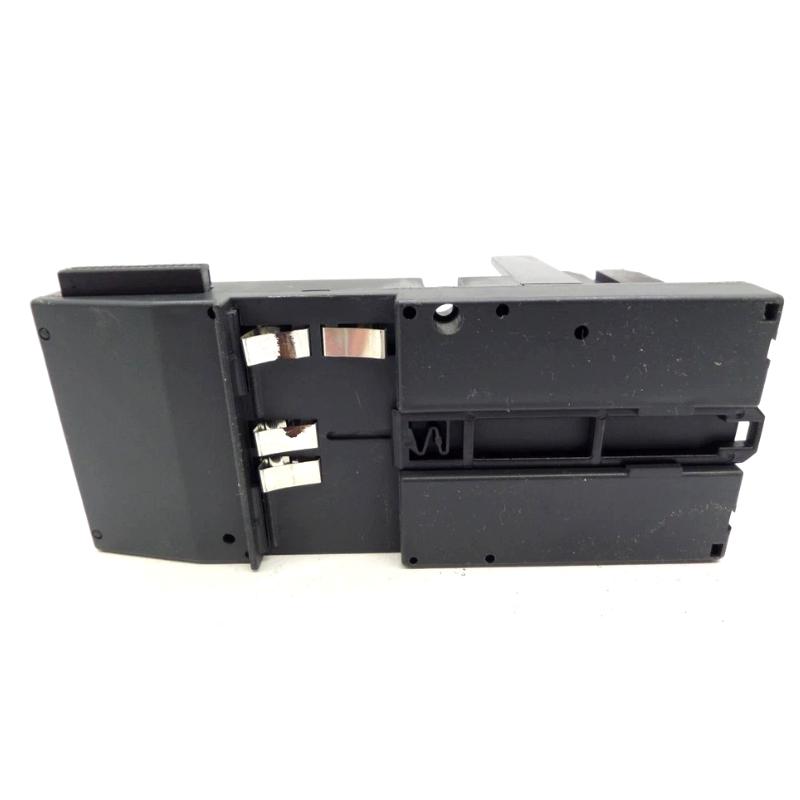

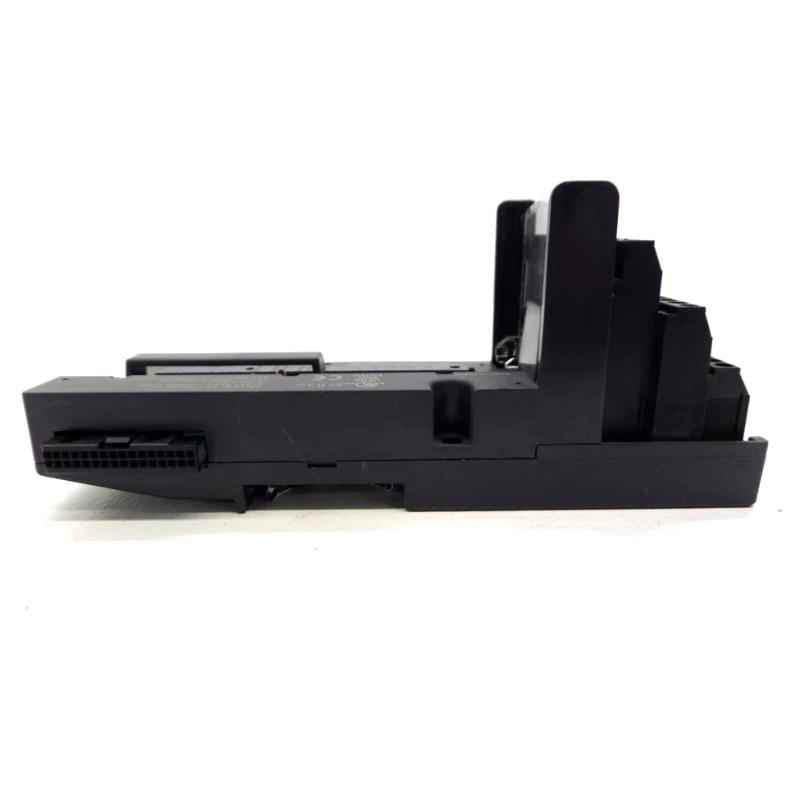

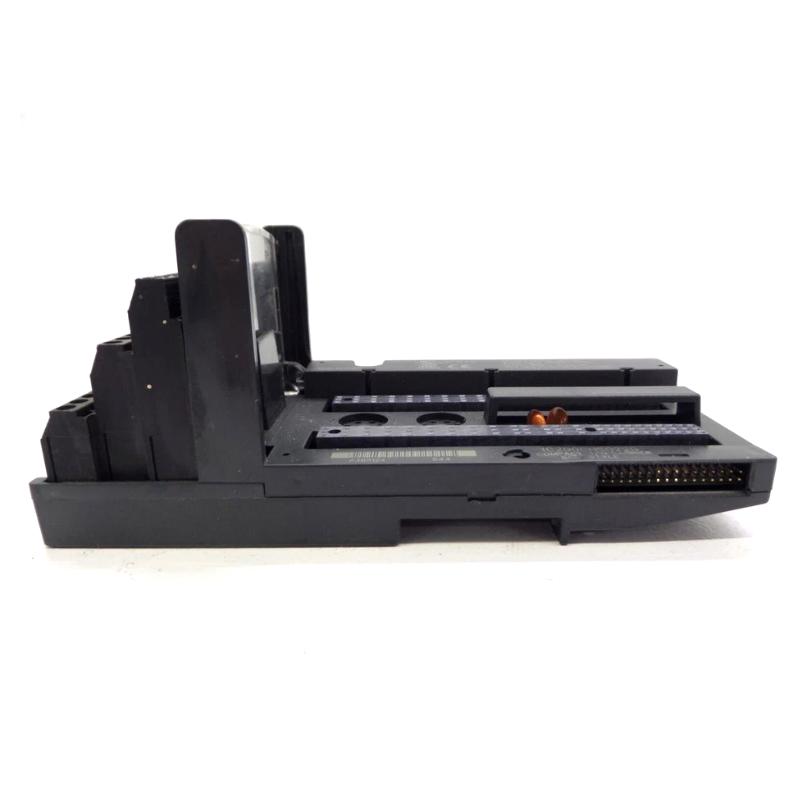

The GE IC200CHS022G is a Control/Status Module designed to enhance communication and provide real-time system diagnostics for industrial automation systems. As part of the VersaMax™ I/O series, the IC200CHS022G plays a critical role in enabling continuous communication between GE PLCs and associated I/O modules, ensuring that operators can monitor the health and status of their control systems at all times.
This IC200CHS022G module provides system status indicators through LED diagnostics, making it easier to detect issues and troubleshoot before they impact the system. Designed for use in industrial environments, the IC200CHS022G is ideal for a wide range of applications, including manufacturing, oil & gas, energy management, and water treatment. It offers a robust solution for monitoring system performance and ensuring reliable communication in critical industrial control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GE IC200CHS022G |
| Module Type | Control/Status Module |
| Function | Provides system status feedback and diagnostics |
| LED Status Indicators | 8 LEDs for system diagnostics and communication status |
| Mounting | DIN Rail Mounted |
| Input/Output Type | Digital I/O (Status signals) |
| Operating Voltage | 24V DC |
| Power Consumption | 5W (max) |
| Dimensions (HxWxD) | 4.1" x 2.8" x 3.5" (104 mm x 71 mm x 89 mm) |
| Weight | 0.3 kg (0.66 lbs) |
| Operating Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Environmental Protection | IP20 (protected from dust and water droplets) |
Recommended Related Models
For additional functionalities or alternative configurations, the following GE models can complement the IC200CHS022G:
-
GE IC200MDL640 – A digital output module offering control signals in VersaMax I/O systems, ideal for applications requiring extensive I/O capabilities.
-
GE IC200CBM002 – A base module for the VersaMax system, which is essential for I/O configuration and management.
-
GE IC200CHS002 – A basic communication/status module suitable for smaller setups requiring fundamental diagnostics and system status feedback.
Popular GE Models
The GE IC200CHS022G integrates well with GE PLC systems to provide high reliability in data exchange and system health monitoring:
-
GE VersaMax I/O System – The IC200CHS022G is part of the VersaMax I/O system, known for its modular and scalable I/O configurations for industrial applications.
-
GE PACSystems RX3i – A high-performance industrial controller that, when paired with the IC200CHS022G, ensures advanced diagnostics and real-time system communication.
-
GE VersaMax PLC – A flexible and cost-effective PLC, perfect for integration with the IC200CHS022G to support system diagnostics and communication monitoring.
