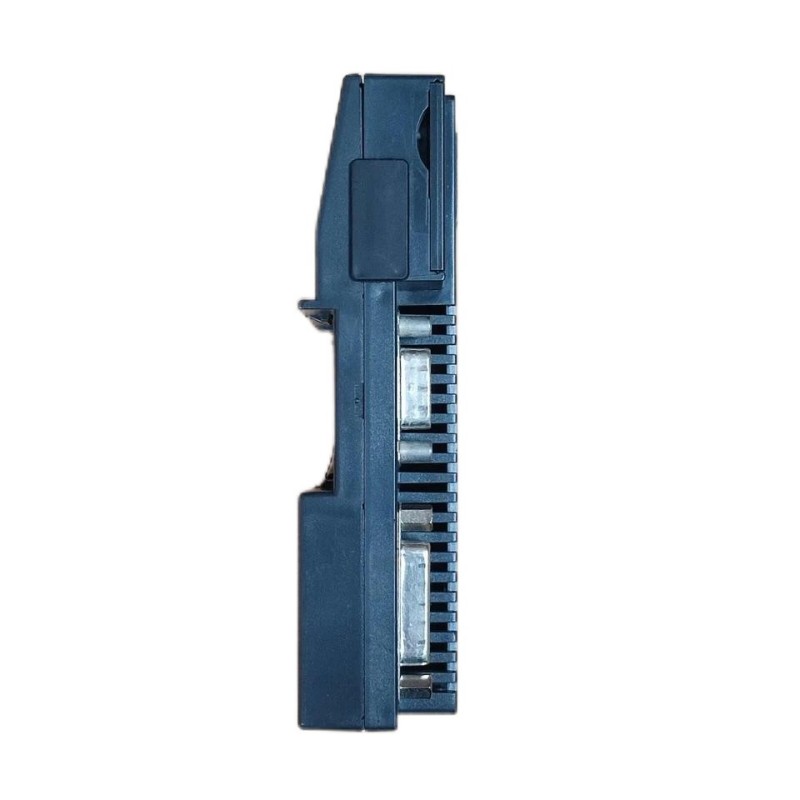

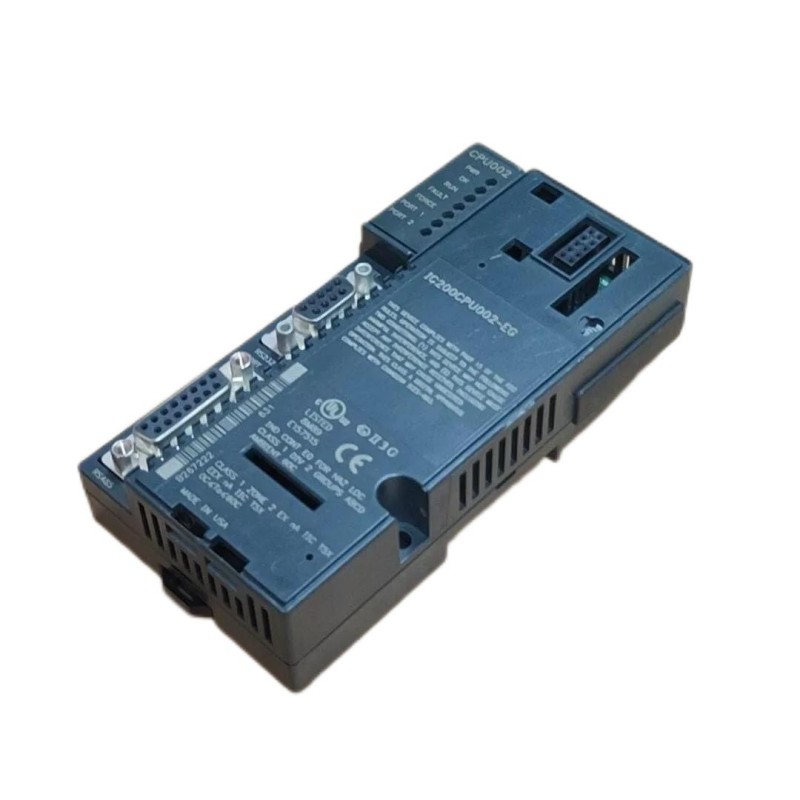

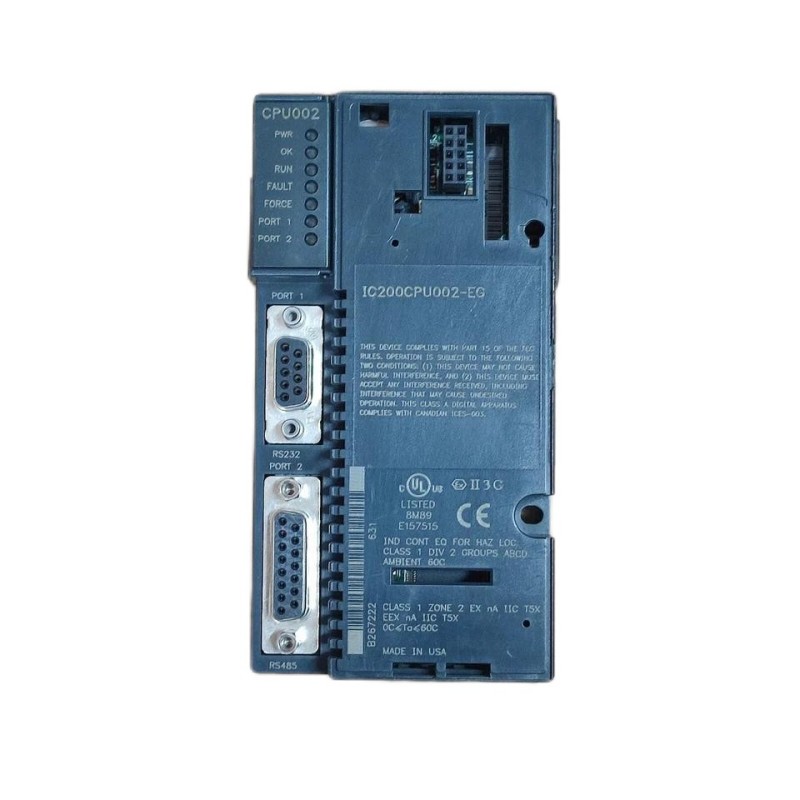

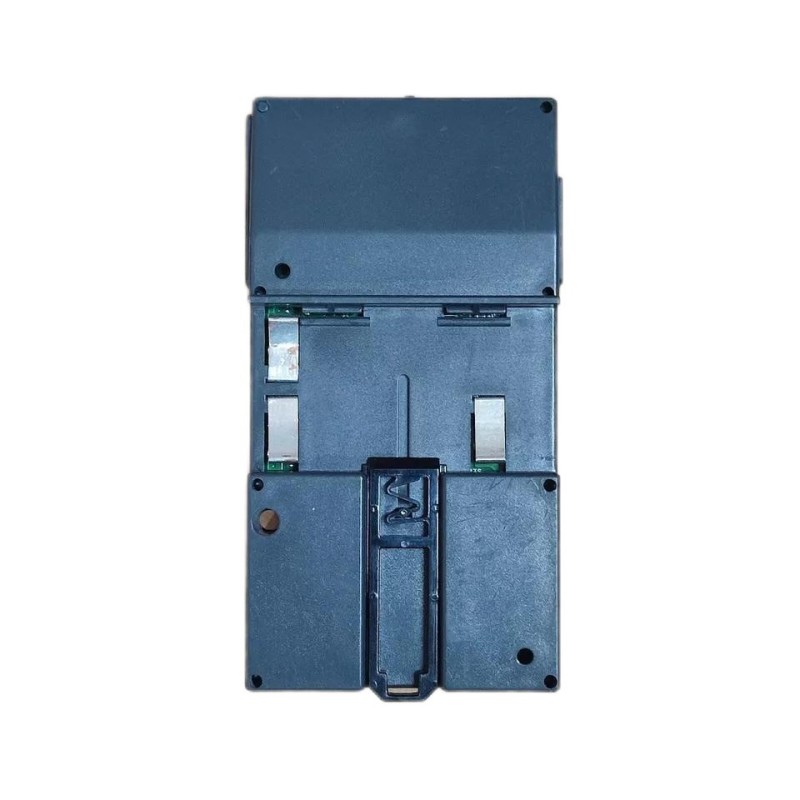

The GE IC200CPU002-EG is a VersaMax PLC CPU, offering advanced control and processing power for industrial automation applications. As part of the VersaMax I/O system, the IC200CPU002-EG is designed to manage complex control processes, providing high-speed processing, flexible communication options, and modular scalability. This versatile CPU supports a wide range of industrial systems and applications, from manufacturing and packaging to oil & gas, chemical processing, and energy management.

With its compact design, the IC200CPU002-EG offers a flexible and cost-effective solution for a variety of control systems, particularly in environments where space is limited but performance demands remain high. It supports multiple communication protocols and I/O configurations, making it easy to integrate into existing control systems or to expand capabilities as your automation needs grow.

Technical Specifications

Specification	Details
Model	GE IC200CPU002-EG
Module Type	CPU (Central Processing Unit)
Function	Controls and processes input/output operations for industrial systems
Processor	32-bit Processor, 200 MHz
Memory	1MB Flash Memory for program storage
Communication	Supports Modbus RTU, Modbus TCP, and Ethernet communication
I/O Capacity	Modular, scalable I/O options
Operating Voltage	24V DC
Power Consumption	5W (max)
Dimensions (HxWxD)	4.1" x 2.8" x 3.5" (104 mm x 71 mm x 89 mm)
Weight	0.3 kg (0.66 lbs)
Operating Temperature Range	-40°C to 70°C (-40°F to 158°F)
Environmental Protection	IP20 (protected from dust and water droplets)
Input/Output	Digital I/O via modular expansion units
Communication Ports	Ethernet, RS-232, RS-485
Scalability	Supports up to 16 I/O modules and up to 1,000 I/O points

Recommended Related Models

For extended capabilities or different configurations, these GE models are recommended to complement the IC200CPU002-EG:

GE IC200MDL640 – A digital output module for controlling industrial devices, compatible with VersaMax I/O systems.
GE IC200ALG260 – An analog input module that enables the control system to process analog signals, ideal for use in control loops or sensor-based applications.
GE IC200CHS002 – A communication/status module that facilitates integration with Modbus-compatible systems, enabling data exchange and diagnostics.

Popular GE Models

The GE IC200CPU002-EG integrates seamlessly with other GE automation systems, including:

GE VersaMax I/O System – The IC200CPU002-EG is the heart of the VersaMax I/O system, enabling seamless control and communication with remote I/O modules.
GE PACSystems RX3i – A high-performance programmable automation controller (PAC) designed for advanced industrial applications, benefiting from the communication and control capabilities of the IC200CPU002-EG.
GE VersaMax PLC – Provides flexible and scalable control solutions that integrate with VersaMax I/O modules to build tailored automation systems.

Applications

The GE IC200CPU002-EG is well-suited for industrial sectors that require high-speed, reliable control and communication, including:

Manufacturing Automation: Monitors and controls assembly lines, robotic arms, and conveyor systems, ensuring operational efficiency and reducing downtime.
Oil & Gas: Controls pumps, valves, and sensors, facilitating remote monitoring and data collection in oil rigs or pipeline operations.
Energy Management: Monitors power plants, transformers, and electrical distribution systems, ensuring stable operations and energy optimization.
Chemical Processing: Handles flow control, temperature monitoring, and chemical dosing in production facilities, ensuring safety and precision in chemical processes.
Water Treatment: Controls water filtration systems, chemical dosing, and pumps, ensuring consistent water quality and treatment efficiency.
Food & Beverage: Manages production lines, batch processing systems, and packaging units, ensuring high-quality production while adhering to strict regulatory standards.

Advantages

High-Speed Processing: The 32-bit processor running at 200 MHz ensures fast response times and efficient control in high-speed processes, minimizing delays in automation systems.
Modular and Scalable Design: The IC200CPU002-EG is compatible with up to 16 I/O modules and 1,000 I/O points, allowing you to expand your system as your needs grow.
Flexible Communication Options: Supports multiple communication protocols, including Modbus RTU, Modbus TCP, and Ethernet, enabling smooth data exchange with other devices in the system.
Wide Operating Temperature Range: Operates in extreme temperatures, from -40°C to 70°C, making it ideal for use in harsh industrial environments.
Compact Size: The DIN rail mountable form factor saves valuable space in control panels or equipment racks, providing a streamlined solution for automation systems.
Energy-Efficient: The low power consumption (maximum of 5W) ensures energy savings without sacrificing performance.
Easy Integration: Easily integrates into VersaMax I/O systems and works with a variety of third-party devices, providing a versatile solution for complex automation needs.
Reliability: With its IP20 environmental protection rating, the module is protected from dust and water droplets, ensuring reliable operation in typical industrial environments.
