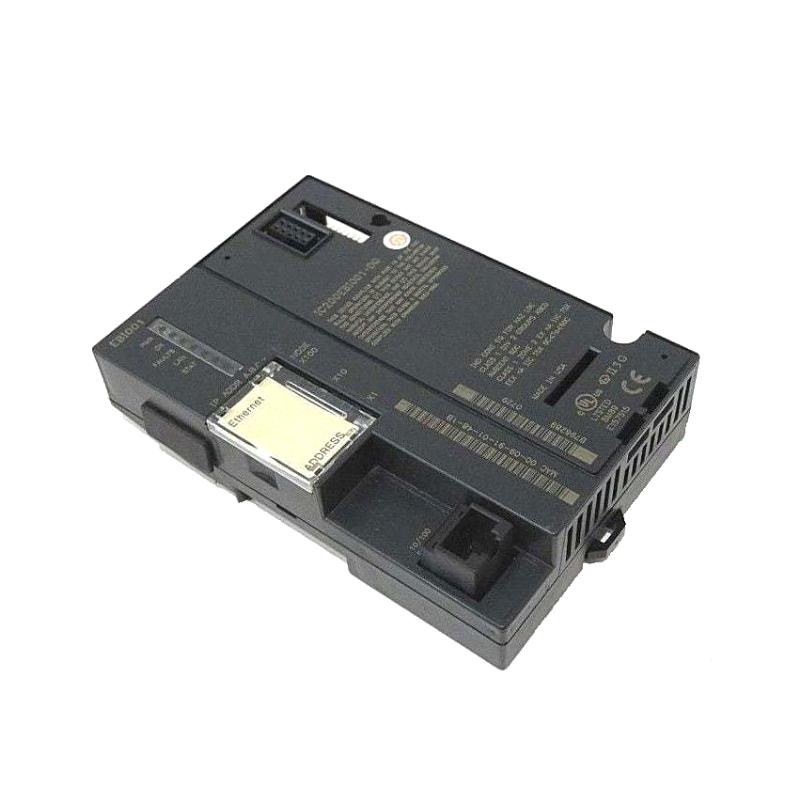

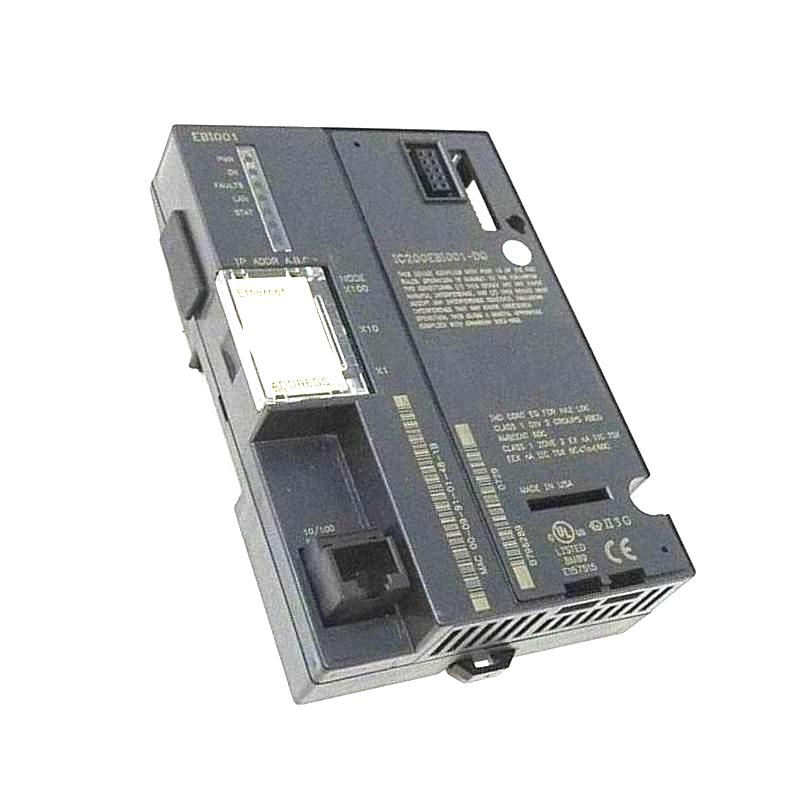

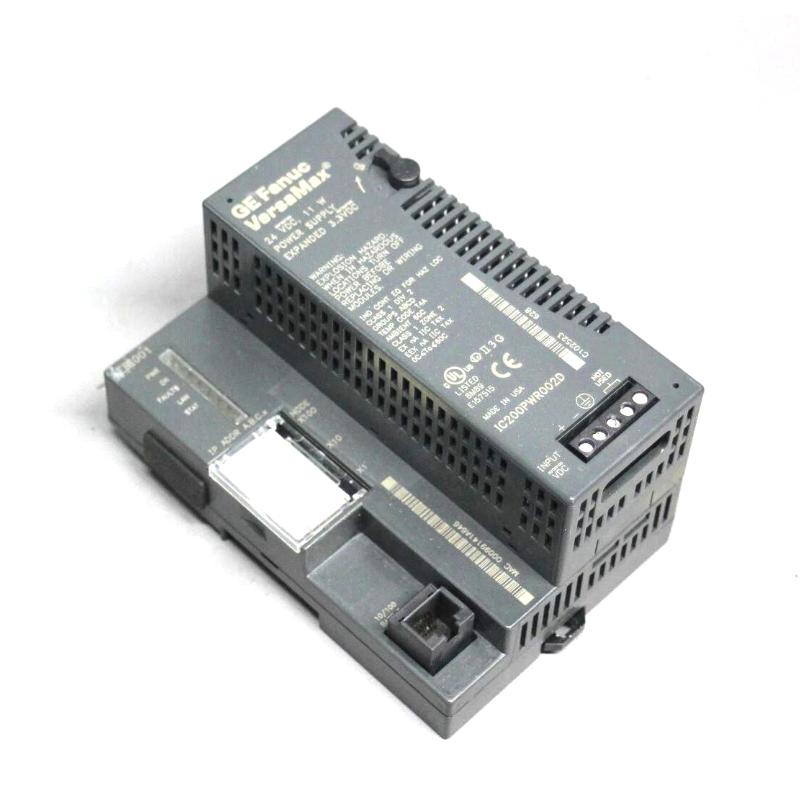

The GE IC200EBI001-DE I/O Module is an essential expansion module designed for use with GE’s Versamax PLCs, delivering seamless integration for additional digital I/O points. Whether you’re working in small, medium, or large automation systems, this module expands the capacity of your existing setup, providing reliable and precise control over digital inputs and outputs. Built for industrial environments, the IC200EBI001-DE is engineered for fast, efficient operation, making it an ideal choice for applications in manufacturing, material handling, and process control. With its plug-and-play functionality, ease of installation, and flexible configuration options, this module enhances the overall performance of your automation system.

Technical Specifications

Model: IC200EBI001-DE
Type: Digital I/O Expansion Module
I/O Type: 24V DC digital inputs and outputs
Input Points: 16 digital inputs
Output Points: 16 digital outputs (sinking/sourcing)
Input Voltage: 24V DC
Operating Voltage: 24V DC
Power Consumption: 50mA @ 24V DC
Communication Interface: Direct connection to the Versamax CPU module
Dimensions: 4.75" x 3.85" x 3.5" (121 mm x 98 mm x 89 mm)
Weight: 0.6 lbs (0.27 kg)
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95%, non-condensing

Recommended Related Models

For expanding the capabilities of your system or adding more I/O flexibility, consider these complementary models:

IC200PWR001: Power supply module for ensuring stable operation across the system.
IC200MDL640: Digital I/O module for controlling additional discrete devices.
IC200ALG260: Analog I/O module for managing analog input and output signals.
IC200CMM002: Communication module for Modbus and Ethernet network compatibility.

Popular GE PLC Models

The GE Versamax series includes various models that offer scalable control solutions for different industrial applications. Some of the most commonly used PLC models are:

IC200CPUE06: High-performance CPU with advanced communication features and larger I/O capacity.
IC200CPUE05-LT: A versatile, cost-effective CPU for smaller automation applications.
IC200MDL740: Digital I/O module designed to support more robust systems with higher I/O point requirements.

Applications

The GE IC200EBI001-DE I/O Module is perfect for expanding I/O capacity in a wide range of applications:

Manufacturing Automation: Managing digital inputs from sensors and outputs to actuators in production lines.
Packaging Systems: Controlling packaging machinery, conveyor belts, and automated sorters.
Material Handling: Integrating digital sensors and actuators in conveyor and sorting systems for enhanced throughput.
Building Automation: Used for controlling lights, HVAC systems, and other building utilities through digital I/O operations.

Advantages

Cost-Effective Expansion: Provides an affordable way to add more I/O points to your existing Versamax PLC system.
Scalable Design: Can be easily integrated with additional modules to accommodate future growth in your system.
Robust Performance: Built to withstand the demands of industrial environments, offering reliable, continuous operation.
Simple Installation: The module's plug-and-play design makes installation quick and hassle-free.
Flexible I/O Configuration: With 16 inputs and 16 outputs, the module supports a variety of industrial applications and control schemes.

Technical FAQs

How many I/O points can be expanded with this module?
The IC200EBI001-DE provides 16 digital input points and 16 digital output points.
What is the voltage requirement for this I/O module?
The module operates with a 24V DC input voltage.
Can this module be used with other GE PLCs?
The IC200EBI001-DE is specifically designed for use with the GE Versamax PLC series.
What type of digital inputs and outputs does the module support?
It supports both sinking and sourcing digital outputs and standard digital inputs.
How is this I/O module connected to the PLC system?
The module connects directly to the Versamax CPU module for communication and control.
What programming software is compatible with this module?
You can program the module using Proficy Machine Edition, which is GE’s software platform for Versamax PLC systems.
What is the maximum current consumption of this module?
The module typically consumes 50mA at 24V DC.
Is this I/O module suitable for harsh environments?
Yes, it operates within a temperature range of 0°C to 60°C and is designed for typical industrial environments.
Can this module be used in safety-critical applications?
While the IC200EBI001-DE offers reliable performance, for safety-critical applications, it is recommended to evaluate specific safety-rated modules.
How do I expand my I/O capacity beyond the 16 inputs and 16 outputs?
You can expand your system by adding more I/O modules, as the Versamax PLC series supports multiple expansion modules for increased capacity.
