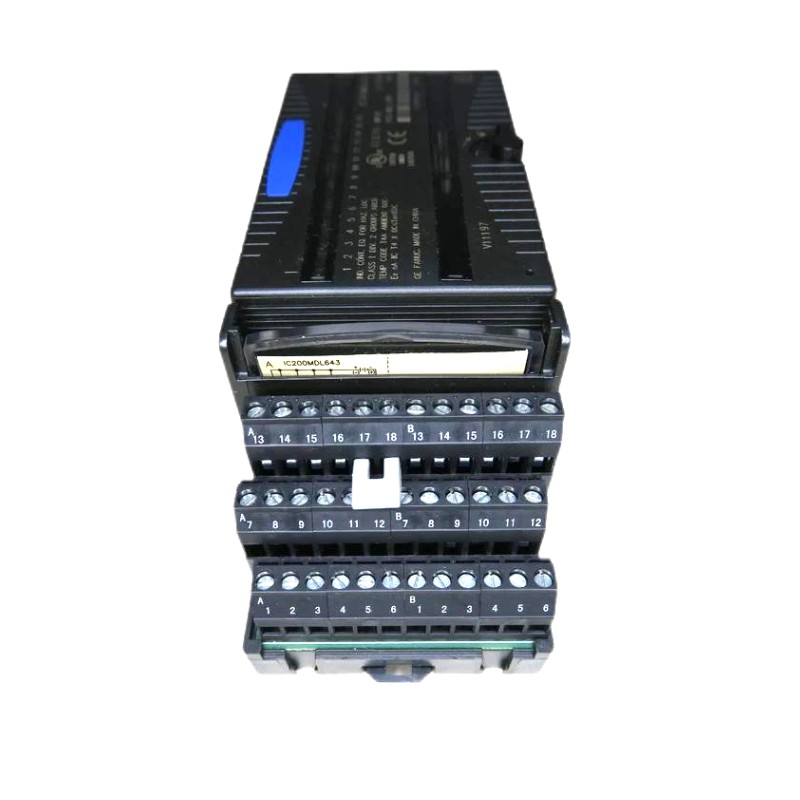

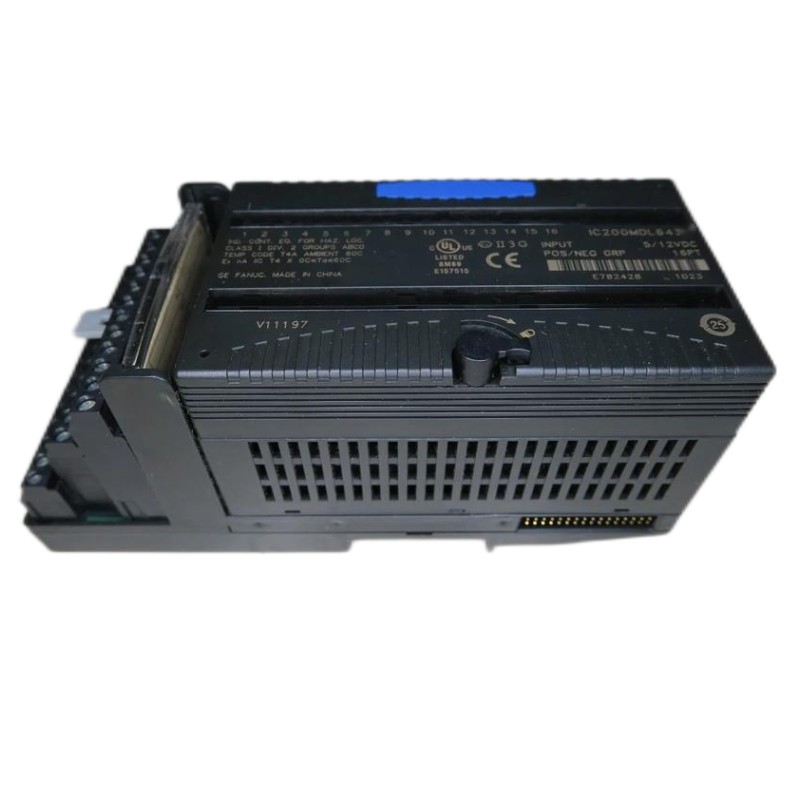

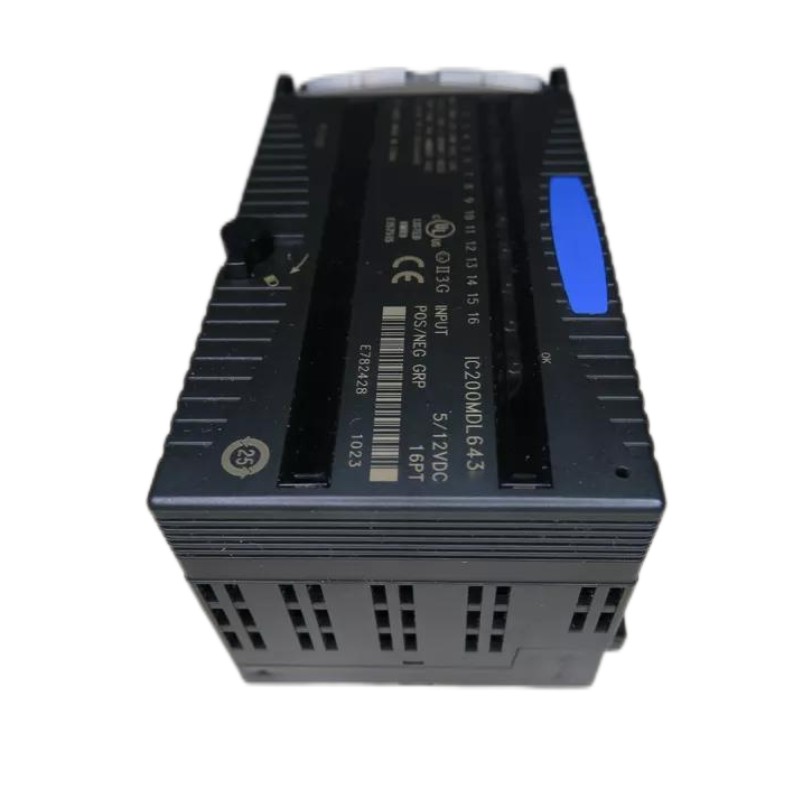

The GE IC200MDL643A Digital Input Module is a high-performance 16-point input module designed specifically for use with the VersaMax PLC system. It features 24 VDC input voltage, NPN sinking type inputs, and provides reliable and precise signal reading for a variety of industrial applications. With 16 input points per module, the IC200MDL643A is ideal for applications where moderate I/O density is required. This module can read signals from sensors, switches, or other field devices, ensuring seamless integration into complex automation systems. Whether used in process control, machine control, or factory automation, this module offers the flexibility and performance needed for high-efficiency operations.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | IC200MDL643A |
| Module Type | Digital Input Module |
| Input Voltage | 24 VDC (nominal) |
| Input Type | Sinking (NPN) |
| Inputs per Module | 16 (16 points, single channel) |
| Nominal Input Current | 5 mA per input |
| Dimensions (W x D x H) | 3.7 x 3.1 x 5.0 inches (94 x 79 x 127 mm) |
| Weight | 0.5 lbs (0.23 kg) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Mounting | Snap-on to the VersaMax I/O rack |
| Status Indicators | LED indicators for input status |
Recommended Related Models
For a more comprehensive solution, consider integrating these complementary modules with the GE IC200MDL643A:
-
GE IC200MDL643: 32-point version of the digital input module for higher-density applications.
-
GE IC200MDL740: Digital Output Module for controlling relays and actuators based on input signals.
-
GE IC200CMM002: Communication Module for linking the VersaMax PLC system with remote networks or devices.
-
GE IC200CHS002: High-Speed Counter Module for precise counting of fast pulses or signals.
These models allow you to tailor your VersaMax PLC system to your specific automation and control needs.
Popular GE Models
-
IC200PWR001: Power Supply Module that ensures consistent and reliable power for your VersaMax PLC setup.
-
IC200ERM001: Ethernet Communication Module enabling reliable network communications for remote control and monitoring.
-
IC200MDL740: A digital output module providing precise control of actuators, solenoids, and other devices.
-
IC200UDR001: A Universal Digital Relay Module for handling diverse relay-based tasks within control systems.
These complementary modules help ensure full flexibility and compatibility with the IC200MDL643A, enhancing the overall capabilities of your control system.
