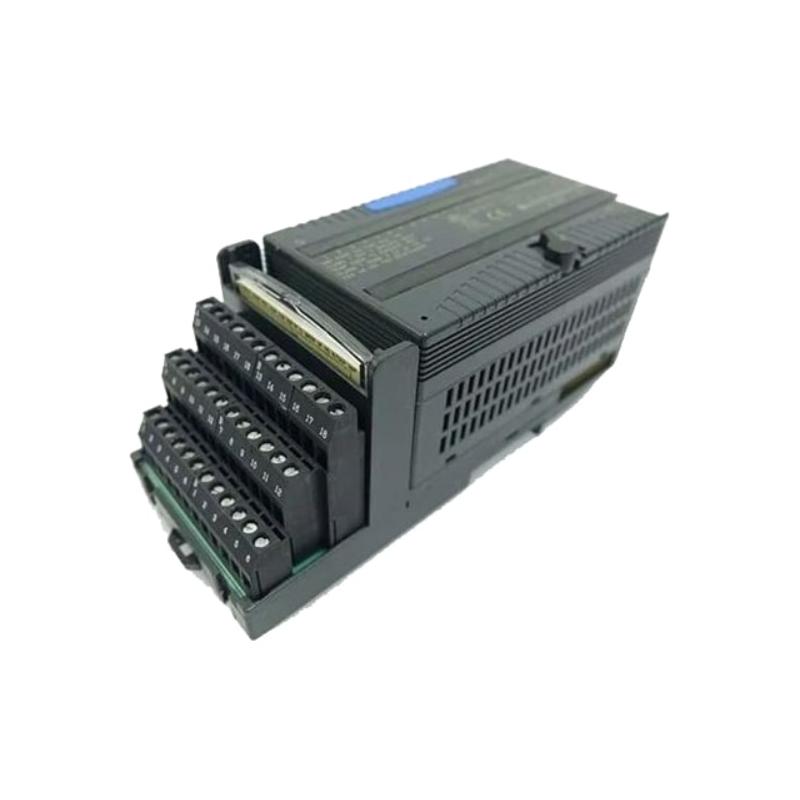

The GE IC200MDL741B is a robust and versatile 24 V DC positive logic discrete output module engineered for VersaMax distributed I/O platforms. As an enhanced revision (Series B) of the well-established IC200MDL741, it delivers consistent and reliable switching performance across multiple field devices in industrial control environments. With built-in protections and clear status indicators, this module strikes a balance between performance and ease of use — ideal for OEM machinery and factory automation installations that require both precision and durability.

Technical Specifications

Parameter	Description
Module Type	Discrete Output Module
Logic Type	Positive (Sourcing)
Output Points	16 discrete outputs
Rated Voltage	24 V DC nominal
Operating Voltage Range	18 – 30 V DC
Load Current per Point	0.5 A max
Inrush Capability	Up to 2.0 A for 100 ms
LED Status Indicators	Per output + FLD PWR + OK
Electrical Isolation	No individual channel isolation
External Power Required	Yes (field power)
Mounting	DIN rail compatible
Approx. Dimensions (H × W × D)	~100 × 70 × 50 mm (Typical I/O module form factor)
Approx. Weight	~0.11 kg (0.25 lbs)
Module Identifier	FFFF8080

Note: Exact mechanical dimensions should be verified with official GE/Emerson documentation for panel design and cabinet layout.

Recommended Related Modules

Model	Description
IC200MDL730	24 V DC discrete output module, 8 points, high current
IC200MDL740	Standard 16-point 24 V DC output module
IC200MDL742	32-point 24 V DC discrete output module
IC200PWR001	VersaMax power supply unit for I/O stations

Popular GE Automation & Control Models

Product Category	Representative Models
CPU Controllers	IC200CPU001, IC200CPU002
Advanced PACs	IC695CPU310, IC695CPU320
I/O Expansion	IC200CHS022, IC200CHS044
Mixed I/O Modules	IC200MDD840, IC200MDD842

Applications

The IC200MDL741B excels in industrial automation tasks where controlled switching of DC loads is required. Typical use cases include:

Driving small contactors, solenoids, and indicator lamps
Actuating panel devices and auxiliary relays
Controlling conveyor and material handling subsystems
Machine tool automation and logic output sequences

Its flexible voltage range and robust design make it suitable for manufacturing, packaging, and process control systems.

Advantages

Enhanced protection with electronic short circuit and overcurrent mechanisms to safeguard output points
Compact and modular design that integrates seamlessly with VersaMax I/O carriers
Clear LED feedback for rapid diagnostics and field service
Broad voltage range accommodates industrial DC buses from 18 V to 30 V
Proven reliability in demanding automation environments

Technical FAQs

What type of module is the IC200MDL741B?
It is a positive logic discrete output module with 16 sourcing outputs.
Does this module need an external power supply?
Yes — external field power is required to switch outputs.
Is each output individually isolated?
No, individual channel isolation is not provided.
What is the maximum current per output point?
Each output can deliver up to 0.5 A under normal conditions.
Can the outputs handle inductive loads?
Yes, with free-wheeling diodes and overcurrent protection built in.
What indicator lights are available?
Each output has an LED plus “OK” and “FLD PWR” status LEDs.
Is this module hot-swappable?
Like many VersaMax modules, it supports installation while powered, but safe practices recommend powering down when possible.
What is the expected operating voltage range?
The module functions across 18 – 30 V DC, with 24 V DC nominal.
Where is this module typically mounted?
It installs on a DIN rail within standard industrial control cabinets.
Is the IC200MDL741B compatible with VersaMax PLC CPUs?
Yes, it integrates seamlessly with the VersaMax distributed I/O system.
