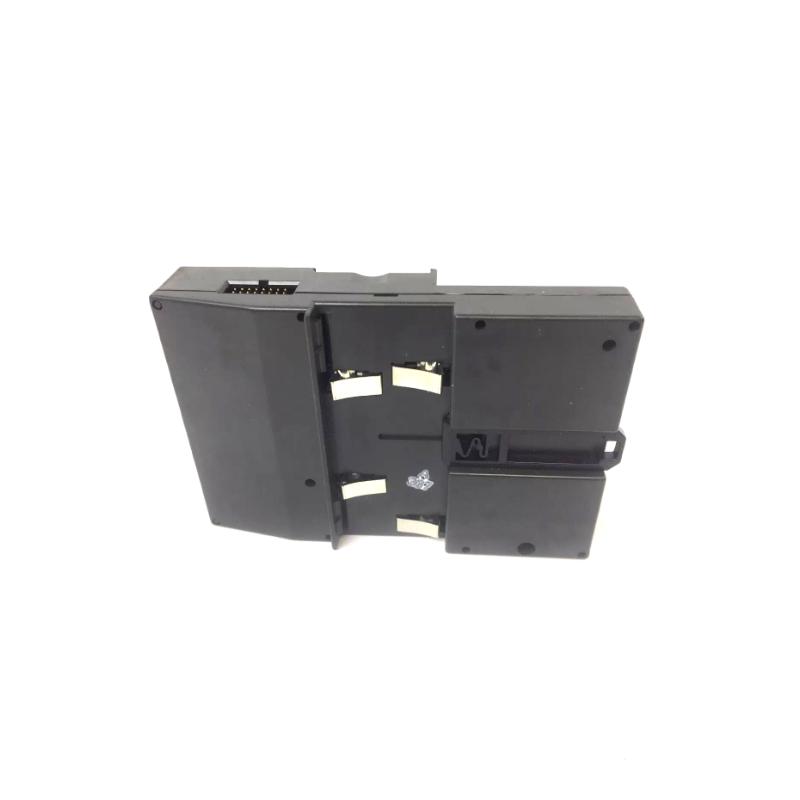

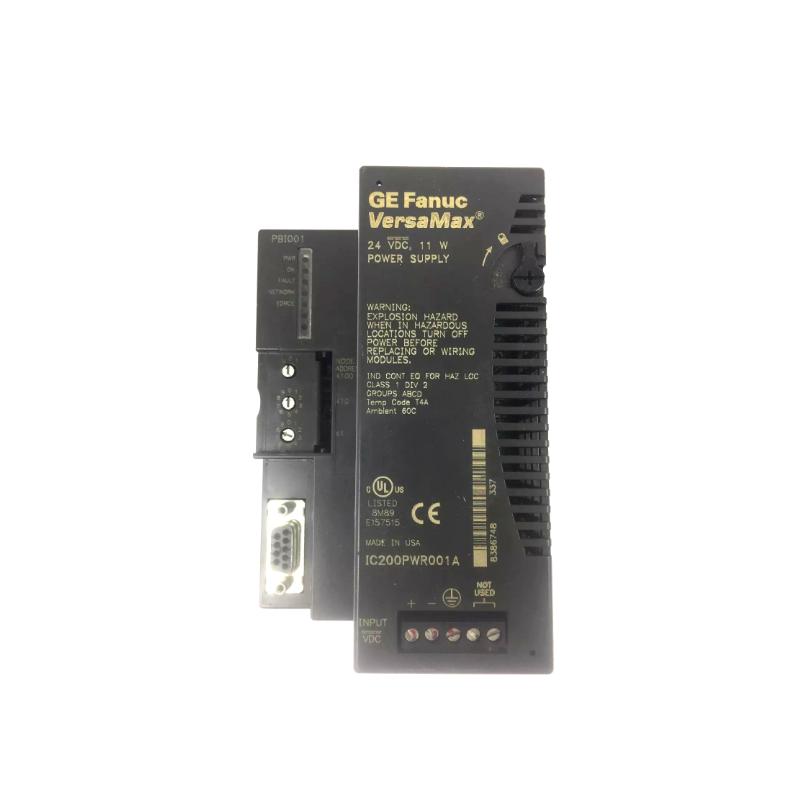

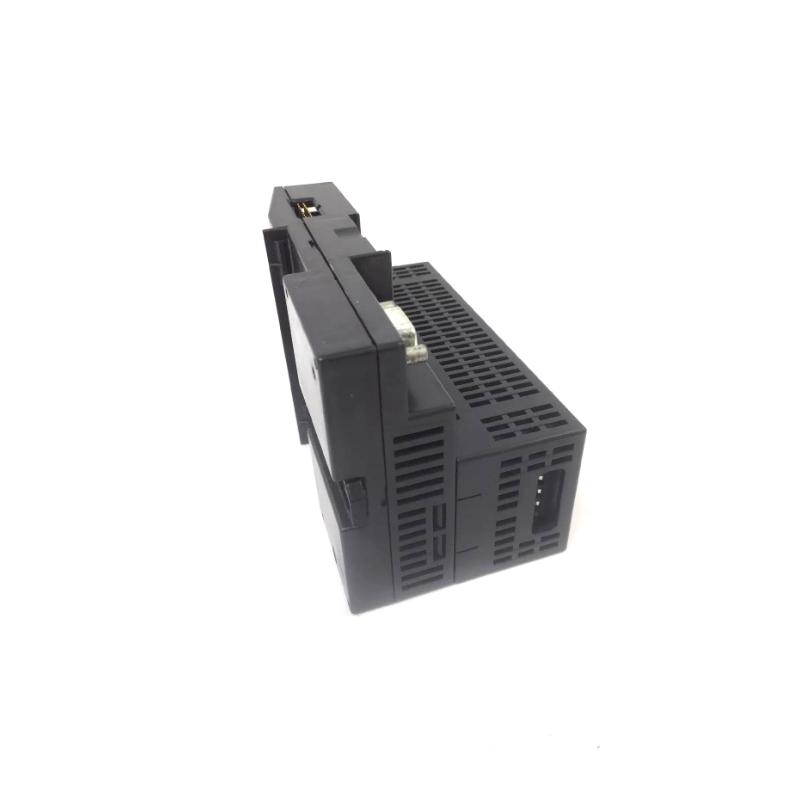

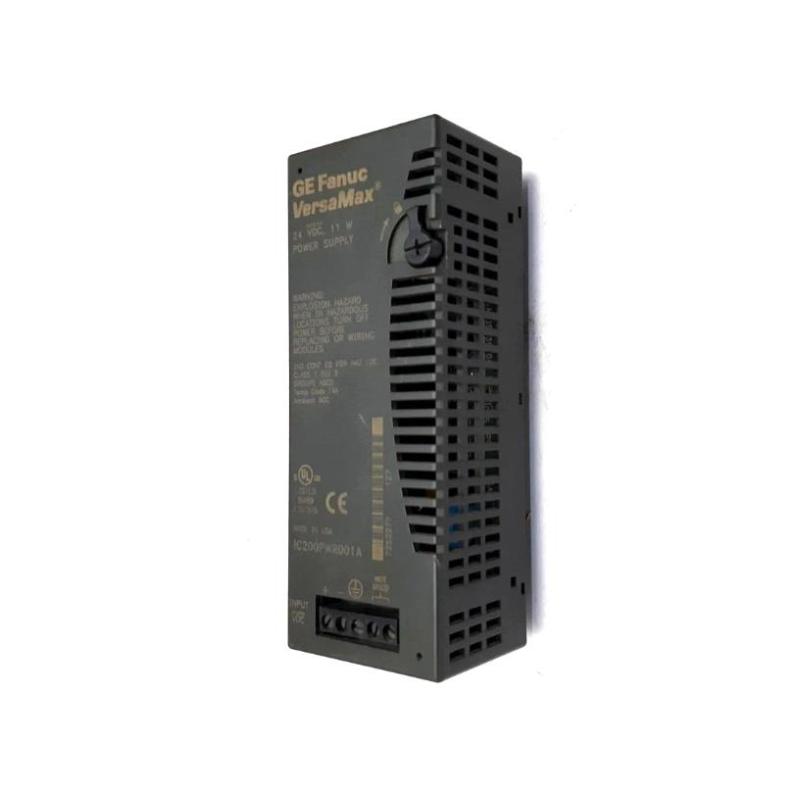

The GE IC200PWR001A is an industrial-grade DC power supply module designed to provide stable and regulated voltages to GE VersaMax PLC systems, including CPUs, NIUs, and distributed I/O. As a Series A revision of the well-established IC200PWR001 power supply family, this unit delivers precision dual outputs (5 V and 3.3 V) with robust protection and reliable performance in demanding automation environments. Its compact build, elevated component durability, and integrated safeguards make it an excellent choice for OEM control cabinets and machine automation projects where consistent logic power is critical.
Technical Specifications
| Parameter | Description |
|---|
| Module Type | DC Power Supply Module |
| Model | IC200PWR001A (Series A) |
| Input Voltage | 18 – 30 V DC (24 V DC nominal) |
| Output Voltages | 5 V DC and 3.3 V DC regulated |
| Total Output Current | Up to 1.5 A max (combined) |
| 5 V Output Current | Up to 1.25 A |
| 3.3 V Output Current | Up to 0.25 A |
| Holdup Time | Approx. 10 ms |
| Inrush Current | ~20 A at 24 V DC |
| Protection Features | Short-circuit, overload, reverse polarity |
| Mounting | VersaMax backplane / DIN-rail carrier compatible |
| Approx. Dimensions (L×W×H) | ~114.3 × 76.2 × 38.1 mm (~4.5″×3″×1.5″) |
| Approx. Weight | ~0.68 kg (1.5 lbs) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
Recommended Related Models
| Model | Description |
|---|
| IC200PWR001 | Standard 24 V DC power supply (multi-revision) |
| IC200PWR101 | AC/DC input power supply for VersaMax systems |
| IC200PWR002 | Expanded 3.3 V output power supply |
| IC200PWB001 | Power supply booster carrier |
Popular VersaMax System Components
| Category | Representative Models |
|---|
| PLC CPUs | IC200CPU001, IC200CPU002 |
| Network Interfaces | IC200ETH001, IC200PNS001 |
| Output Modules | IC200MDL741B, IC200MDL742H |
| Input Modules | IC200MDL640, IC200MDL650 |
Applications
The IC200PWR001A serves as the primary logic power source in VersaMax PLC racks and distributed I/O arrays. It is commonly deployed in:
-
Compact automation panels and machine control cabinets
-
Conveyor and material handling system controls
-
Distributed I/O systems with booster power requirements
-
OEM control solutions requiring regulated 5 V and 3.3 V logic supply
By delivering consistent low-voltage power for PLC logic and peripherals, the module helps ensure stable system operation and minimizes control faults related to power fluctuations.
