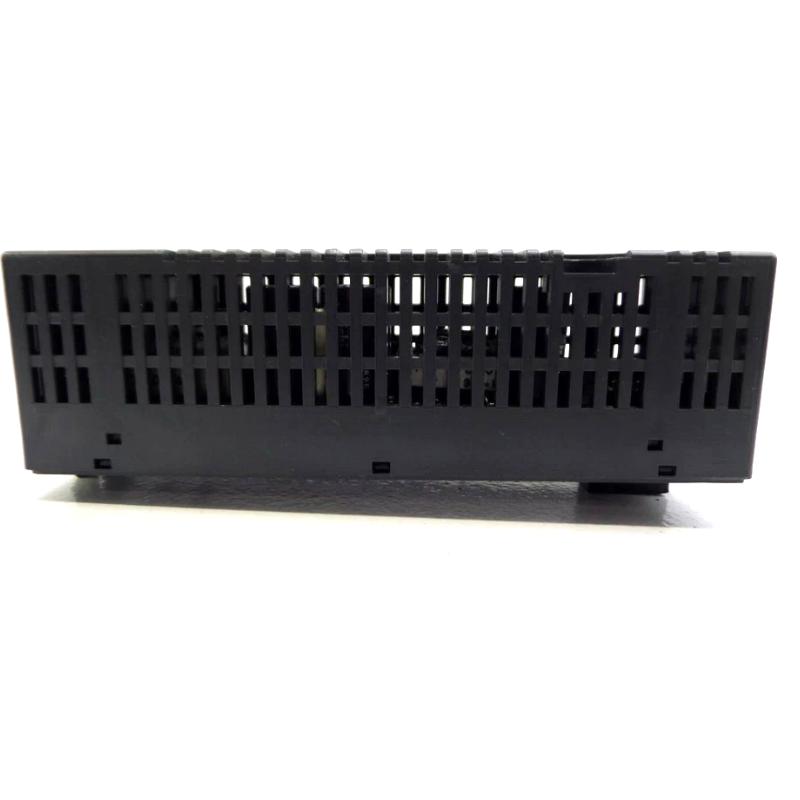

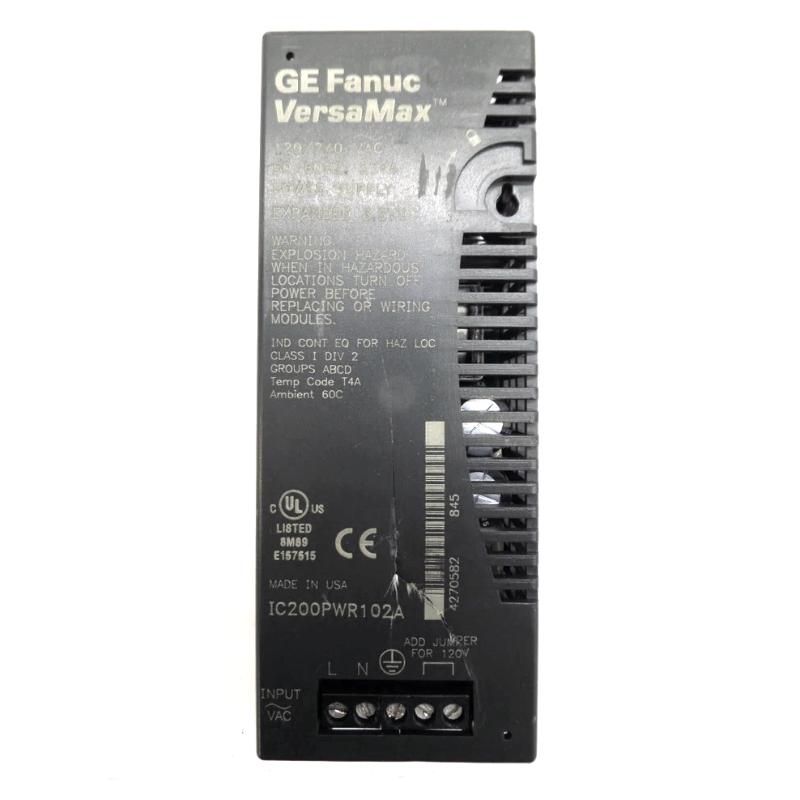

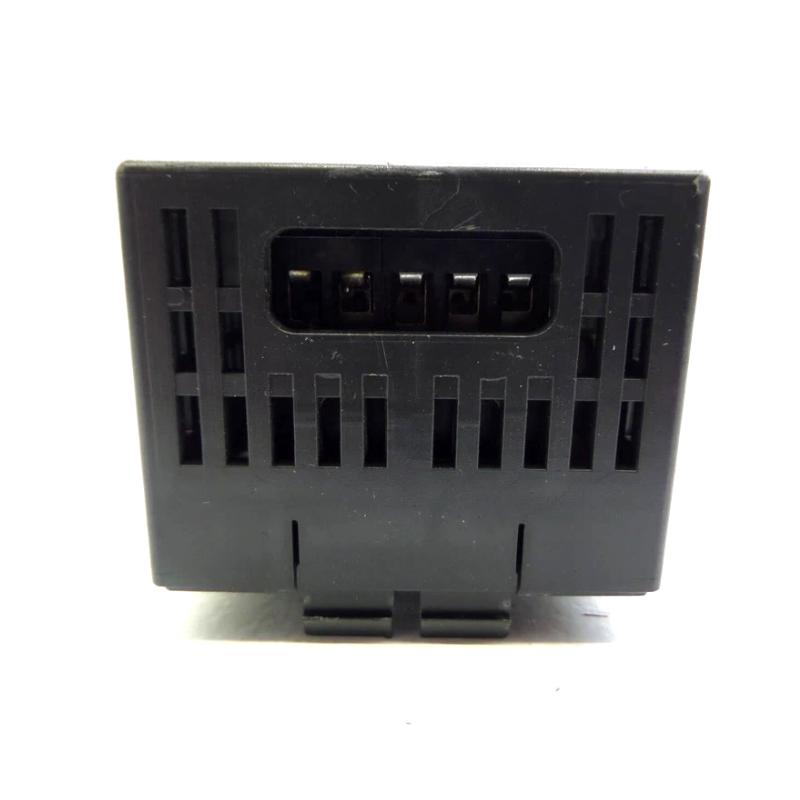

The GE IC200PWR102A is a robust expanded AC power supply module designed specifically for VersaMax PLC environments, supplying reliable and regulated 5 VDC and 3.3 VDC outputs from a single AC mains connection. Ideal for both primary system power and supplemental backplane power, this unit supports versatile industrial applications requiring consistent control logic voltage and strong protection features. Its jumper-selectable input range and compact industrial form factor make it suitable for machine automation panels, distributed I/O racks, and OEM control systems where dependable power delivery is critical to uptime and performance.

Technical Specifications

Specification	Details
Module Type	Expanded AC Power Supply
Model	IC200PWR102A
Input Voltage	Nominal 120 VAC or 240 VAC (jumper-selectable)
Input Range	85–132 VAC (jumper installed) / 176–264 VAC (jumper removed)
Input Frequency	47–63 Hz
Input Power	~27 VA
Output Voltages	Regulated 5 VDC and 3.3 VDC
Output Current (Total)	Up to 1.5 A max
Output Current (5 VDC)	Up to 1.5 A
Output Current (3.3 VDC)	Up to 1.0 A
Holdup Time	~20 ms
Protection	Short-circuit and overload
Mounting	Carrier / DIN rail mount
Approx. Dimensions (H × W × D)	~133.4 × 49 × 39 mm
Approx. Weight	~0.14 kg
Operating Temp	0 – 60 °C
Status Indicators	Power / fault LEDs

This module adapts to either 120 VAC or 240 VAC mains via a jumper setting and provides stable low-voltage DC for the VersaMax backplane and connected modules.

Recommended Related Models

Model	Description
IC200PWR001A	VersaMax DC power supply with dual DC outputs
IC200PWR002D	Enhanced DC power supply with isolation
IC200PWB001	Power supply booster carrier for extended I/O
IC200MDL740	16-point 24 V DC digital input module

Popular VersaMax System Components

Category	Representative Models
PLC CPUs	IC200CPU001, IC200CPU002
Network Interfaces	IC200PNS001 (PROFINET), IC200ETH001 (Ethernet)
Output Modules	IC200MDL742H, IC200MDL741B
Analog I/O	IC200ALGxxx series

Applications

The IC200PWR102A is engineered for industrial automation control systems where a dependable AC-to-DC power source is needed to energize the PLC backplane, CPUs, network interface units, and I/O modules. Typical applications include:

Centralized machine and line control panels
Distributed I/O stations in production systems
OEM automation equipment where AC mains is the primary power source
Retrofit upgrades requiring AC power support for legacy VersaMax installations

Its extended power capabilities also allow it to be installed on a power supply booster carrier to feed additional I/O modules in larger racks.

Advantages

Dual regulated DC outputs (5 V and 3.3 V) support a range of logic voltages
Wide AC input range (85–132 VAC / 176–264 VAC) with simple jumper configuration
Robust protection features guard against overload and short circuits
Compact industrial footprint integrates easily in VersaMax racks
Extended power capability supports supplemental power on booster carriers
Dependable performance with 20 ms holdup time for transient immunity

Technical FAQs

What AC mains voltages can the IC200PWR102A accept?
It supports 85–132 VAC (nominal 120 VAC with jumper) and 176–264 VAC (nominal 240 VAC without jumper).
What DC voltages does this module supply?
It provides regulated 5 VDC and 3.3 VDC outputs for logic power.
What is the maximum total output current?
Up to 1.5 A maximum across both DC outputs.
How much current at 3.3 VDC can it deliver?
Up to 1.0 A on the 3.3 V output.
Is protection included?
Yes — built-in short-circuit and overload protection helps safeguard the module and connected loads.
What is holdup time?
Approximately 20 ms, providing resilience against brief AC supply interruptions.
Where is this power supply typically mounted?
It mounts on the VersaMax backplane carrier or DIN rail within control cabinets.
Can it be used as a supplemental power supply?
Yes — it can also be installed on a power supply booster carrier to extend power to additional modules.
Is this module compatible with all VersaMax I/O modules?
Yes — it integrates with CPUs, NIUs, and I/O modules in the VersaMax ecosystem.
What environments is this module designed for?
It is rated for 0 – 60 °C industrial operation.
