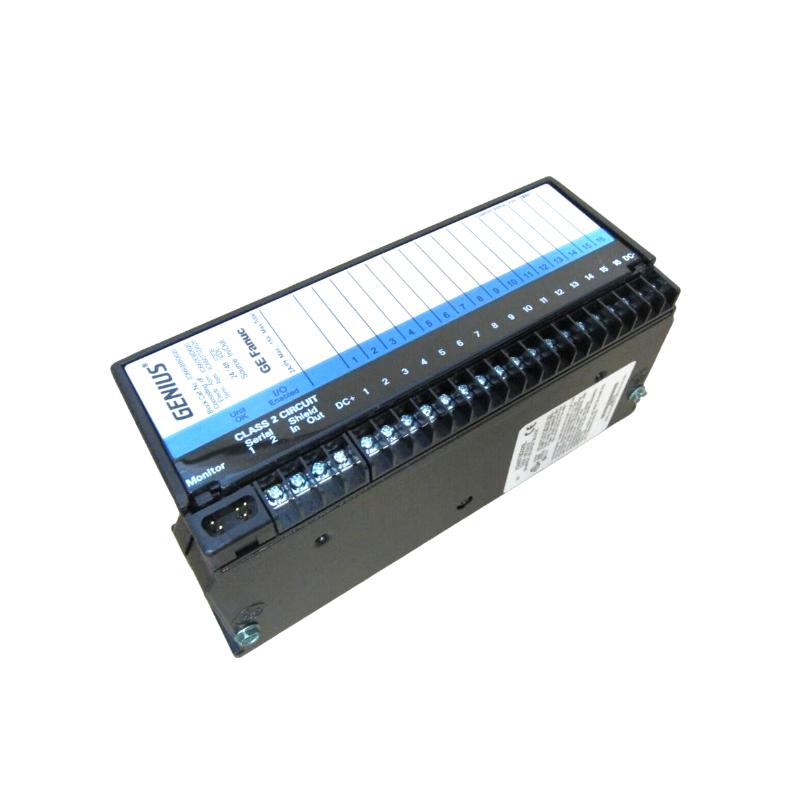

GE IC660BBD020 24/48 VDC 16-Circuit Source/Sink Digital I/O Block for Genius I/O Systems
GE IC660BBD020 24/48 VDC 16-Circuit Source/Sink Digital I/O Block for Genius I/O Systems
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IC660BBD020 Product Origin: USA Product Dimensions:224 × 89 × 100 mm Product Weight:1.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC660BBD020 is a versatile 16-circuit digital I/O block within the GE Fanuc Genius I/O family, engineered to integrate seamlessly into distributed automation and PLC systems. Capable of interfacing with a wide range of field devices — including 3-wire solid-state sensors and electromechanical switches — each circuit can be configured as an input, tristate input, or output independently, making this block ideal where flexibility and compact discrete I/O capacity are needed. Comprehensive built-in diagnostics and robust industrial design ensure reliable performance in demanding environments.
The IC660BBD020 excels in industrial discrete control scenarios where flexible, high-density I/O is required:
Machine automation panels monitoring switches, photoelectric sensors, and pushbuttons
Process and batch systems with mixed input/output discrete signals
Distributed field I/O networks using Genius Bus with remote PLC controllers
OEM automation equipment where modular I/O expansion is needed
Safety and status monitoring with advanced diagnostics and LED feedback
Whether consolidating sensor inputs or driving field outputs, this block provides high performance while reducing wiring and system complexity.
Applications
The IC660BBD020 excels in industrial discrete control scenarios where flexible, high-density I/O is required:
Machine automation panels monitoring switches, photoelectric sensors, and pushbuttons
Process and batch systems with mixed input/output discrete signals
Distributed field I/O networks using Genius Bus with remote PLC controllers
OEM automation equipment where modular I/O expansion is needed
Safety and status monitoring with advanced diagnostics and LED feedback
Whether consolidating sensor inputs or driving field outputs, this block provides high performance while reducing wiring and system complexity.
Technical FAQs
How many I/O circuits does the IC660BBD020 provide?
It provides 16 discrete circuits configurable as input, output, or tristate input.
What voltage range can it operate on?
The module accepts 24 VDC or 48 VDC (18–56 VDC) supply and field inputs.
Can this block drive outputs at high current?
Yes — each output circuit can support up to 2 A with short-term inrush up to ~10 A.
What diagnostic features are built in?
It detects short circuits, over-temperature, open-wire, failed switches, overload, and no-load conditions.
What is the purpose of the input filter time setting?
Configurable filter time (10–100 ms) helps reduce noise and contact bounce effects on discrete inputs.
Does it need a separate block power supply?
No — it uses the same 24/48 VDC supply that powers connected sensors/outputs.
What status indicators are available?
There are Unit OK and I/O Enabled LEDs plus individual circuit indicators.
Is electrical isolation provided for safety?
Yes — the module features 1500 V block-to-block isolation.
Can the module be mounted in any orientation?
Yes — horizontal or vertical mounting is supported with appropriate panel/terminal assembly.
What environments can this block operate in?
It’s rated for typical industrial conditions from about 0 °C to 60 °C with non-condensing humidity.
