Introduction

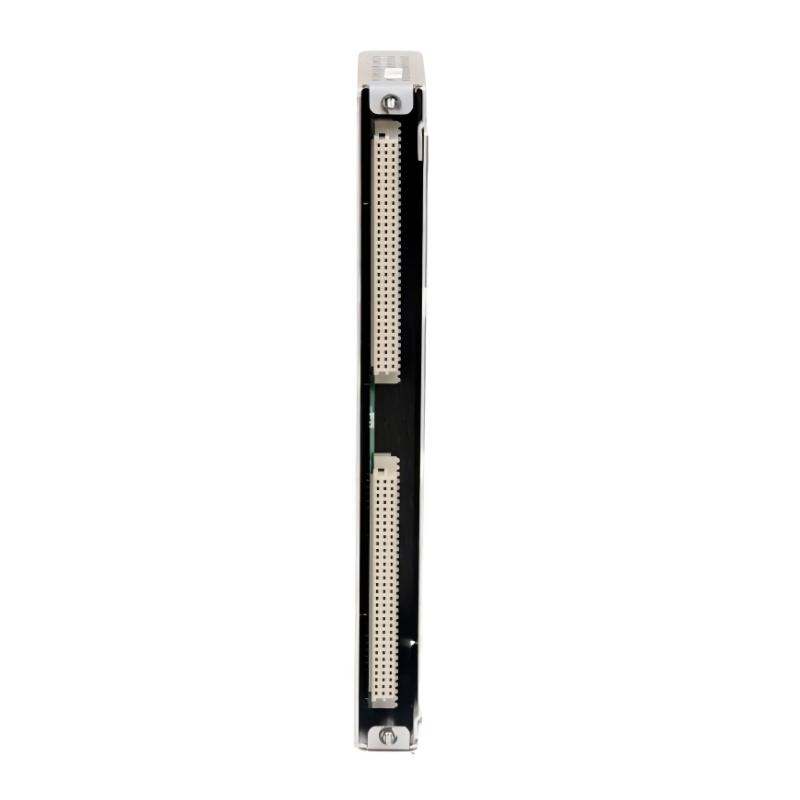

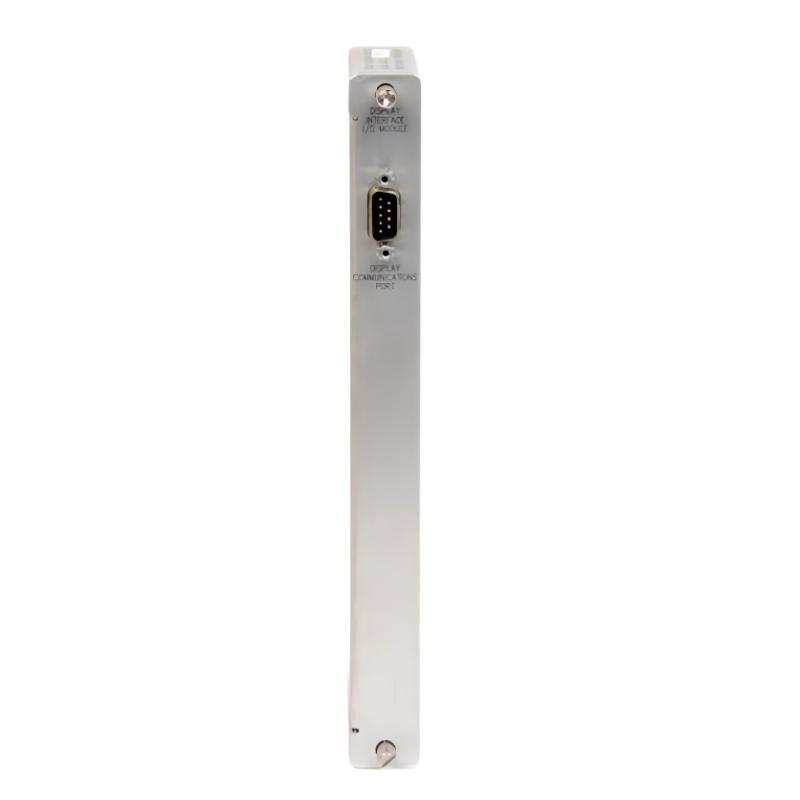

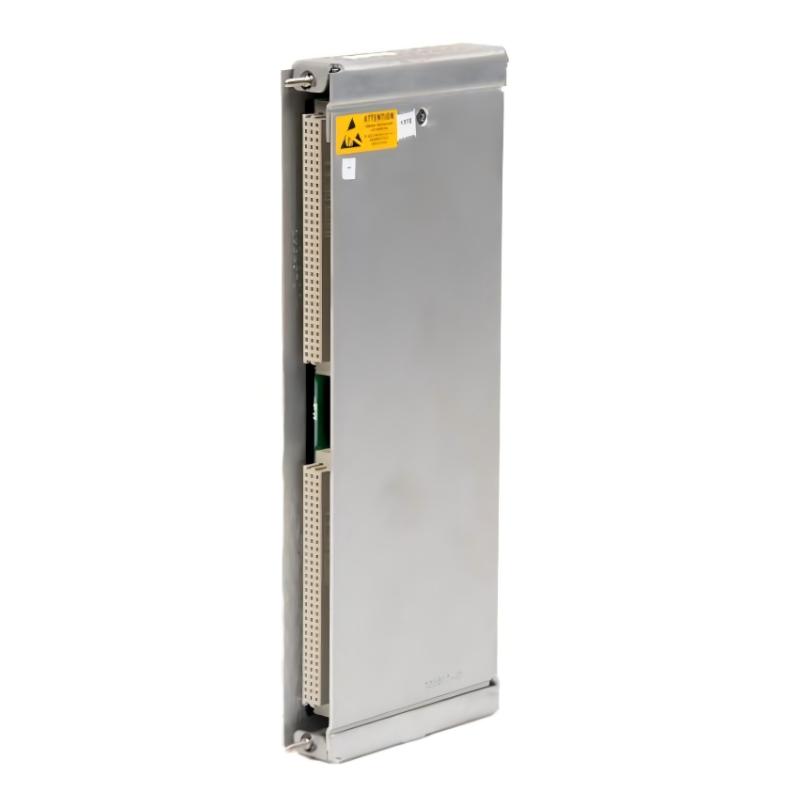

The Bently Nevada 3500/93-02-00-00-00 System Display is a high-performance operator interface for 3500 series monitoring systems. Engineered for industrial environments, it provides real-time vibration and shaft displacement data, alarm management, and event visualization. This display supports predictive maintenance programs and enhances operational awareness, helping operators maintain machinery health and plant safety efficiently.

Technical Specifications

Feature	Specification
Module Type	System Display
Function	Real-time machinery data visualization
Dimensions	241.3 mm × 24.4 mm × 99.1 mm
Weight	0.38 kg
Compatibility	Bently Nevada 3500 series monitors
Environmental Tolerance	Industrial-grade, vibration and shock resistant

Recommended Related Models

Bently Nevada 3500/92-01-00-00-00 – 3500 series vibration monitor module
Bently Nevada 3500/95-01-00-00-00 – 3500 series analog input module for rotating machinery
Bently Nevada 3500/91-00-00-00-00 – 3500 series CPU assembly for system integration
Bently Nevada 3500/94-01-00-00-00 – 3500 series display expansion module for multi-monitor setups

Popular Related Models

Bently Nevada 3500/93-02-00-00-CN – Standard system display with CN compatibility
Bently Nevada 3500/92-01-00-00-CN – Vibration monitor module for industrial setups
Bently Nevada 3500/95-01-00-00-CN – Analog input module for 3500 series systems
Bently Nevada 3500/94-01-00-00-CN – Display expansion module for centralized monitoring

Applications

Rotating Machinery Monitoring: Displays real-time vibration and shaft displacement data from 3500 series monitors.
Industrial Process Visualization: Provides operators with clear insights into machinery condition.
Alarm and Event Management: Shows alarms, warnings, and event logs for critical machinery protection.
Maintenance Planning: Supports condition-based maintenance by displaying key performance metrics.
System Integration: Interfaces with multiple 3500 series monitors for centralized data display.

Advantages

Delivers clear, high-resolution visualization of rotating machinery data.
Provides intuitive operator interface for alarms, events, and system status.
Industrial-grade design ensures reliable performance in harsh plant environments.
Supports integration with multiple 3500 series monitors for centralized monitoring.
Enhances predictive maintenance programs by providing accurate, real-time feedback.

Technical FAQs

What is the primary function of this display?
Shows real-time vibration, shaft displacement, and system status for 3500 series monitors.
Which systems is it compatible with?
Compatible with Bently Nevada 3500 series monitors and related machinery protection systems.
What are the module dimensions?
241.3 mm × 24.4 mm × 99.1 mm, suitable for panel or rack mounting.
What is the module weight?
0.38 kg, lightweight and easy to install.
Does it support alarm and event logging?
Yes, displays alarms, warnings, and historical events for critical equipment.
Can it operate in industrial environments?
Yes, designed for high vibration, temperature, and environmental tolerance.
Is it suitable for system retrofits?
Yes, easily integrates into existing 3500 series monitoring setups.
Does it provide real-time data updates?
Yes, continuously updates machinery condition data for operators.
Can it support multiple monitors?
Yes, capable of centralizing data from several 3500 series devices.
Is the interface user-friendly for operators?
Yes, designed with intuitive display and navigation for quick interpretation of data.
