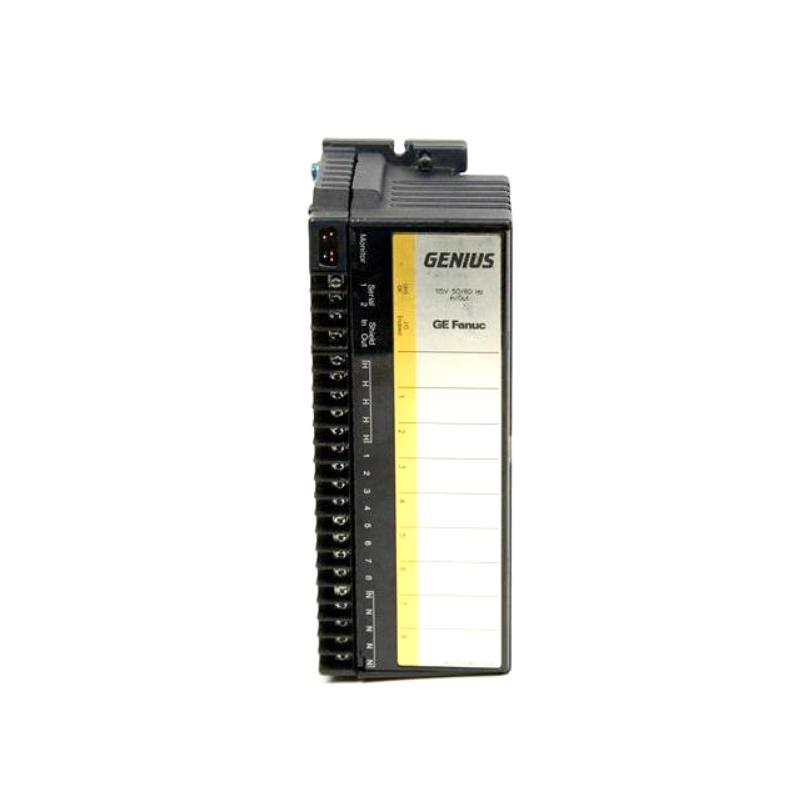

GE IC660BBD100 115 VAC 8-Circuit Grouped Discrete I/O Block for Genius I/O Systems
GE IC660BBD100 115 VAC 8-Circuit Grouped Discrete I/O Block for Genius I/O Systems
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IC660BBD100 Product Origin: USA Product Dimensions:224 × 89 × 100 mm Product Weight:1.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC660BBD100 is an 8-circuit grouped discrete I/O block from the esteemed GE Fanuc Genius I/O family, designed to integrate into distributed industrial control and PLC applications where 115 VAC logic and device interfacing is required. Each of the eight circuits can be independently set up as an input, tristate input, or output, offering versatile handling of control switches, indicators, and other AC discrete signals. With strong electrical isolation, onboard LED status feedback, and compatibility with Genius Bus controllers, this module delivers dependable performance in legacy and modern automation systems.
Technical Specifications
Parameter
Description
Module Type
115 VAC Discrete I/O Block
Model
IC660BBD100
Number of I/O Circuits
8 configurable discrete circuits
Operating Voltage
93 – 132 VAC nominal (115 VAC)
Load Current
2 A per circuit (max)
Isolation
~1500 V block-to-block
Status Indicators
Unit OK, I/O Enabled plus per-circuit LEDs
Power Frequency
47 – 63 Hz
Heat Dissipation
~16–43.5 W (depending on load)
Dimensions (H × W × D)
224 × 89 × 100 mm (~8.83″ × 3.5″ × 3.94″)
Weight
~1.8 kg (4 lbs)
Operating Temp.
0 °C – 60 °C
Communication
Genius Bus distributed I/O protocol
Recommended Related Modules
Model
Description
IC660BBD101
115 VAC/125 VDC low-leakage 8-circuit I/O block
IC660BBD020
24/48 VDC 16-circuit source/sink I/O block
IC660BBD021
24/48 VDC 16-circuit sink-type discrete I/O
IC660BBA100
115 VAC analog I/O block (4 in / 2 out)
Popular GE Genius I/O Components
Category
Representative Models
Genius CPU Controllers
IC660CPU001, IC660CPU002
High-Density Discrete Blocks
IC660BBD020, IC660BBD024
Analog I/O Blocks
IC660BBA023, IC660BBA100
Bus Drivers
IC660EBD024
Applications
The IC660BBD100 is tailored for AC discrete signal interfacing where reliable 115 VAC logic control is essential:
Machine control panels accepting AC inputs from pushbuttons, limit switches, and proximity sensors
Output drives for pilot lights, AC relays, and solenoid coils
Distributed field I/O stations in factory automation systems
Legacy PLC integration with AC discrete devices
OEM control cabinets requiring standardized Genius I/O blocks
Its ability to function as inputs, outputs, or tristate inputs on a per-circuit basis makes it a versatile choice for retrofit as well as new designs.
Applications
The IC660BBD100 is tailored for AC discrete signal interfacing where reliable 115 VAC logic control is essential:
Machine control panels accepting AC inputs from pushbuttons, limit switches, and proximity sensors
Output drives for pilot lights, AC relays, and solenoid coils
Distributed field I/O stations in factory automation systems
Legacy PLC integration with AC discrete devices
OEM control cabinets requiring standardized Genius I/O blocks
Its ability to function as inputs, outputs, or tristate inputs on a per-circuit basis makes it a versatile choice for retrofit as well as new designs.
Technical FAQs
How many discrete circuits does the IC660BBD100 provide?
The block supplies 8 configurable circuits that can act as inputs, tristate inputs, or outputs.
What operating voltage does this module require?
It is designed for 115 VAC with an input range of about 93–132 VAC.
What is the maximum load current per circuit?
Each circuit can handle up to 2 A steady-state load.
Are built-in indicators provided?
Yes — Unit OK and I/O Enabled block LEDs plus individual circuit LEDs.
Is a separate power supply needed?
No — control power is derived from load wiring and the block taps the voltage present on the I/O terminals.
What communication protocol is used?
The module communicates over the Genius Bus distributed I/O protocol.
Can this block be configured via handheld monitor?
Yes — configuration and diagnostics can be performed via an HHM (hand-held monitor).
Where is this block typically used?
It’s used in automation cabinets and distributed I/O stations where AC discrete signals are present.
What is the typical operating temperature range?
Rated for 0 °C to 60 °C industrial ambient conditions.
Can the block operate in both 50 Hz and 60 Hz systems?
Yes — it supports AC mains frequency from about 47 Hz to 63 Hz.
