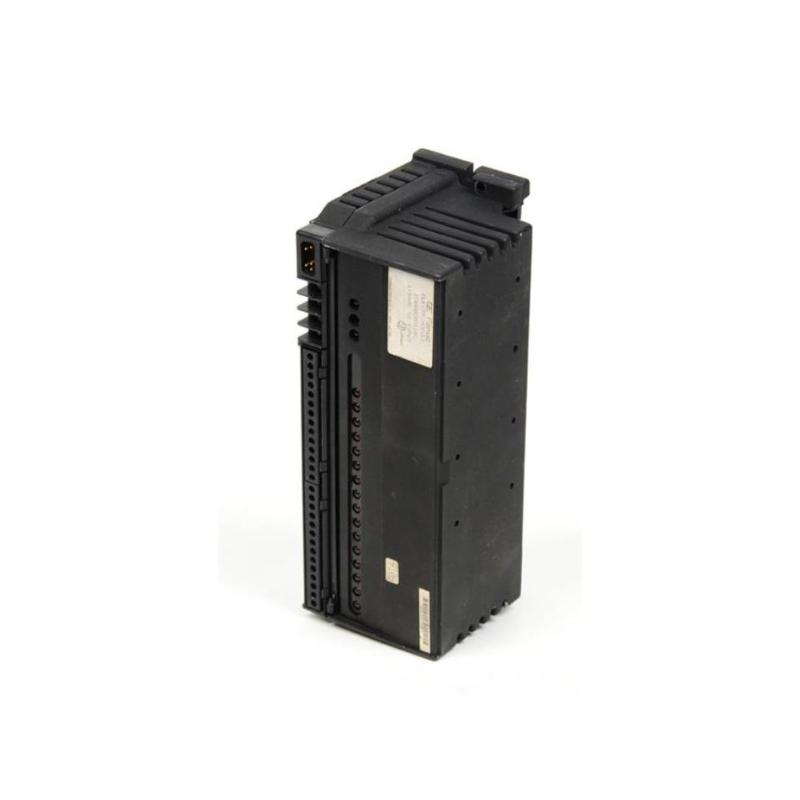

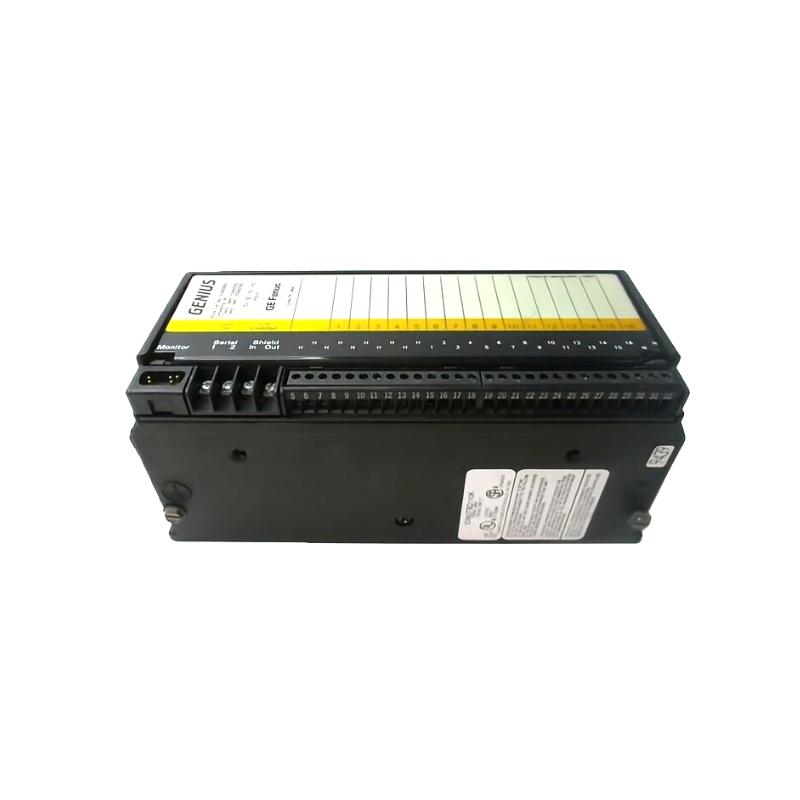

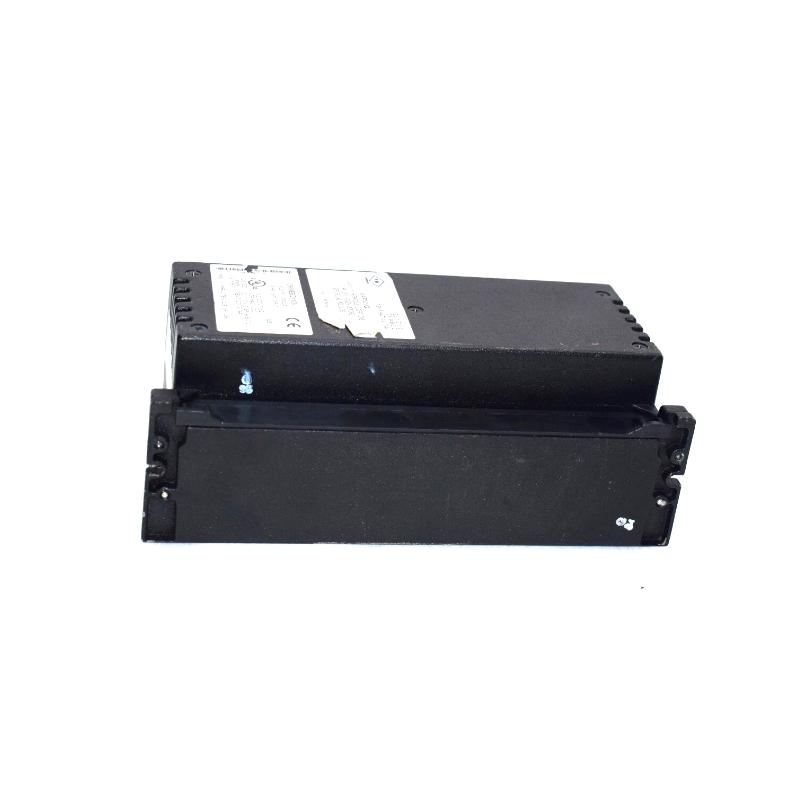

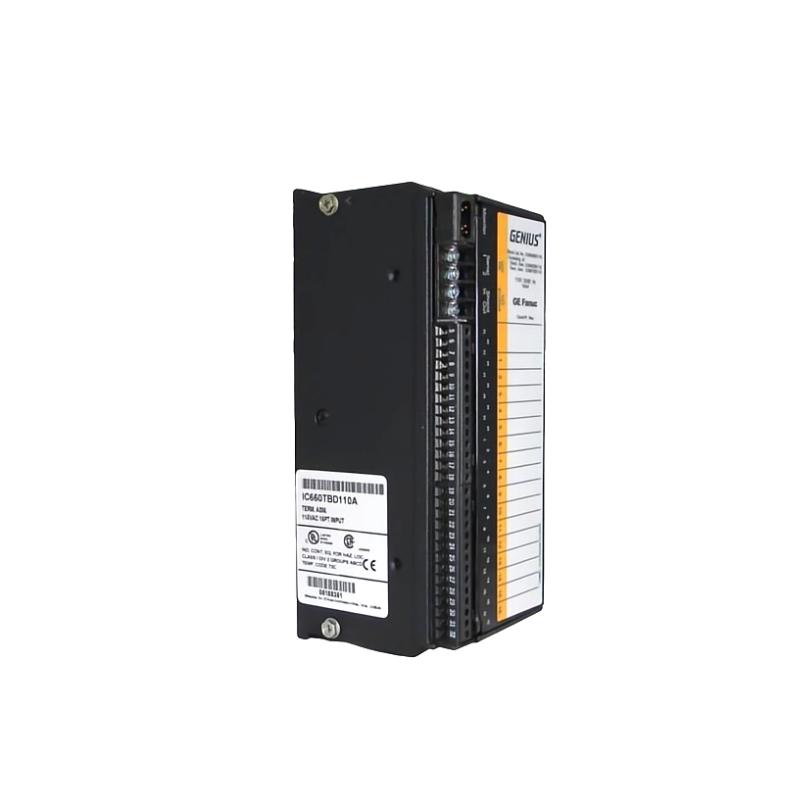

GE IC660BBD110 115 VAC 16-Point Discrete Input Block for Genius I/O Systems

Applications

The IC660BBD110 is engineered for industrial systems needing robust AC discrete input processing:

• Machine control panels interfacing AC pushbuttons, limit switches, and proximity sensors

• Process automation I/O stations requiring high-density input channels

• Distributed PLC I/O networks using Genius Bus topology

• Retrofit and legacy systems replacing older discrete input modules

• OEM control solutions where reliable diagnostics speed commissioning and maintenance

This block’s programmability and built-in diagnostics help minimize wiring issues and false triggers in noisy AC environments.

Advantages

• High input count: 16 individual AC input channels increase control resolution without expanding rack space.

• Programmable thresholds: Configurable ON/OFF levels for adaptation to diverse sensor types.

• Advanced diagnostics: Open-wire and short-circuit detection help identify wiring faults quickly.

• Selectable filtering: Input filtering (10–100 ms) improves noise immunity and contact stability.

• Strong isolation: 1500 V isolation enhances safety and signal integrity.

• Clear LED indicators: Per-input and module status LEDs streamline troubleshooting.

• Genius Bus integration: Works directly on distributed PLC networks without requiring baseplates or separate controllers nearby.

Technical FAQs

1. How many input circuits does the IC660BBD110 provide?
   It has 16 discrete AC input channels.

2. What voltage does this module operate on?
   Designed for 115 VAC, with an operating range of 93–132 VAC.

3. Does it support diagnostics?
   Yes — open-wire and short-circuit detection per channel are supported.

4. Can input filtering be configured?
   Yes — software selectable between 10–100 ms to help reject noise.

5. What is the isolation rating?
   It offers ~1500 V isolation between inputs and ground/bus.

6. Are there status LEDs?
   Yes — module has Unit OK, I/O Enabled, and individual circuit LEDs.

7. What environments can this block operate in?
   Rated for 0 °C to 60 °C with up to 95 % non-condensing humidity.

8. How does it communicate with controllers?
   It uses the Genius Bus distributed I/O protocol for direct communication.

9. Is it hot-swappable?
   While not typically specified as hot-swappable, Genius I/O blocks can often be added without powering down adjacent modules (verify system design requirements).

10. Can it handle 2-wire and 3-wire sensors?
    Yes — it supports both types of AC input devices.
