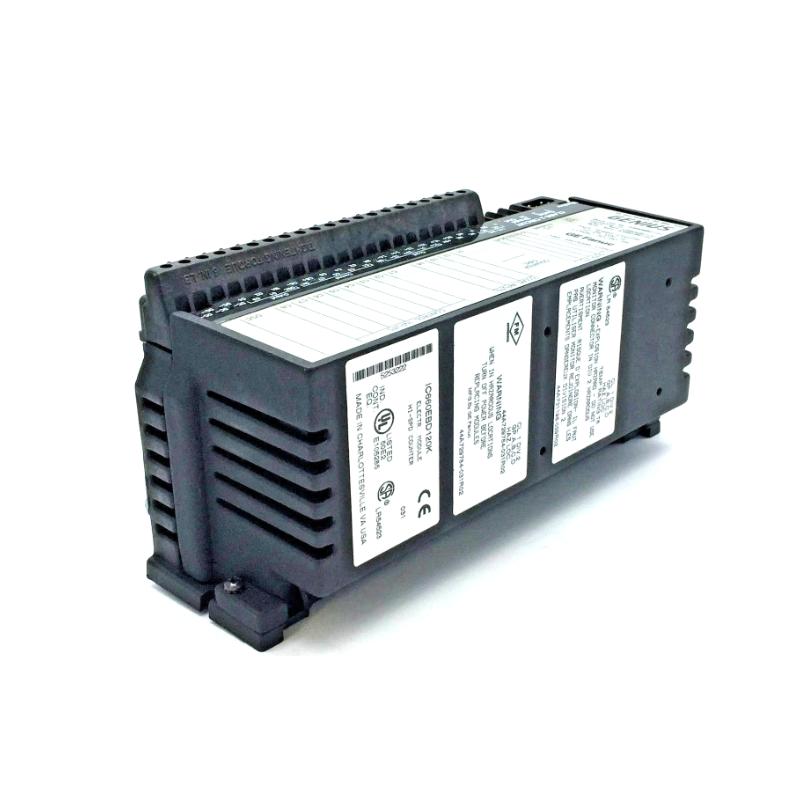

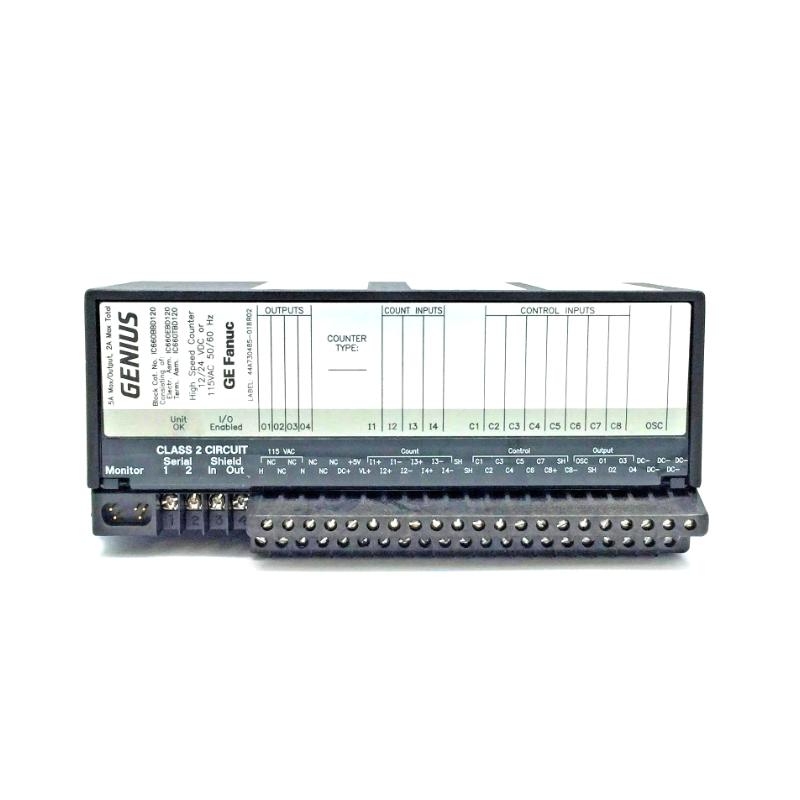

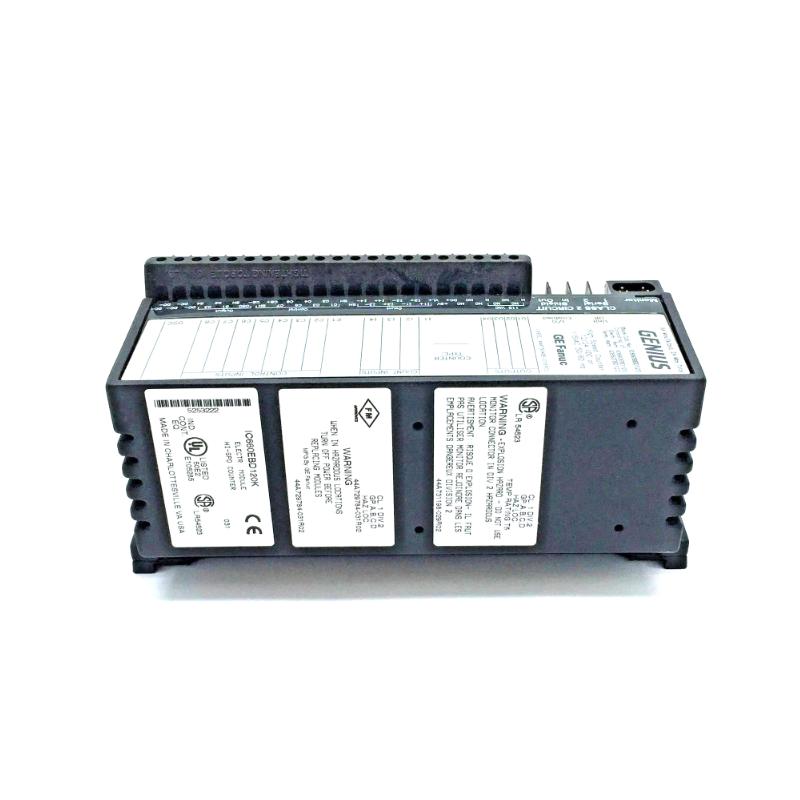

The GE IC660BBD120 is an industrial high-speed counter I/O block from the GE Fanuc / Emerson Genius I/O family, engineered for accurate and reliable processing of fast digital pulse signals in distributed PLC automation systems. It combines multiple high-frequency inputs with discrete outputs and configurable counting logic, making it ideal for applications such as turbine flow measurement, velocity sensing, material handling, and event counting. With support for both AC and DC block power and robust industrial construction, this module delivers dependable performance in demanding environments.

Technical Specifications

Specification	Description
Module Type	High-Speed Counter I/O Block
Model	IC660BBD120
Product Line	GE Fanuc / Emerson Genius I/O
Inputs	12 discrete inputs (5 VDC–30 VDC)
Input Frequency	Up to 200 kHz (high-speed filter); ~40 Hz w/ low filter
Outputs	4 discrete outputs (4.75 V–5.25 V DC)
Oscillator Output	3.8 V @ 4 mA (optional)
Output Current	~200 mA per output
Power Supply	93–132 VAC or 10–30 VDC (dual-power support)
Communication	Genius Bus distributed I/O protocol
Diagnostics	Unit OK, I/O Enabled, individual status LEDs
Count Modes	Up, Down, Up/Down, Differential counting
Dimensions (H × W × D)	224 × 89 × 100 mm approx.
Weight	~1.8 kg (4 lbs)
Operating Temp.	0 °C – 60 °C
Storage Temp.	–40 °C – 100 °C
Humidity	5 % – 95 % non-condensing

The module features optimized internal filtering and configurable input responses to handle very fast pulse sources without CPU intervention, enhancing throughput for real-time counting tasks.

Recommended Related Models

Model	Description
IC660BBD100	8-Circuit 115 VAC discrete I/O block
IC660BBD020	24/48 VDC 16-circuit source/sink digital I/O
IC660BBD024	32-circuit high-density discrete I/O
IC660BBA100	Analog I/O block (4 inputs + 2 outputs)

Popular GE Genius I/O Components

Category	Representative Models
Genius CPU Controllers	IC660CPU001, IC660CPU002
Digital I/O Blocks	IC660BBD020, IC660BBD021
Analog I/O Blocks	IC660BBA023, IC660BBA104
Counter & Specialty Blocks	IC660BBD120

Applications

The IC660BBD120 excels wherever high-speed digital pulse counting and real-time signal processing are needed:

High-accuracy turbine flowmeter and velocity measurement
Material handling systems with encoders or pulse sensors
Motion control and machine indexing applications
Production counting, event detection, and positioning feedback
Retrofitting legacy PLC systems with advanced counter functions

Its direct counting and output logic capabilities reduce the need for external CPUs to manage high-frequency signals, improving system determinism and reliability.

Advantages

High-frequency input support: Handles up to 200 kHz pulse signals for precise counting.
Dual power flexibility: Supports both AC and DC block power for versatile installation.
Configurable counting modes: Count up, down, up/down, or differential modes for flexible logic.
Integrated diagnostics: LEDs provide immediate status feedback for inputs and outputs.
Genius Bus compatibility: Seamlessly integrates into existing distributed PLC networks.
Robust industrial design: Wide environmental ratings make it suitable for harsh factory conditions.

Technical FAQs

What is the IC660BBD120 designed for?
It is a high-speed counter I/O block for GE Fanuc/Emerson Genius distributed systems, optimized for fast pulse measurement and counting.
How many inputs and outputs does it have?
It has 12 digital inputs and 4 digital outputs plus an oscillator output.
What voltage range do the inputs support?
Inputs accept 5 VDC to 30 VDC signals.
What is the maximum counting frequency?
Up to 200 kHz with the high-speed filter.
Can it operate without a PLC CPU?
Yes — the block can directly process pulses and drive outputs without constant CPU communication.
What power supplies are supported?
It supports 93–132 VAC or 10–30 VDC block power.
What industrial applications is it suited for?
Ideal for turbine flowmeter, velocity measurement, and motion control applications.
Does it provide diagnostics?
Yes — unit status and I/O state LEDs give clear operational feedback.
What is the isolation rating?
Designed with industrial isolation compatible with Genie I/O standards.
Are input filters configurable?
Yes — high and low frequency filters support both high-speed and slower signals.
