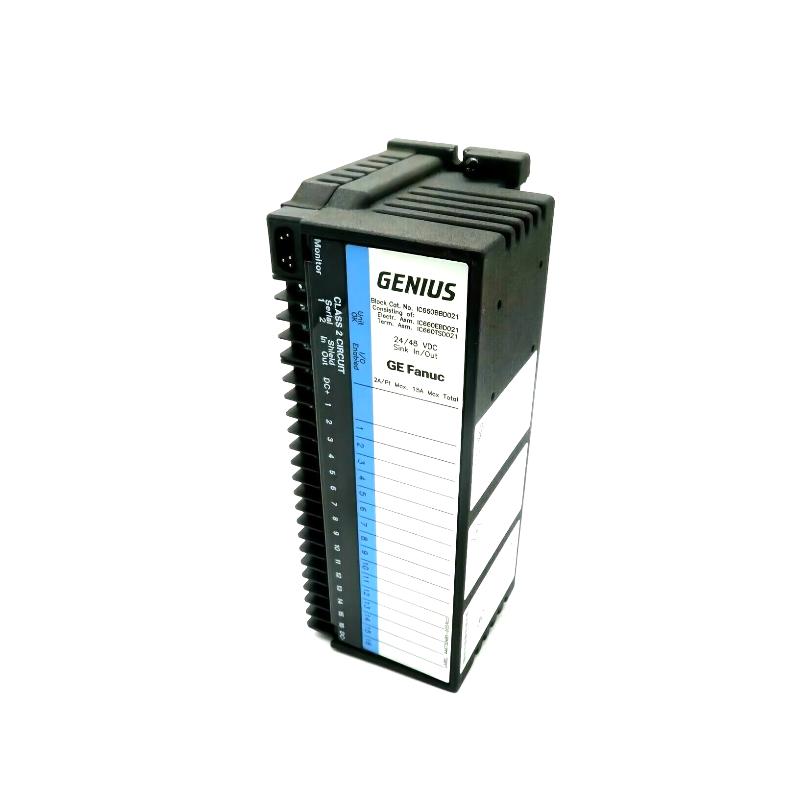

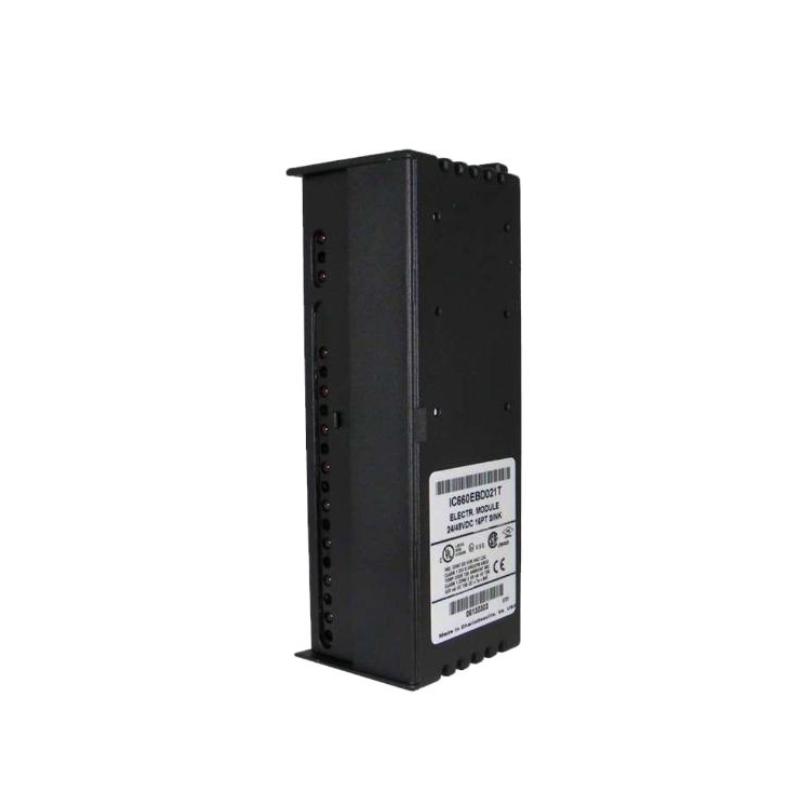

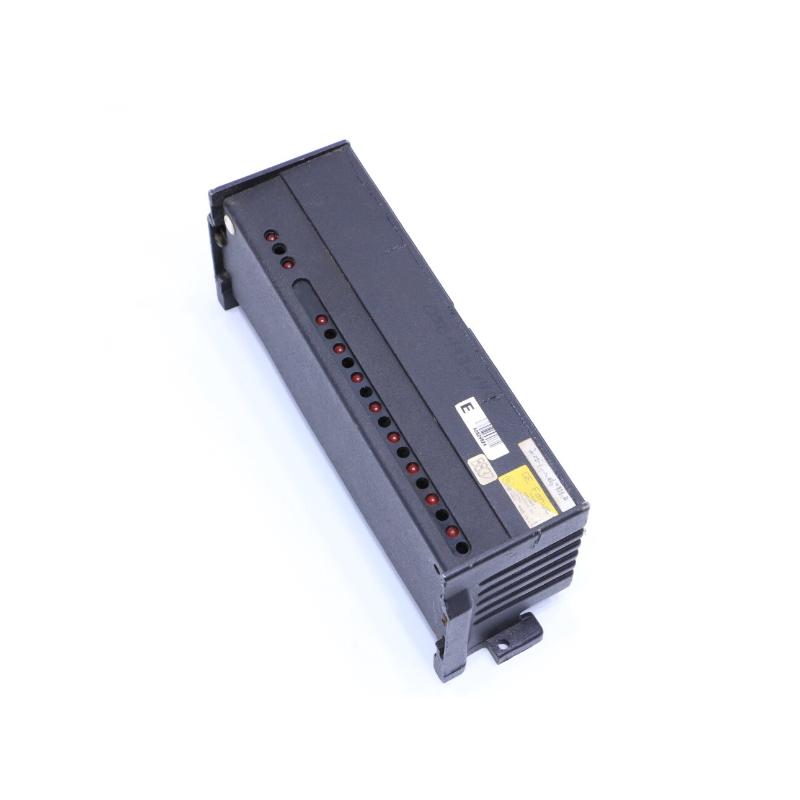

The GE IC660EBD021 is a Discrete Output Electronics Assembly designed to operate within GE Fanuc Genius I/O architectures. Acting as the electronic switching core of a discrete output block, this module converts controller-level commands into consistent and accurately timed output actions at the field level.

Its rugged construction and stable switching characteristics make the IC660EBD021 well suited for industrial environments where predictable output performance and long service life are essential.

Technical Specifications – Electrical Function and Physical Profile

Attribute	Specification
Model Number	GE IC660EBD021
Module Category	Discrete Output Electronics Assembly
I/O Platform	GE Fanuc Genius I/O
Output Signal Type	Digital / Discrete
Output Channels	16
Switching Technology	Solid-state output
Supported Load Voltage	AC or DC (base dependent)
Output Status Feedback	Individual LED indicators
Backplane Power Supply	18–56 V DC
Electrical Isolation	Field-to-logic isolation
Diagnostic Support	Output state and fault monitoring
Operating Temperature	0 to 60 °C
Storage Temperature	−40 to 100 °C
Environmental Rating	Industrial, non-condensing
Dimensions (W × H × D)	224 × 90 × 100 mm
Weight	1.8 kg
Mounting Method	Installed on Genius terminal base

Recommended Related Models – Common Genius I/O Pairings

The IC660EBD021 is typically installed as part of a complete output block using:

GE IC660TBD021 – Terminal base for discrete output wiring
GE IC660BBD021 – Discrete output block assembly
GE IC660BCM501 – Genius bus controller
GE IC660BBS100 / BBS101 / BBS102 / BBS103 – System power supply modules

This combination supports reliable distributed output control with simplified maintenance.

Popular Allen-Bradley Models – Comparable Output Control Options

Engineers evaluating cross-platform solutions may find functional equivalents in:

Allen-Bradley 1734-OB8 – POINT I/O DC output module
Allen-Bradley 1769-OB16 – CompactLogix digital output module
Allen-Bradley 1756-OB16E – ControlLogix DC output module
Allen-Bradley 5069-OB16 – Compact 5000 output module

These modules provide similar discrete output capabilities within Rockwell Automation systems.

Applications – Where the Module Adds Value

The GE IC660EBD021 is commonly used in:

Solenoid and valve actuation
Relay and contactor control circuits
Alarm annunciation and indicator lamps
Conveyor and packaging system outputs
Distributed machine automation requiring deterministic outputs

Its stable switching behavior supports reliable actuation in complex control systems.

Advantages – Operational Benefits in Industrial Environments

Sixteen discrete output channels in a compact electronics assembly
Solid-state design reduces mechanical wear
LED indicators simplify commissioning and troubleshooting
Electrical isolation enhances system protection
Seamless integration with Genius I/O networks
Modular construction allows fast replacement
Proven reliability in continuous-duty applications

These strengths make the IC660EBD021 a practical choice for maintaining and expanding Genius-based systems.

Technical FAQs – Engineering Reference

What is the main function of the IC660EBD021?
It provides discrete output switching within a Genius I/O system.
How many outputs does the module support?
Sixteen discrete output channels.
Can it control both AC and DC loads?
Yes, depending on the terminal base configuration.
Is electrical isolation included?
Yes, field circuits are isolated from the control logic.
How is output status indicated?
Each output channel has an LED indicator.
Does the module require calibration?
No calibration is typically required.
How is the IC660EBD021 installed?
It mounts directly onto a compatible Genius terminal base.
Is it suitable for distributed automation systems?
Yes, it is specifically designed for distributed Genius I/O architectures.
What diagnostic feedback is available?
Output states and fault conditions are reported through the Genius bus.
Why choose IC660EBD021 for output control?
Its stable performance, modular design, and diagnostic visibility make it a dependable output solution.
