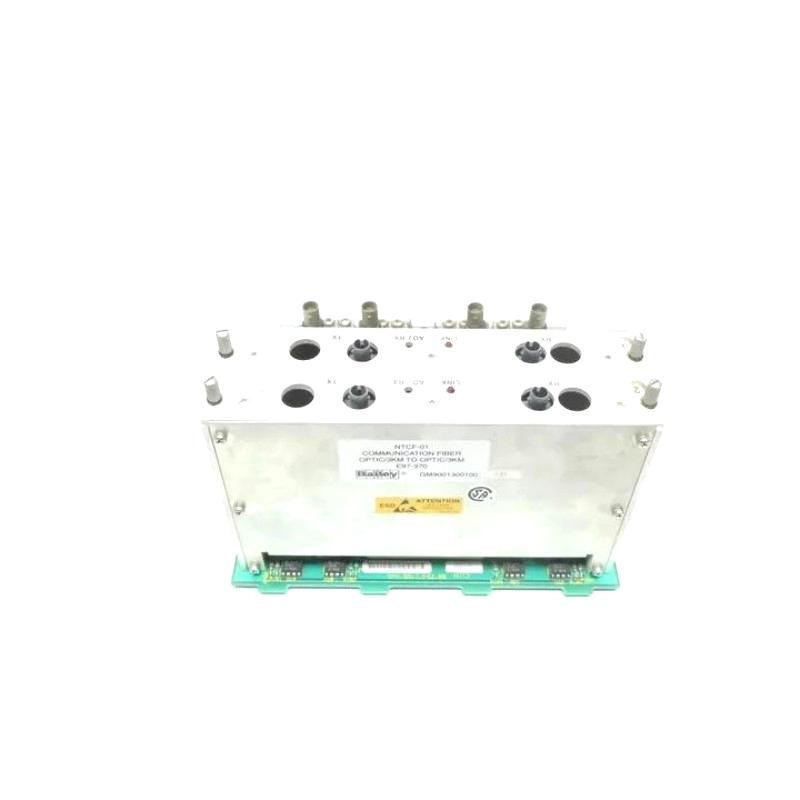

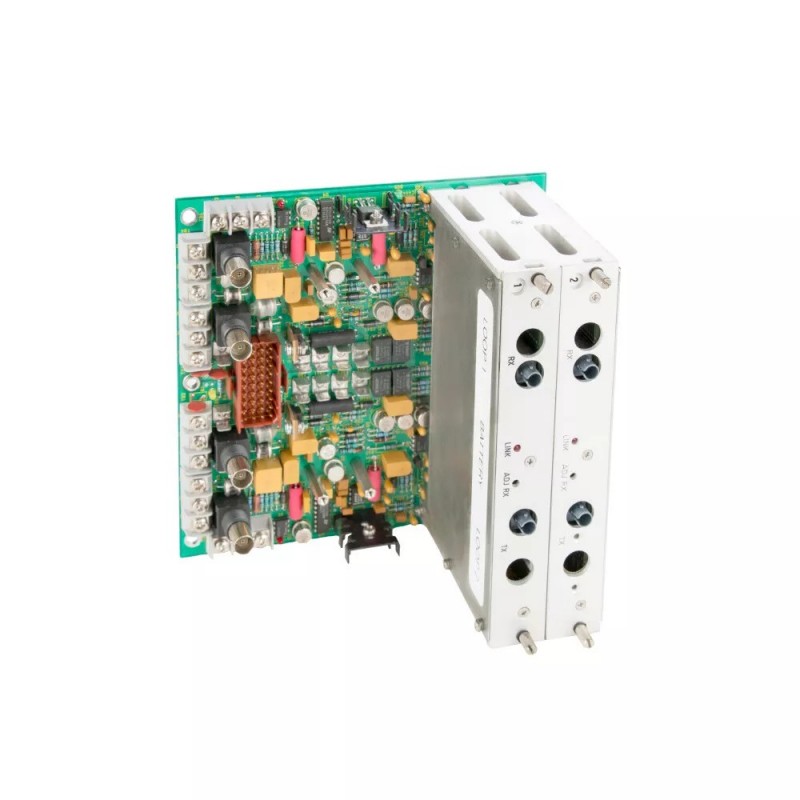

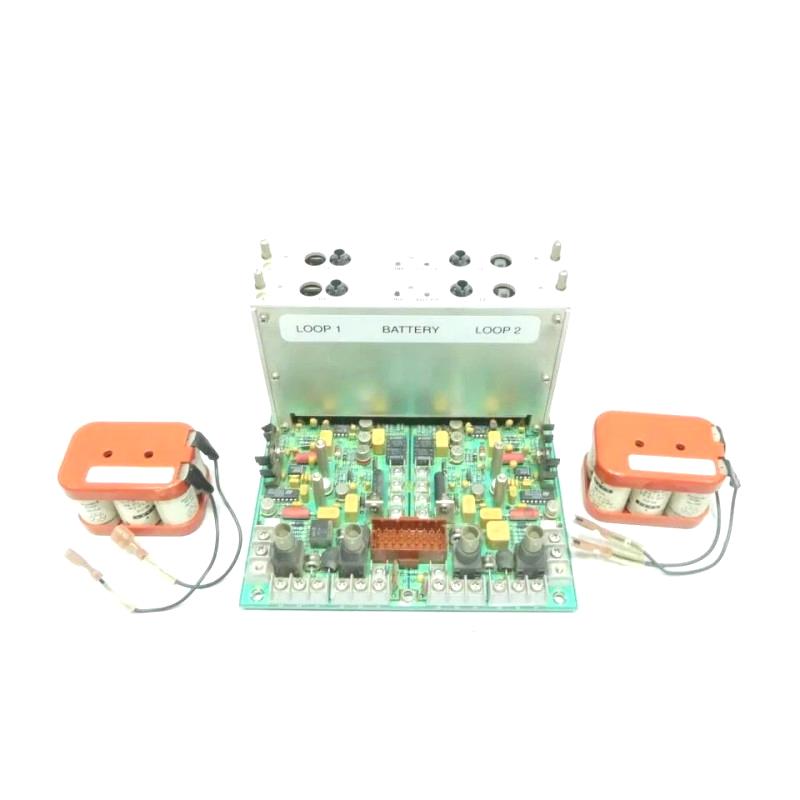

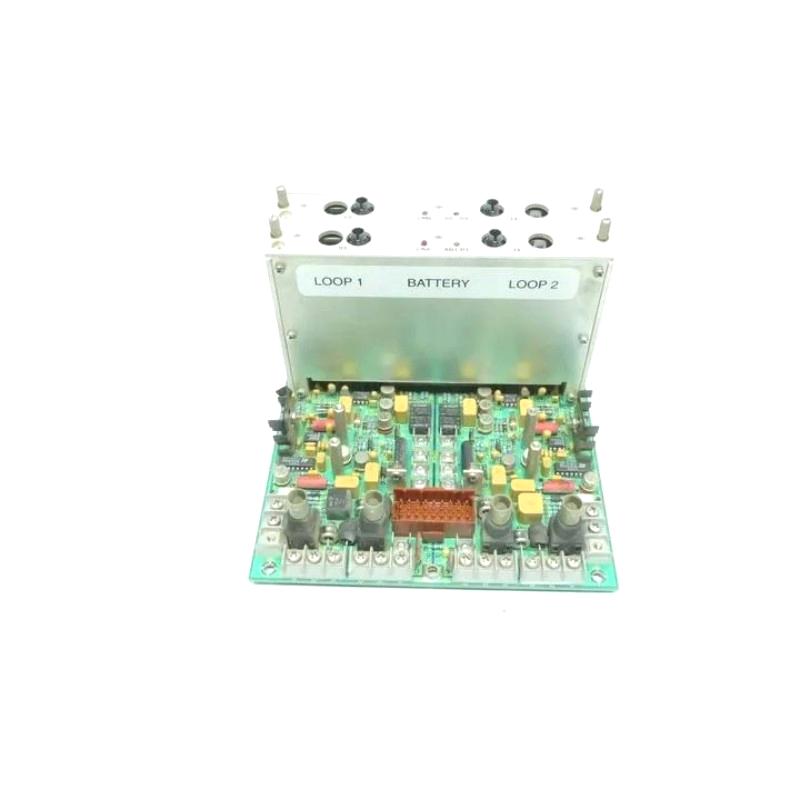

ABB Bailey NTCF01 Fiber To Fiber Terminal Unit

Applications

The ABB Bailey NTCF01 Fiber To Fiber Terminal Unit is designed for high-speed, reliable signal transmission in distributed control systems where optical fiber communication is required. It facilitates seamless integration between fiber networks, enabling secure and interference-free data transfer for industrial automation applications. Ideal for power plants, chemical processing, and other industrial environments that demand robust communication infrastructure.

Advantages

• Fiber-to-Fiber Connectivity: Ensures high-speed, loss-minimized signal transfer between optical networks.
• Industrial Robustness: Designed to withstand vibrations, temperature variations, and electromagnetic interference.
• Compact Footprint: Dimensions of 127 × 178 × 178 mm allow flexible installation in standard control panels.
• Lightweight: At just 0.2 kg, the module is easy to handle and mount.
• High Reliability: Guarantees continuous signal integrity for critical process automation systems.
• Enhanced Data Security: Optical fiber communication reduces susceptibility to electrical interference and tampering.
• Plug-and-Play Operation: Simplifies installation and integration with existing ABB Bailey systems.
• Reduced Maintenance: Durable construction ensures long-term operation with minimal upkeep.
• Seamless Integration: Works with ABB Bailey input/output and terminal modules to extend control network reach.
• Operational Flexibility: Suitable for both short-range and long-distance fiber connections.

Technical FAQs

1. What is the primary function of the NTCF01?
   It connects two optical fiber networks to enable seamless signal transmission.
2. Can it handle high-speed industrial communication?
   Yes, it supports reliable, high-speed data transfer for real-time process control.
3. Is it immune to electromagnetic interference?
   Yes, optical fiber connections are inherently immune to EMI and RFI.
4. Can it be used in distributed control networks?
   Absolutely, it is designed for integration within ABB Bailey DCS architectures.
5. Does it support long-distance signal transmission?
   Yes, it can link fiber networks over distances typical in industrial environments.
6. Is it compatible with existing terminal and I/O modules?
   Yes, it integrates seamlessly with ABB Bailey modules for both input and output operations.
7. Can it be installed in compact control panels?
   Yes, its compact design allows easy panel integration without consuming excessive space.
8. Does it require special configuration software?
   No, it is a plug-and-play solution for fiber network interconnections.
9. Is it suitable for continuous industrial operation?
   Yes, engineered for 24/7 operation in industrial settings.
10. Can it be used for critical process applications?
    Yes, it ensures secure and reliable signal transmission for critical automation systems.
