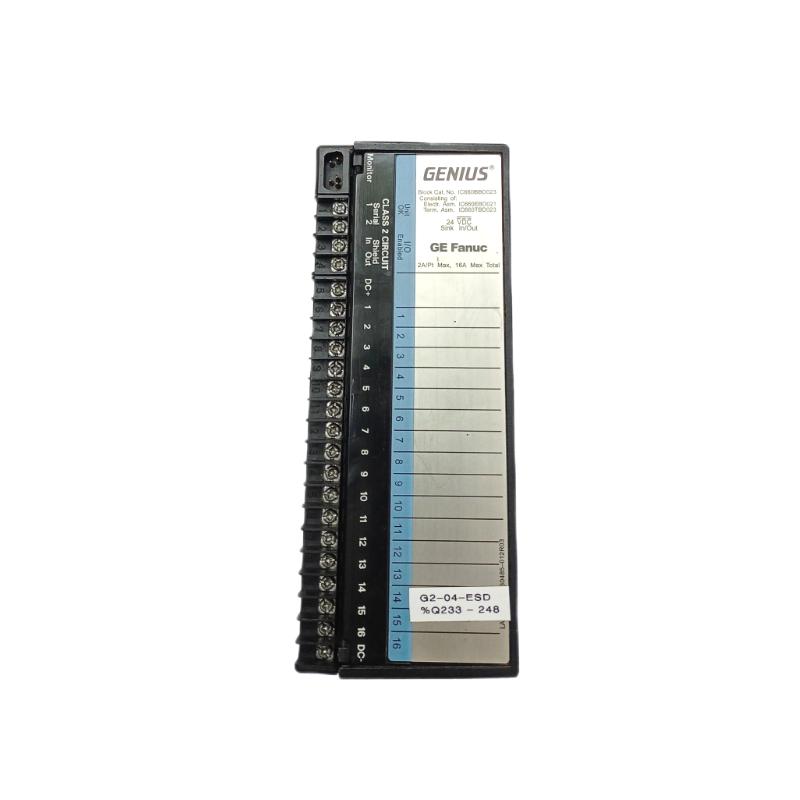

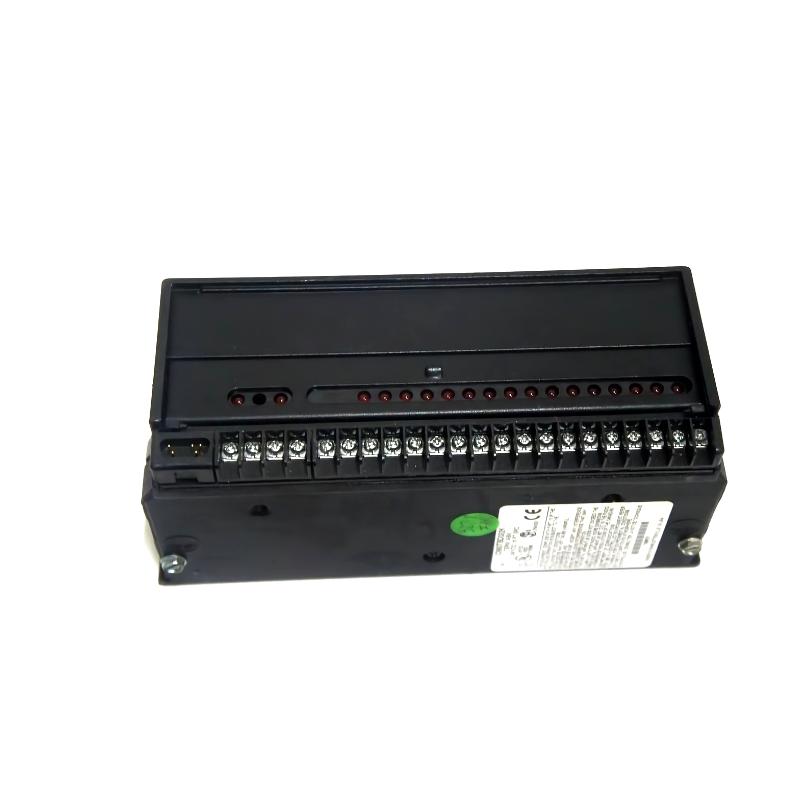

The GE IC660EBD022 is a Discrete Output Electronics Assembly engineered for GE Fanuc Genius I/O platforms. It operates as the core electronic switching element within a discrete output block, ensuring that controller commands are converted into accurate and repeatable field-level output actions.
Designed for continuous operation in industrial environments, this module delivers dependable switching behavior, effective electrical isolation, and clear operational feedback for output-driven automation processes.
Technical Specifications – Electrical Capability and Physical Design
| Specification | Details |
|---|---|
| Model | GE IC660EBD022 |
| Module Type | Discrete Output Electronics Assembly |
| Compatible System | GE Fanuc Genius I/O |
| Output Signal Format | Digital / Discrete |
| Number of Outputs | 16 |
| Switching Method | Solid-state |
| Load Voltage Support | AC or DC (terminal base dependent) |
| Output Indication | Individual channel LEDs |
| Backplane Supply Voltage | 18–56 V DC |
| Electrical Isolation | Field-to-logic isolation |
| Diagnostics | Output state and fault monitoring |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | −40 to 100 °C |
| Environmental Conditions | Industrial, non-condensing |
| Dimensions (W × H × D) | 224 × 90 × 100 mm |
| Weight | 1.8 kg |
| Mounting Interface | Genius-compatible terminal base |
Recommended Related Models – Typical Genius I/O Configurations
The IC660EBD022 is commonly installed as part of a complete Genius output node using:
-
GE IC660TBD022 – Terminal base for discrete output wiring
-
GE IC660BBD022 – Discrete output block assembly
-
GE IC660BCM501 – Genius bus controller module
-
GE IC660BBS100 / BBS101 / BBS102 / BBS103 – System power supplies
This combination supports reliable distributed output control with simplified installation and maintenance.
Popular Allen-Bradley Models – Comparable Discrete Output Modules
For engineers familiar with Rockwell Automation platforms, similar discrete output functionality can be found in:
-
Allen-Bradley 1734-OB8 – POINT I/O DC output module
-
Allen-Bradley 1769-OB16 – CompactLogix digital output module
-
Allen-Bradley 1756-OB16E – ControlLogix DC output module
-
Allen-Bradley 5069-OB16 – Compact 5000 output module
These products provide comparable output control roles within Allen-Bradley systems.
