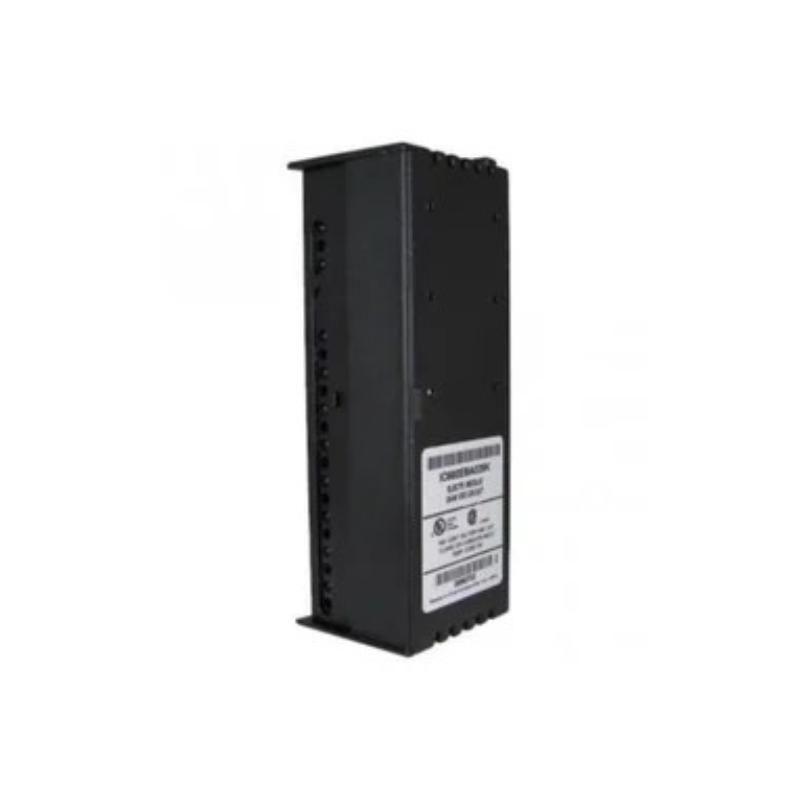

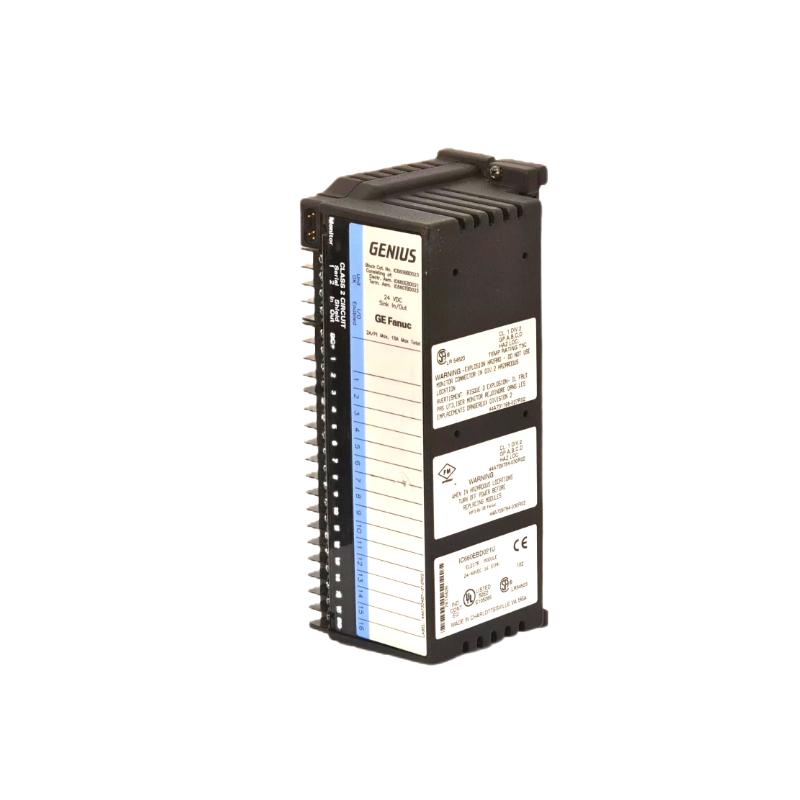

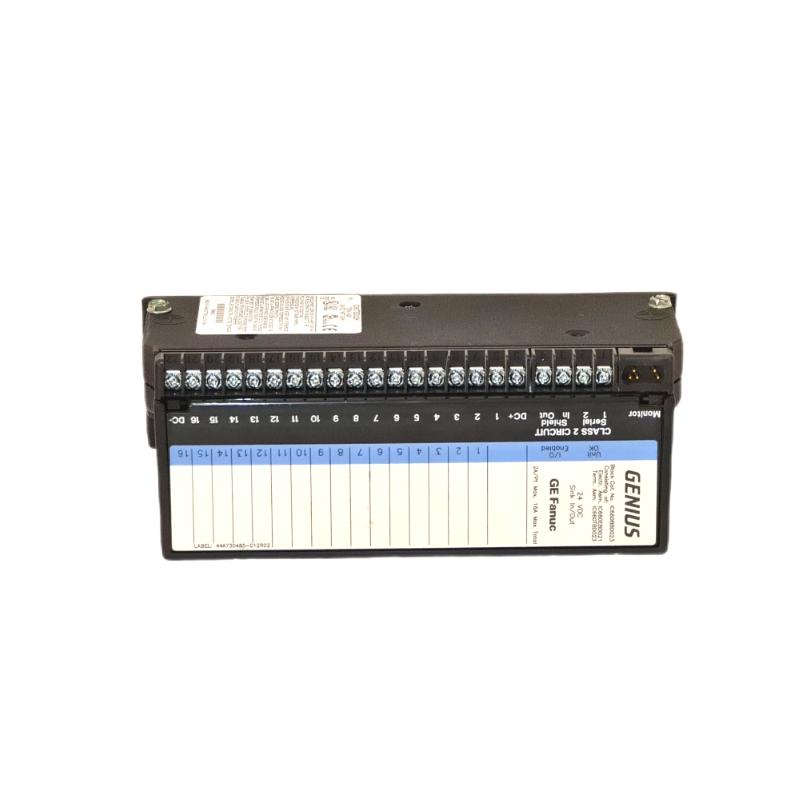

The GE IC660EBD023 is a Discrete Output Electronics Assembly developed for GE Fanuc Genius I/O environments. It serves as the electronic switching layer within a discrete output block, ensuring that digital commands from the controller are translated into accurate and repeatable actions at the field device level.

Built for reliability in demanding industrial conditions, this module delivers stable output performance, strong electrical isolation, and clear visual diagnostics for efficient system operation.

Technical Specifications – Performance Characteristics and Form Factor

Parameter	Specification
Model Identifier	GE IC660EBD023
Module Function	Discrete Output Electronics Assembly
System Compatibility	GE Fanuc Genius I/O
Output Signal Type	Digital / Discrete
Total Outputs	16
Switching Technology	Solid-state
Load Voltage Range	AC or DC (base dependent)
Output Status Display	Channel-level LED indicators
Backplane Power Requirement	18–56 V DC
Electrical Isolation	Field-to-logic isolation
Diagnostic Capability	Output state and fault feedback
Operating Temperature	0 to 60 °C
Storage Temperature	−40 to 100 °C
Environmental Rating	Industrial, non-condensing
Dimensions (W × H × D)	224 × 90 × 100 mm
Weight	1.8 kg
Installation Interface	Genius-compatible terminal base

Recommended Related Models – Typical System Components

The IC660EBD023 is commonly deployed with the following Genius I/O hardware:

GE IC660TBD023 – Terminal base for discrete output wiring
GE IC660BBD023 – Complete discrete output block
GE IC660BCM501 – Genius bus controller
GE IC660BBS100 / BBS101 / BBS102 / BBS103 – System power supply units

This configuration supports scalable and serviceable distributed output control.

Popular Allen-Bradley Models – Comparable Output Control Solutions

Engineers comparing output modules across platforms may consider:

Allen-Bradley 1734-OB8 – POINT I/O digital output module
Allen-Bradley 1769-OB16 – CompactLogix output module
Allen-Bradley 1756-OB16E – ControlLogix digital output module
Allen-Bradley 5069-OB16 – Compact 5000 output module

These products deliver similar discrete output functionality within Rockwell Automation systems.

Applications – Practical Industrial Use Cases

The GE IC660EBD023 is suitable for:

Solenoid valve and pneumatic actuator control
Relay and contactor switching
Alarm annunciation and signaling devices
Conveyor and material handling automation
Distributed machinery requiring deterministic output timing

Its solid-state architecture supports consistent performance in electrically demanding environments.

Advantages – Field-Proven Operational Benefits

Sixteen discrete output channels in a single electronics assembly
Solid-state switching reduces mechanical wear
LED indicators provide immediate output visibility
Electrical isolation improves system protection
Seamless integration with Genius I/O networks
Modular design enables rapid replacement
Proven durability for long-term industrial operation

These advantages make the IC660EBD023 a dependable component for sustaining and upgrading Genius-based control systems.

Technical FAQs – Engineering Support Reference

What is the purpose of the IC660EBD023?
It provides discrete output switching within Genius I/O systems.
How many outputs are supported?
The module supports 16 discrete output channels.
Can it handle AC and DC loads?
Yes, load type depends on the terminal base used.
Is isolation provided between field and logic circuits?
Yes, electrical isolation is built into the module.
How is output status monitored?
Each output channel includes an LED indicator.
Does the module require calibration?
No calibration is typically required.
How is the IC660EBD023 installed?
It mounts directly onto a Genius-compatible terminal base.
Is it suitable for distributed I/O architectures?
Yes, it is specifically designed for distributed Genius systems.
What diagnostics are available?
Output states and fault conditions are reported via the Genius bus.
Why choose IC660EBD023 for industrial output control?
Its predictable switching, robust design, and diagnostic clarity make it a reliable choice.
