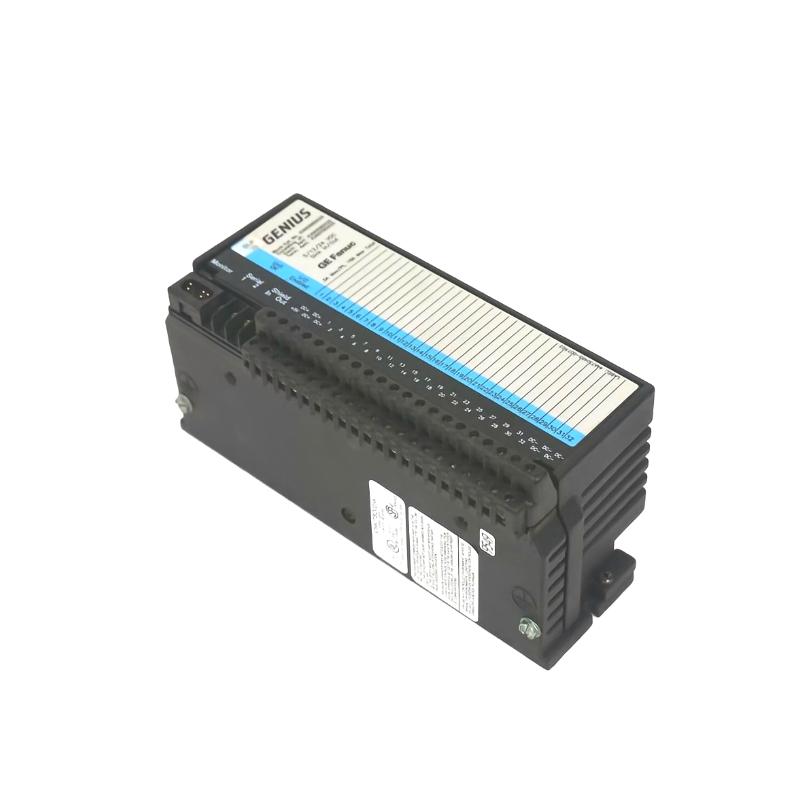

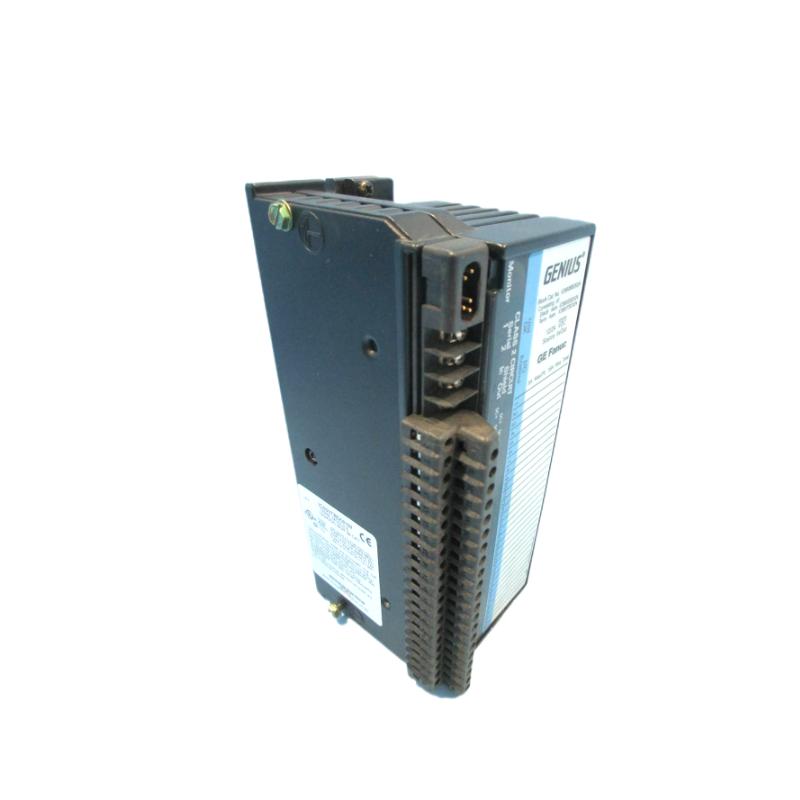

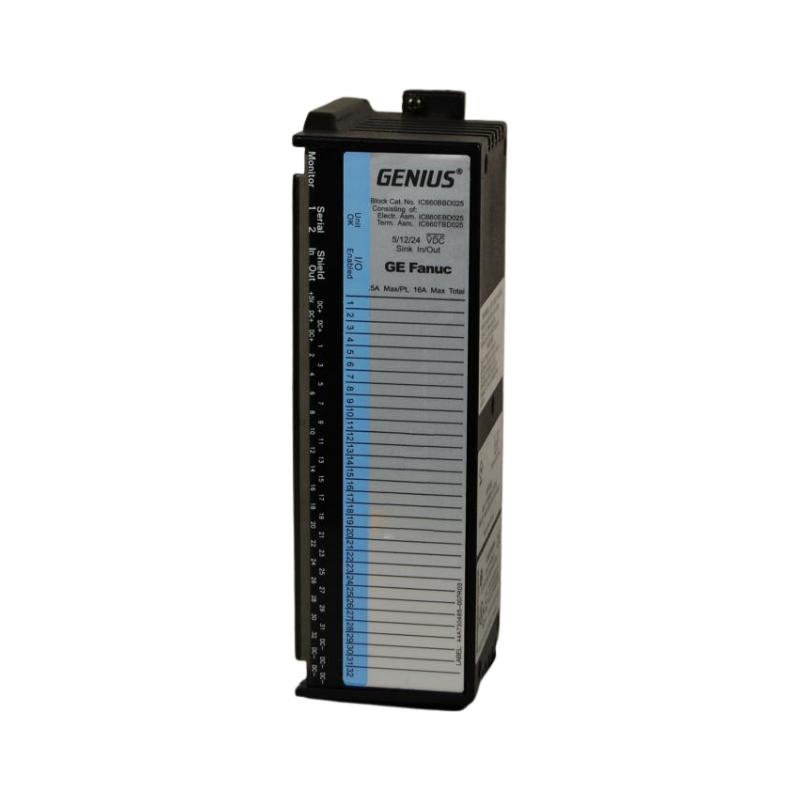

The GE IC660EBD025 is a Discrete Output Electronics Assembly designed for seamless operation within GE Fanuc Genius I/O systems. Serving as the electronic switching core of a discrete output block, this module ensures that controller commands are executed accurately at the field level, driving industrial loads with predictable and stable behavior.

Its robust construction and solid-state output design make the IC660EBD025 well suited for automation environments where consistent actuation, electrical protection, and long service life are essential.

Technical Specifications – Electrical Performance and Physical Profile

Specification	Description
Model Number	GE IC660EBD025
Module Type	Discrete Output Electronics Assembly
I/O Platform	GE Fanuc Genius I/O
Output Signal Format	Digital / Discrete
Number of Outputs	16
Switching Technology	Solid-state
Load Voltage Capability	AC or DC (terminal base dependent)
Output Status Indication	Individual channel LEDs
Backplane Supply Voltage	18–56 V DC
Electrical Isolation	Field-to-logic isolation
Diagnostics	Output state and fault reporting
Operating Temperature Range	0 to 60 °C
Storage Temperature Range	−40 to 100 °C
Environmental Rating	Industrial, non-condensing
Dimensions (W × H × D)	224 × 90 × 100 mm
Weight	1.8 kg
Mounting Method	Genius-compatible terminal base

Recommended Related Models – Typical Genius I/O Configurations

The IC660EBD025 is commonly implemented as part of a complete discrete output block together with:

GE IC660TBD025 – Terminal base for output wiring
GE IC660BBD025 – Discrete output block assembly
GE IC660BCM501 – Genius bus controller module
GE IC660BBS100 / BBS101 / BBS102 / BBS103 – Power supply modules

This configuration supports scalable distributed output control with simplified installation and maintenance.

Popular Allen-Bradley Models – Comparable Output Control Options

For engineers working across automation platforms, similar discrete output functionality can be found in:

Allen-Bradley 1734-OB8 – POINT I/O digital output module
Allen-Bradley 1769-OB16 – CompactLogix output module
Allen-Bradley 1756-OB16E – ControlLogix DC output module
Allen-Bradley 5069-OB16 – Compact 5000 output module

These modules perform comparable output control roles within Allen-Bradley systems.

Applications – Where the Module Is Commonly Deployed

The GE IC660EBD025 is widely used in applications such as:

Solenoid valve and actuator operation
Relay and contactor switching
Alarm annunciation and indicator signaling
Conveyor and material handling systems
Distributed machine automation requiring stable output timing

Its solid-state design supports consistent performance in electrically demanding industrial environments.

Advantages – Practical Benefits for Automation Systems

Sixteen discrete output channels in a compact assembly
Solid-state switching minimizes mechanical wear
LED indicators enable rapid output verification
Electrical isolation enhances system protection
Full compatibility with Genius I/O architectures
Modular construction simplifies servicing and replacement
Proven reliability for continuous industrial duty

These advantages make the IC660EBD025 a dependable solution for maintaining and expanding Genius-based control systems.

Technical FAQs – Engineering Reference

What is the primary function of the IC660EBD025?
It provides discrete output switching within Genius I/O systems.
How many outputs does the module support?
The module supports 16 discrete output channels.
Can it drive both AC and DC loads?
Yes, depending on the terminal base configuration.
Is electrical isolation included?
Yes, the module provides field-to-logic isolation.
How is output status indicated?
Each output channel includes an LED indicator.
Does the module require calibration?
No calibration is typically required.
How is the IC660EBD025 installed?
It mounts directly onto a compatible Genius terminal base.
Is it suitable for distributed I/O systems?
Yes, it is designed specifically for distributed Genius architectures.
What diagnostics are available?
Output states and fault conditions are reported via the Genius bus.
Why select IC660EBD025 for output control?
Its stable switching performance, modular design, and clear diagnostics make it a reliable long-term solution.
