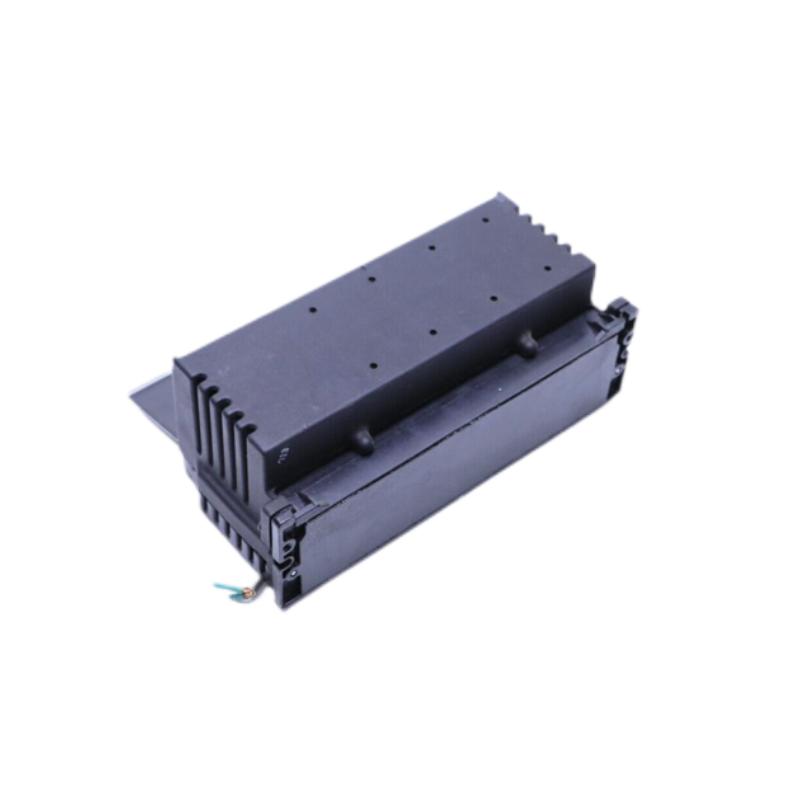

The GE IC660EBD101 is a Discrete Output Electronics Assembly designed specifically for GE Fanuc Genius I/O systems. It acts as the electronic switching interface within a discrete output block, enabling reliable execution of controller commands and consistent actuation of field devices.

Optimized for long-term industrial operation, this module emphasizes predictable switching behavior, electrical robustness, and clear visual feedback, making it suitable for automation systems that demand stable output performance.

Technical Specifications – Electrical Capability and Mechanical Profile

Item	Specification
Model	GE IC660EBD101
Module Type	Discrete Output Electronics Assembly
System Compatibility	GE Fanuc Genius I/O
Output Signal	Digital / Discrete
Number of Outputs	16
Switching Method	Solid-state
Load Voltage Support	AC or DC (terminal base dependent)
Output Status Indication	Individual LED indicators
Backplane Power Supply	18–56 V DC
Electrical Isolation	Field-to-logic isolation
Diagnostic Features	Output state and fault detection
Operating Temperature	0 to 60 °C
Storage Temperature	−40 to 100 °C
Environmental Conditions	Industrial, non-condensing
Dimensions (W × H × D)	224 × 90 × 100 mm
Weight	1.8 kg
Installation Method	Mounted on Genius-compatible terminal base

Recommended Related Models – Common Genius I/O Components

The IC660EBD101 is typically used as part of a complete output block in combination with:

GE IC660TBD101 – Terminal base for discrete output wiring
GE IC660BBD101 – Discrete output block assembly
GE IC660BCM501 – Genius bus controller module
GE IC660BBS100 / BBS101 / BBS102 / BBS103 – Power supply modules

This configuration supports scalable distributed output control with efficient maintenance access.

Popular Allen-Bradley Models – Comparable Discrete Output Solutions

For engineers evaluating equivalent functionality across platforms, comparable Allen-Bradley modules include:

Allen-Bradley 1734-OB8 – POINT I/O digital output module
Allen-Bradley 1769-OB16 – CompactLogix output module
Allen-Bradley 1756-OB16E – ControlLogix DC output module
Allen-Bradley 5069-OB16 – Compact 5000 output module

These modules provide similar discrete output control within Rockwell Automation systems.

Applications – Typical Industrial Deployment

The GE IC660EBD101 is commonly deployed in:

Solenoid valve and actuator control
Relay and contactor switching
Alarm signaling and indicator lamps
Conveyor and material handling systems
Distributed automation requiring deterministic output timing

Its solid-state output design supports reliable operation in electrically noisy environments.

Advantages – Practical Benefits for Automation Systems

Sixteen discrete outputs in a compact electronics assembly
Solid-state switching improves service life
LED indicators simplify commissioning and diagnostics
Electrical isolation protects control circuitry
Seamless compatibility with Genius I/O networks
Modular construction allows rapid replacement
Proven performance in continuous industrial duty

These benefits make the IC660EBD101 a dependable option for maintaining and expanding Genius-based control systems.

Technical FAQs – Engineering Support Information

What is the function of the IC660EBD101?
It provides discrete output switching within Genius I/O systems.
How many output channels are available?
The module supports 16 discrete outputs.
Can it control both AC and DC loads?
Yes, depending on the terminal base configuration.
Is electrical isolation included?
Yes, field circuits are isolated from logic circuits.
How is output status indicated?
Each output channel features an LED indicator.
Is configuration or calibration required?
No calibration is typically required.
How is the module installed?
It mounts directly onto a Genius-compatible terminal base.
Is it suitable for distributed I/O systems?
Yes, it is specifically designed for distributed Genius architectures.
What diagnostic information is available?
Output states and fault conditions are reported through the Genius bus.
Why select IC660EBD101 for output applications?
Its predictable switching behavior, modular design, and diagnostic visibility make it a reliable long-term solution.
