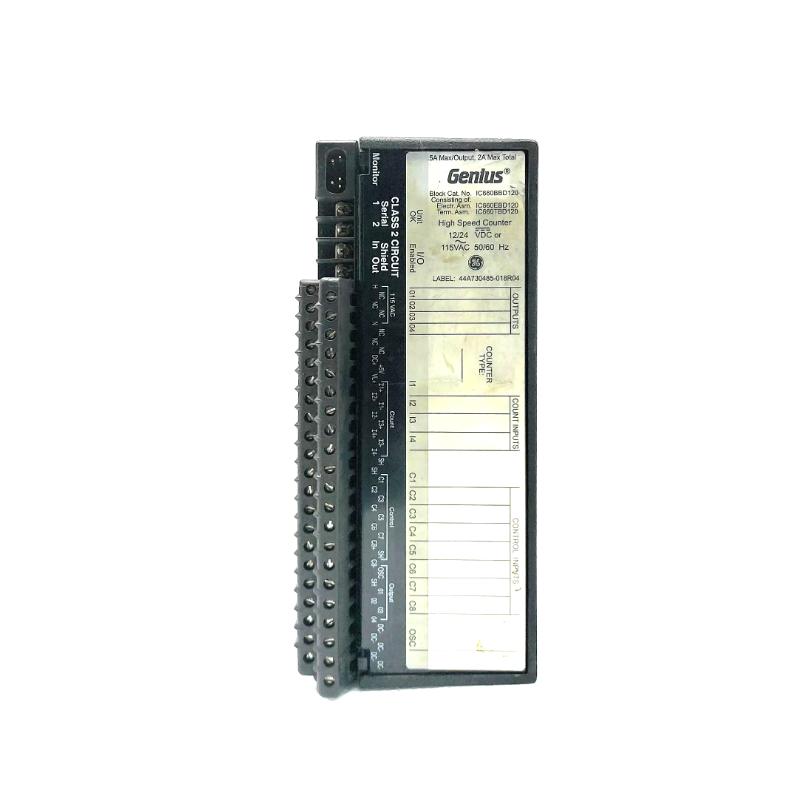

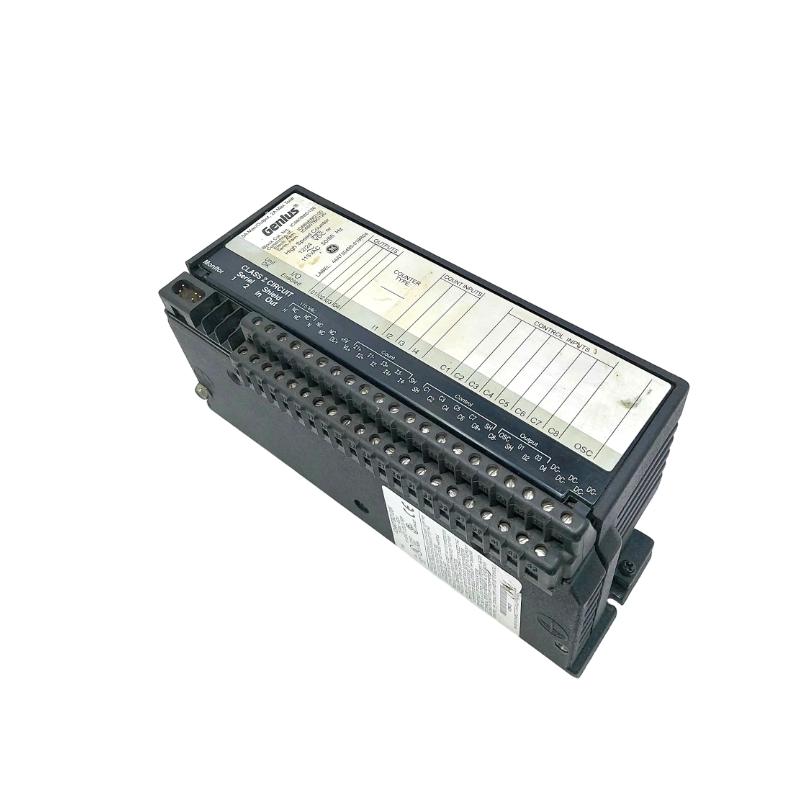

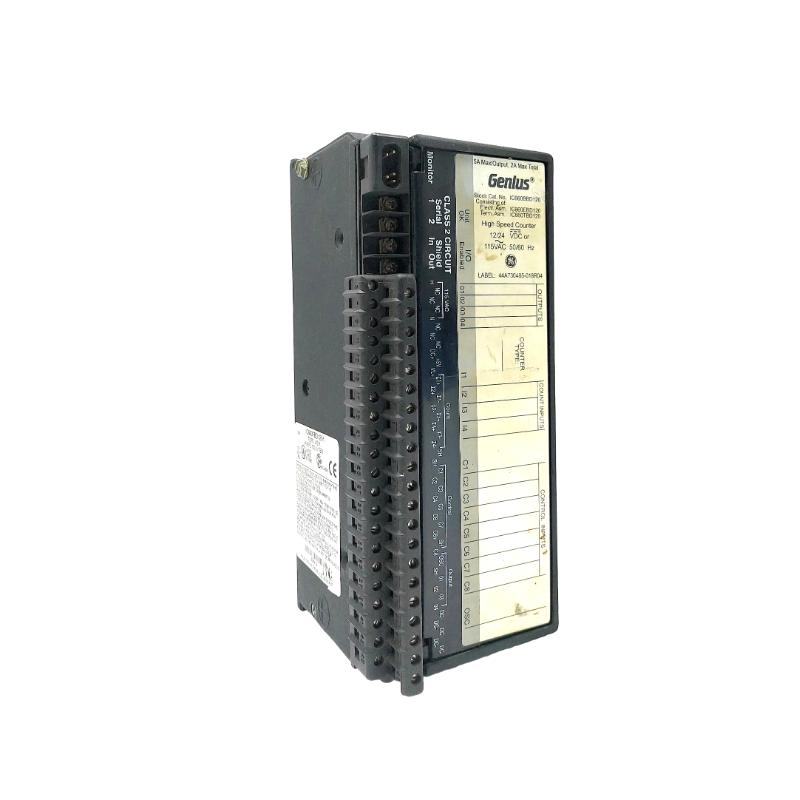

The GE IC660EBD120 is a Discrete Output Electronics Assembly designed for GE Fanuc Genius I/O platforms where dependable output control and long-term stability are essential. Acting as the electronic core of a discrete output block, this module converts controller commands into precise switching actions for field devices across distributed automation architectures.
Built for continuous industrial operation, the IC660EBD120 delivers consistent performance in electrically noisy environments while maintaining full compatibility with Genius terminal bases and system diagnostics.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | GE IC660EBD120 |
| Module Type | Discrete Output Electronics Assembly |
| I/O Platform | GE Fanuc Genius I/O |
| Number of Outputs | 16 discrete channels |
| Output Technology | Solid-state |
| Nominal Backplane Voltage | 18–56 V DC |
| Load Compatibility | AC or DC (terminal base dependent) |
| Output Indicators | Individual LED per channel |
| Electrical Isolation | Control logic to field isolation |
| Diagnostics | Output status and fault feedback |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | −40 to 100 °C |
| Humidity Rating | Industrial, non-condensing |
| Dimensions (W × H × D) | 224 × 90 × 100 mm |
| Weight | 1.85 kg |
| Installation | Genius-compatible terminal base mounting |
Functional Role Within the Output Block
In a Genius output block configuration, the IC660EBD120 serves as the electronic switching layer. It interfaces directly with the bus controller while remaining electrically isolated from the field wiring handled by the terminal base.
This separation enables:
-
Stable and repeatable output switching
-
Simplified maintenance without disturbing wiring
-
Improved protection for control electronics
-
Fast replacement during scheduled or corrective servicing
Recommended Related Models
The IC660EBD120 is commonly used alongside the following Genius components:
-
GE IC660TBD120 – Discrete output terminal base
-
GE IC660BBD120 – Complete output block assembly
-
GE IC660BCM501 / BCM101 – Genius bus controllers
-
GE IC660BBS100 / BBS101 – System power supply modules
These components together support scalable distributed control across large industrial installations.
Popular GE Genius I/O Models
Other widely used modules within the IC660 Genius family include:
-
GE IC660EBD110 – Discrete output electronics assembly
-
GE IC660BRD024 – Discrete input electronics assembly
-
GE IC660BSM021 – Analog input module
-
GE IC660BPM500 – Power monitor module
-
GE IC660BLM508 – Local bus interface module
These models are frequently deployed together in legacy and active Genius systems.
