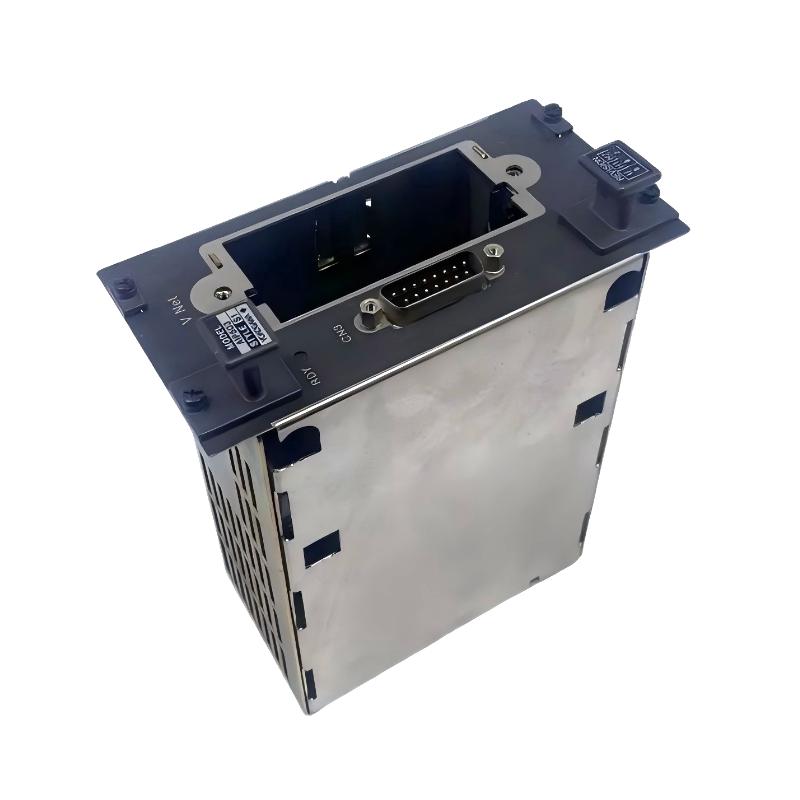

Yokogawa AIP503 V-Net Coupler Module

Applications

• Network communication interface between Yokogawa V-Net devices

• Integration of input/output modules into V-Net digital control networks

• Industrial process automation systems requiring real-time data transfer

• System expansions, upgrades, and network connectivity projects

Advantages

• Facilitates seamless communication across Yokogawa V-Net networks

• Compact and lightweight design allows flexible panel and rack integration

• Reliable data transmission ensures stable control and monitoring performance

• Ideal for industrial environments, supporting continuous operation in demanding conditions

Technical FAQs

1. What is the primary function of the AIP503 module?
   It acts as a coupler, linking I/O modules to the Yokogawa V-Net network.

2. Which systems is it compatible with?
   Designed for Yokogawa V-Net compatible DCS modules and devices.

3. Is it suitable for continuous industrial operation?
   Yes, it is engineered for 24/7 industrial use.

4. What are the module’s dimensions?
   22.5 × 100 × 115 mm, making it compact for panel or rack mounting.

5. What is the weight of the module?
   0.794 kg, light enough for easy installation yet robust in build.

6. Does it support real-time data transfer?
   Yes, it enables fast, reliable communication across V-Net devices.

7. Can it be used for system expansion?
   Yes, it is often deployed to expand or upgrade existing V-Net networks.

8. Is special wiring required?
   No, it uses standard V-Net cabling conventions for easy integration.

9. Is this module reliable in harsh industrial conditions?
   Yes, it is designed for stable performance in demanding environments.

10. Why is the AIP503 widely used?
    It ensures dependable network connectivity for Yokogawa V-Net systems, simplifying integration and maintenance.
