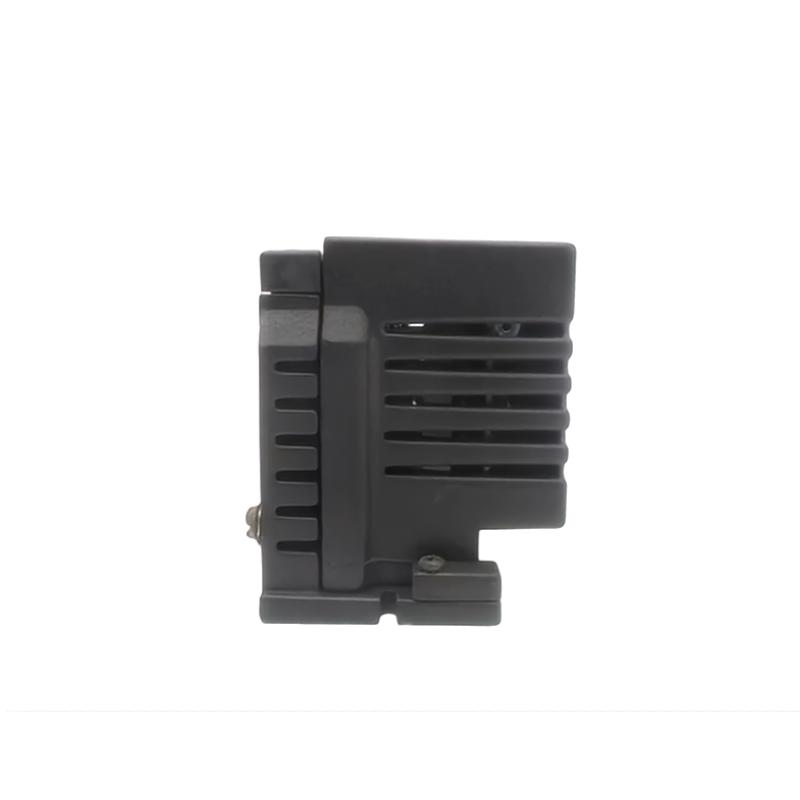

The GE IC660TBA103 is a Terminal Base Assembly engineered to serve as the field interface for discrete input signals in GE Fanuc Genius I/O distributed automation architectures. It provides secure field wiring connections for switch and sensor devices, delivering structured organization and reliable signal routing to the corresponding discrete input electronics assembly.

This terminal base simplifies installation and maintenance by separating field terminations from sensitive electronics, improving system stability and reducing the risk of wiring errors in industrial environments.

Technical Specifications

Specification	Details
Model	GE IC660TBA103
Module Type	Discrete Input Terminal Base Assembly
System Platform	GE Fanuc Genius I/O
Field Wiring Interface	Discrete input sensor connections
Terminal Style	Robust screw-clamp field terminals
Electronics Interface	Edge connector to discrete input electronics
Mounting	Plug-into Genius I/O rack / block
Dimensions (W × H × D)	224 × 90 × 100 mm
Weight	0.88 kg (approx.)
Operating Temperature	0 to 60 °C
Storage Temperature	−40 to 100 °C
Environmental Rating	Industrial, non-condensing

Function in the Genius I/O Network

The IC660TBA103 provides a structured termination point for field-side discrete input wiring, such as pushbuttons, limit switches, proximity sensors, and other binary devices. Field leads are secured at screw-clamp terminals and routed to the discrete input electronics assembly (e.g., IC660EBA103), ensuring clear separation between wiring and signal processing.

By using a dedicated terminal base:

Field wiring is more organized and easier to manage
Noise and connection issues are minimized
Electronics can be serviced without disturbing sensor wiring

Recommended Related Models

To build a complete discrete input I/O station, pair the IC660TBA103 with:

GE IC660EBA103 – Discrete input electronics assembly
GE IC660BBA103 – Complete discrete input block assembly
GE IC660BCM501 / BCM101 – Genius bus controllers
GE IC660BBS100 / BBS101 / BBS102 / BBS103 – Power supply modules

This pairing supports reliable and maintainable discrete input processing in distributed control applications.

Comparable Allen-Bradley Terminal Bases

For engineers working in multi-vendor environments, similar terminal interface devices include:

Allen-Bradley 1734-TB – POINT I/O terminal base
Allen-Bradley 5069-TB – Compact 5000 terminal base
Allen-Bradley 1794-TB – FLEX I/O terminal base

These serve similar field wiring interface functions in Allen-Bradley distributed I/O systems.

Applications

The GE IC660TBA103 is suitable for numerous field wiring scenarios, including:

Machine interlock and safety switch wiring
Limit switch and proximity sensor integration
Starter and interlock feedback connections
Remote I/O station discrete sensor panels
Test and diagnostic termination points

Its organized layout and secure terminals help reduce wiring faults and simplify troubleshooting.

Advantages

Provides structured field termination for discrete inputs
Screw-clamp terminals ensure dependable connections
Separation of wiring and electronics enables quick service
Compatible with standard Genius I/O racks and blocks
Industrial-rated for temperature and humidity conditions
Reduces installation errors and simplifies maintenance

These strengths make the IC660TBA103 a reliable choice for discrete input wiring tasks in industrial control applications.

Technical FAQs

What is the main purpose of the GE IC660TBA103?
It serves as the field wiring interface for discrete input devices in a Genius I/O node.

How do field devices connect?
Discrete sensors and switches are terminated using screw-clamp terminals.

Can the electronics assembly be removed without rewiring?
Yes — the modular design allows electronics to be replaced while field wiring remains intact.

Does it provide signal isolation?
Signal isolation is provided by the paired electronics assembly rather than by the terminal base itself.

What ambient temperatures does it support?
0 to 60 °C with industrial non-condensing humidity.

Are LEDs included on the terminal base?
Status indicators are present on the paired electronics assembly, not on the terminal base.

Is this terminal base suitable for remote cabinets?
Yes, it is designed for both centralized and remote I/O panel installations.

Does it need configuration software?
No — it is a passive wiring interface; configuration is handled at the electronics or controller level.

What types of sensors can be wired?
Common discrete sensors including limit switches, proximity detectors, and contact closures.

Why use a dedicated terminal base?
To organize wiring, improve connection quality, and allow electronics servicing without disturbing field terminations.
