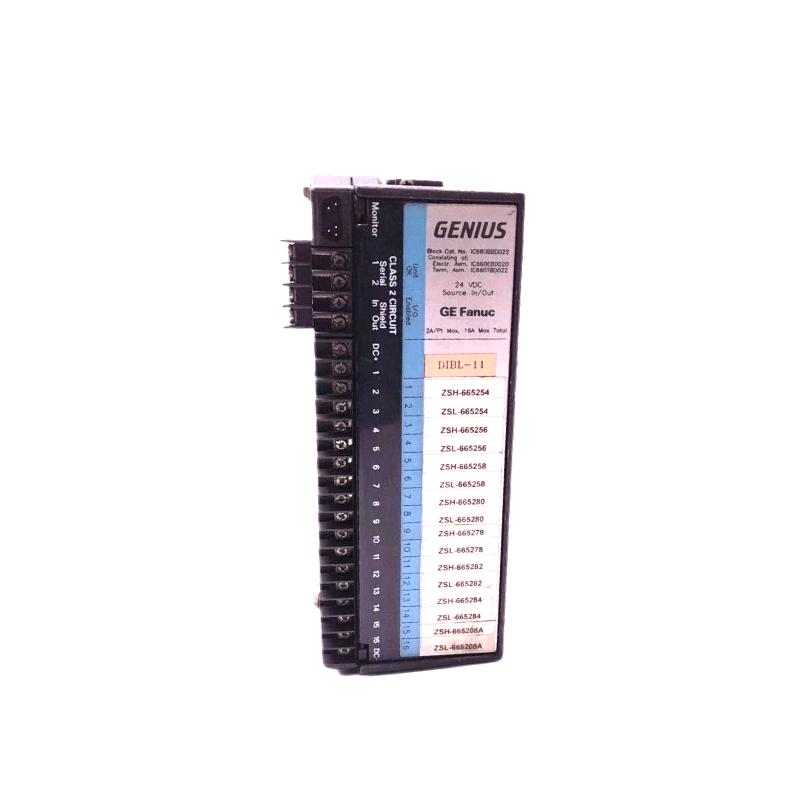

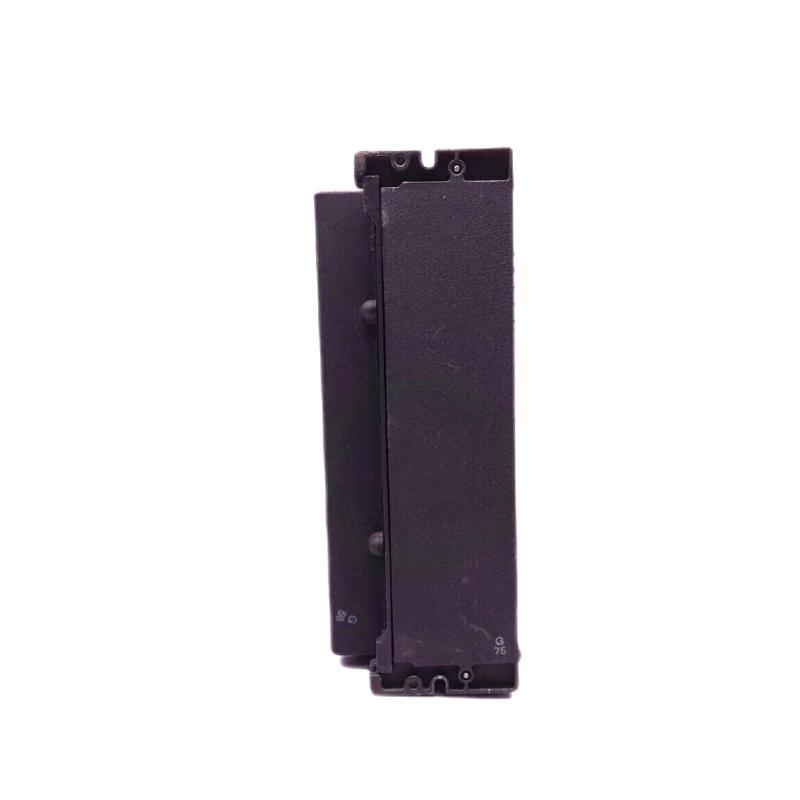

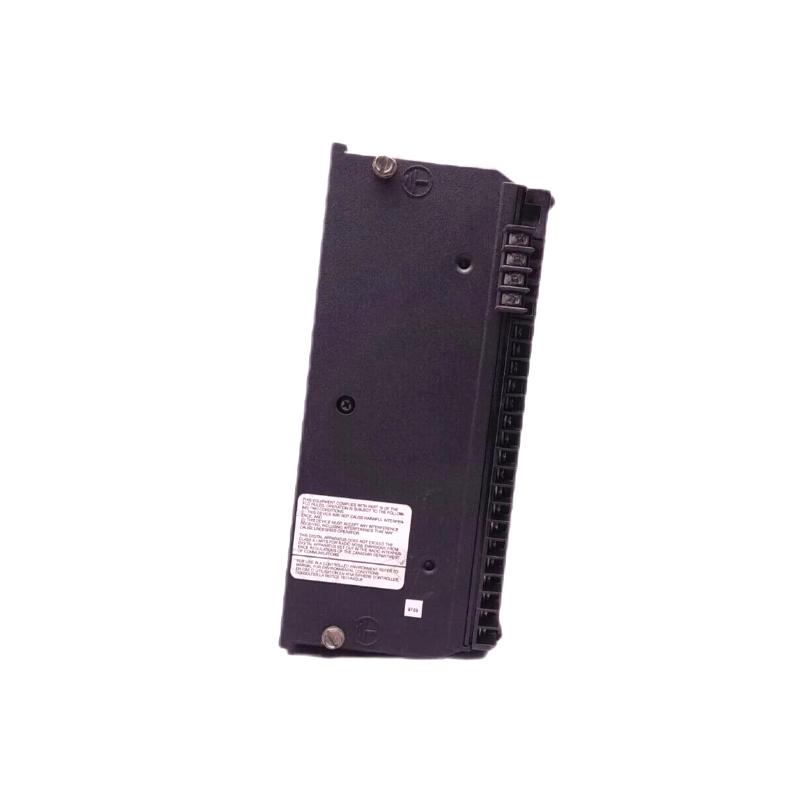

The GE IC660TBD022 is a Discrete Output Terminal Base Assembly designed to serve as the field wiring interface for discrete output devices within GE Fanuc Genius I/O distributed automation networks. This module provides a secure and clearly organized termination point for field wiring, routing signals from outputs such as relays, contactors, and indicator devices into the associated electronics assembly.
By separating field terminations from sensitive electronics, the IC660TBD022 supports faster troubleshooting, minimizes wiring errors, and enhances overall reliability in industrial control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GE IC660TBD022 |
| Module Type | Discrete Output Terminal Base Assembly |
| Compatible System | GE Fanuc Genius I/O |
| Wiring Interface | Point for discrete output device connections |
| Terminal Style | Industrial screw-clamp field terminals |
| Electronics Interface | Edge connector to discrete output electronics |
| Mounting Method | Plug-in Genius I/O rack or block |
| Dimensions (W × H × D) | 224 × 90 × 100 mm |
| Weight | 0.93 kg (approx.) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | −40 to 100 °C |
| Environmental Rating | Industrial, non-condensing |
Field Wiring Function
The IC660TBD022 terminal base provides termination points for field devices that are activated by discrete output channels, including:
-
Solenoids and actuators
-
Relay coils and contactor inputs
-
Alarm lamps and status indicators
-
Motor control feedback
-
General purpose discrete outputs
Each field conductor is secured in place using robust screw-clamp terminals, which then route the signals through the terminal base to the corresponding discrete output electronics assembly (such as IC660EBD022). This configuration creates a clear separation between field wiring and the electronics layer, improving both maintainability and signal quality.
Recommended Related Models
The IC660TBD022 is typically paired with the following Genius modules:
-
GE IC660EBD022 – Discrete output electronics assembly
-
GE IC660BLD022 – Discrete output block assembly
-
GE IC660BCM501 / BCM101 – Genius bus controller modules
-
GE IC660BBS100 / BBS101 / BBS102 / BBS103 – System power supply modules
Together, these components form a reliable distributed I/O subsystem optimized for industrial control applications.
Comparable Terminal Bases
In other automation ecosystems, similar field wiring interfaces include:
-
Allen-Bradley 1734-TB – POINT I/O terminal base
-
Allen-Bradley 5069-TB – Compact 5000 terminal base
-
Allen-Bradley 1794-TB – FLEX I/O terminal base
These terminal bases serve an equivalent role in their respective distributed I/O structures.
