Introduction

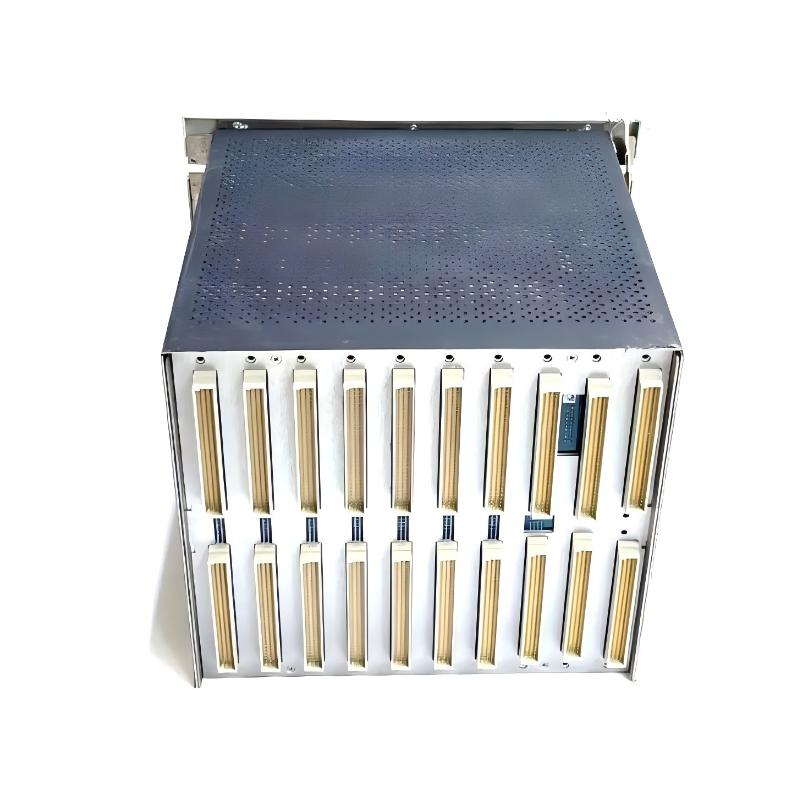

The Bently Nevada 3500/05-02-04-00-00-01 3300 XL 8 mm Preamplifier Sensor Rack provides a centralized, high-density solution for vibration monitoring in critical industrial machinery. Its 7-module design supports multiple preamplifier-equipped sensors, ensuring reliable signal transmission and accurate condition monitoring. Rugged, compact, and scalable, this rack is ideal for predictive maintenance programs and large-scale 3300 XL installations.

Technical Specifications

Specification	Details
Rack Size	12-inch (7 module slots)
Weight	4.5 kg
Sensor Type	8 mm Preamplifier Proximity Sensor
Signal Output	3300 XL standard voltage output
Compatibility	3300 XL Monitoring Systems
Operating Environment	Industrial, high-vibration areas
Temperature Range	-20°C to 80°C (typical)
Modules Supported	Up to 7 sensor/preamplifier modules

Recommended Related Models

Bently Nevada 330180-50-05 3300 XL 8 mm Preamplifier Sensor
Bently Nevada 330130-080-02-05 3300 XL Standard Extension Cable
Bently Nevada 330104-01-08-50-01-CN 3300 XL 8 mm Proximity Probe

Popular Related Models

Bently Nevada 330180-90-05 3300 XL 8 mm Preamplifier Sensor
Bently Nevada 330130-085-00-00 3300 XL Standard Extension Cable
Bently Nevada 330101-00-20-05-02-05 3300 XL 8 mm Proximity Probe

Applications

The Bently Nevada 3500/05-02-04-00-00-01 3300 XL 8 mm Preamplifier Sensor Rack is engineered for centralized vibration monitoring in industrial plants. Common applications include:

Turbines, compressors, and pumps in power generation facilities
Oil & gas, petrochemical, and refinery equipment monitoring
Rotating machinery condition monitoring for predictive maintenance
Industrial manufacturing lines requiring high-density sensor integration
Centralized 3300 XL system setups in control rooms

Advantages

High-Density Rack Design: Accommodates 7 module slots in a 12-inch form factor.
Integrated Preamplifiers: Ensures strong signal integrity for extended cable runs.
Reliable Industrial Performance: Rugged construction designed for vibration and harsh environments.
Simplified Installation: Rack-mount design organizes multiple sensors for efficient setup.
System Scalability: Supports expansion of 3300 XL monitoring networks with minimal footprint.

Technical FAQs

What is the rack size?
12-inch (7 module slots).
What is the weight of the rack?
4.5 kg.
Does it include preamplifiers?
Yes, all sensor modules in the rack include integrated preamplifiers.
Is it compatible with standard 3300 XL systems?
Yes, fully compatible.
Can it handle long cable extensions?
Yes, integrated preamplifiers ensure signal integrity.
Is the rack suitable for industrial environments?
Yes, built to withstand vibration, temperature variations, and mechanical stress.
How many modules can the rack hold?
Up to 7 sensor/preamplifier modules.
Does it support predictive maintenance applications?
Yes, ideal for continuous vibration monitoring and early fault detection.
What type of signals are output?
Standard 3300 XL proximity probe voltage signals.
Is it easy to install in control rooms?
Yes, the compact 12-inch rack design allows for efficient installation and wiring.
