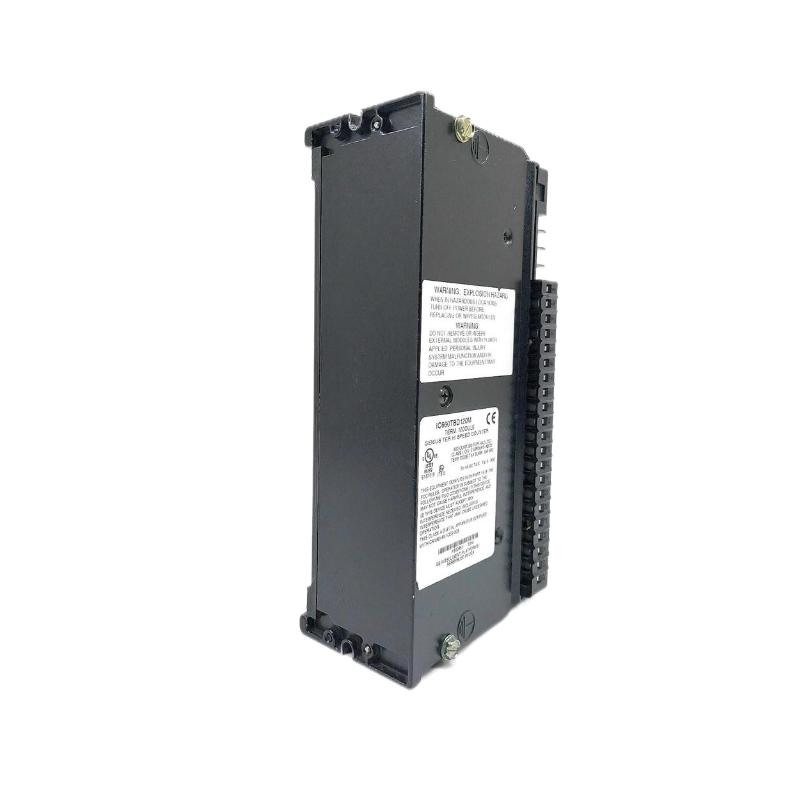

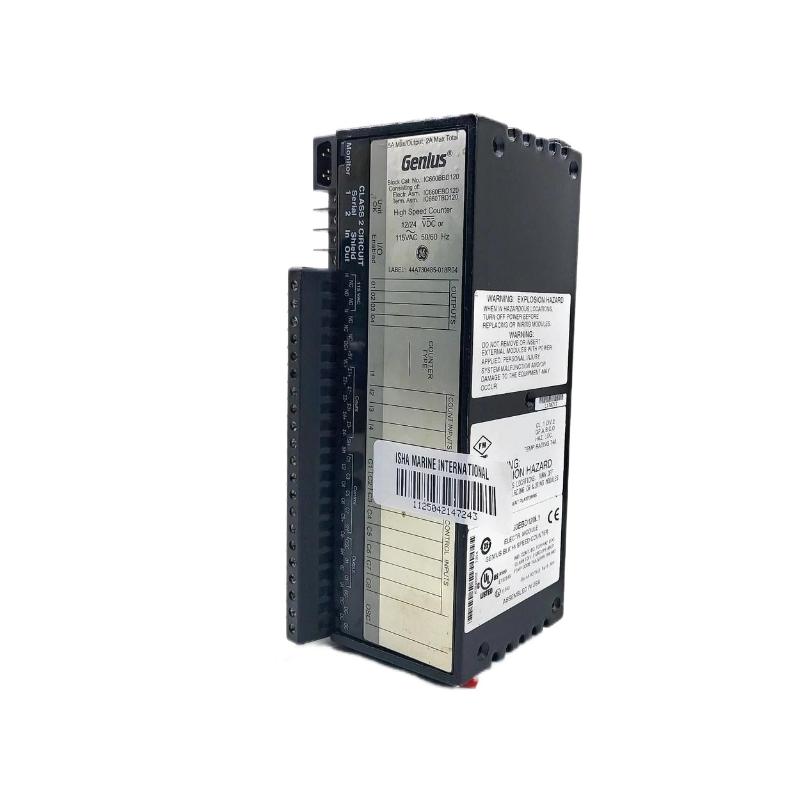

GE IC660TBD120 Discrete Input Module for Series 90 Distributed Control and Industrial Automation Systems
GE IC660TBD120 Discrete Input Module for Series 90 Distributed Control and Industrial Automation Systems
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IC660TBD120 Product Origin:USA Product Dimensions:145 × 98 × 66 mm Product Weight:0.65 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC660TBD120 Discrete Input Module is engineered for industrial control environments where signal accuracy and long-term stability are critical. Designed as part of the GE Series 90 distributed I/O platform, this module provides reliable digital input processing for field devices operating under continuous and often harsh conditions.
Rather than focusing on short-lived performance peaks, the IC660TBD120 emphasizes predictable behavior, electrical resilience, and compatibility with existing control architectures. It is commonly selected for both system expansion and replacement scenarios where maintaining operational continuity is essential.
Technical Specifications – Electrical Characteristics and Physical Data
Specification
Details
Module Type
Discrete Input Module
Input Signal Type
Digital (ON/OFF)
Nominal Input Voltage
120 VAC
Input Voltage Range
85–132 VAC
Number of Input Channels
16 Inputs
Input Frequency
47–63 Hz
Electrical Isolation
Channel-to-channel isolation
Typical Response Time
< 20 ms
Mounting Method
Base-mounted I/O block
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions (H × W × D)
Approx. 145 × 98 × 66 mm
Weight
Approx. 0.65 kg
The robust enclosure and terminal design allow the module to be installed confidently in industrial cabinets where vibration, electrical noise, and long duty cycles are expected.
Recommended Related Models – Commonly Paired IC660 Components
IC660TBD025 – 24 VDC discrete input module
IC660TBD021 – Standard digital input module
IC660TBA120 – 120 VAC discrete output module
IC660TBA025 – DC transistor output module
IC660PBB100 – Power supply module for IC660 I/O blocks
These models are frequently combined to build balanced AC/DC input and output configurations in distributed systems.
Popular GE Models – Widely Used in Control System Architectures
GE IC693CPU374 – Series 90-30 CPU Module
GE IC695CPU315 – RX3i Controller
GE IC695ETM001 – Ethernet Communication Module
GE IC693MDL330 – AC Output Module
GE IC695ALG608 – Analog Input Module
In many facilities, IC660 field I/O is retained while higher-level controllers are upgraded.
Applications – Where the IC660TBD120 Delivers Value
Industrial machinery and process equipment
Power generation and auxiliary systems
Water and wastewater treatment plants
Oil & gas balance-of-plant control
Material handling and conveyor systems
Replacement for existing Series 90 AC input modules
Its ability to handle AC signals directly makes it especially useful in legacy installations with existing field wiring.
Advantages – Practical Benefits for Engineers and Buyers
Direct support for 120 VAC field signals
Proven reliability in long-running industrial systems
Strong resistance to electrical noise and transients
Simplifies maintenance by preserving existing wiring
Reduces engineering effort during replacement projects
Well-suited for spare parts and lifecycle support strategies
For plants focused on minimizing risk and downtime, the IC660TBD120 offers a dependable and familiar solution.
Technical FAQs – Clear Answers for Real-World Use
1. What type of input signals does the IC660TBD120 support?
It supports 120 VAC discrete input signals from switches, contacts, and relays.
2. How many input points are available?
The module provides 16 independent digital input channels.
3. Is this module suitable for direct replacement?
Yes, it is commonly used as a direct replacement in Series 90 distributed I/O systems.
4. Does it include electrical isolation?
Yes, channel-to-channel isolation helps protect the control system from voltage disturbances.
5. What is the typical response time?
Typical response time is under 20 milliseconds, suitable for most industrial applications.
6. Can it operate continuously in control cabinets?
Yes, it is designed for continuous-duty industrial environments.
7. Is special configuration software required?
No additional configuration tools are required beyond the host controller.
8. What industries commonly use this module?
Manufacturing, utilities, oil & gas, and water treatment industries.
9. Can it coexist with DC input modules in the same system?
Yes, AC and DC IC660 modules are commonly mixed within the same distributed I/O architecture.
10. Why choose the IC660TBD120 instead of redesigning the system?
It preserves existing field wiring, minimizes downtime, and reduces engineering risk and cost.
