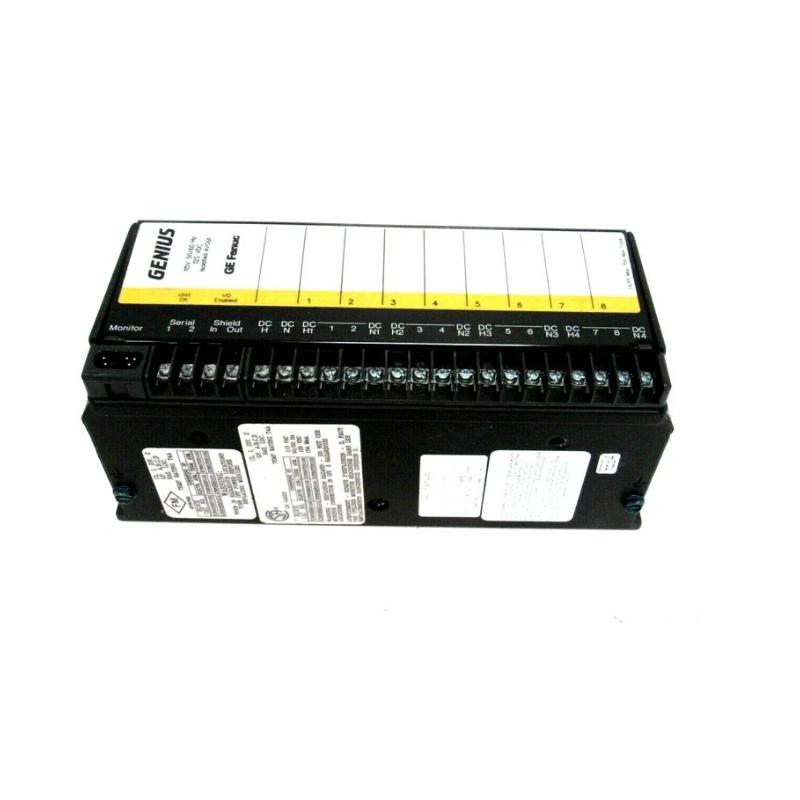

The GE IC660TSS100 Terminal Assembly is a rugged and industrial‑grade terminal assembly designed for use in GE Fanuc Genius I/O distributed PLC systems. Built to deliver dependable field wiring connectivity with clear termination and robust performance, this module forms the electrical bridge between field devices and isolated I/O blocks such as the GE IC660BBS100 or IC660BBS101. Its versatile power support and durable assembly make it suited for a wide range of manufacturing and process control environments where reliability and ease of maintenance are critical.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC660TSS100 |
| Module Type | Terminal Assembly (Genius I/O) |
| Compatible I/O Blocks | IC660BBS100 / IC660BBS101 series |
| Terminal Connections | Screw terminals for secure field wiring |
| Operating Voltage | 115 VAC or 125 VDC (control power) |
| Power Consumption | ~10 W typical |
| Mounting Type | DIN rail mount |
| Operating Temp. Range | 0 °C – 60 °C |
| Storage Temp. Range | –40 °C – 100 °C |
| Humidity Tolerance | 5 % – 95 % (non‑condensing) |
| Vibration Resistance | 5 – 10 Hz industrial rating |
| Weight | ~500 g (≈0.5 kg) |
| Dimensions (approx) | 224 mm × 89 mm × 100 mm (L×W×H) (standard Genius I/O footprint) |
Recommended Related Modules
-
GE IC660BBD101 I/O Block – Isolated 8‑circuit I/O block compatible with this terminal assembly.
-
GE IC660BSM120 Bus Switching Module – Expand I/O bus capacity.
-
GE IC660EBS100H Electronics Assembly – Electronics counterpart for I/O processing.
-
Other I/O blocks and electronics assemblies in the GE Fanuc Genius I/O family complete the distributed I/O stack.
