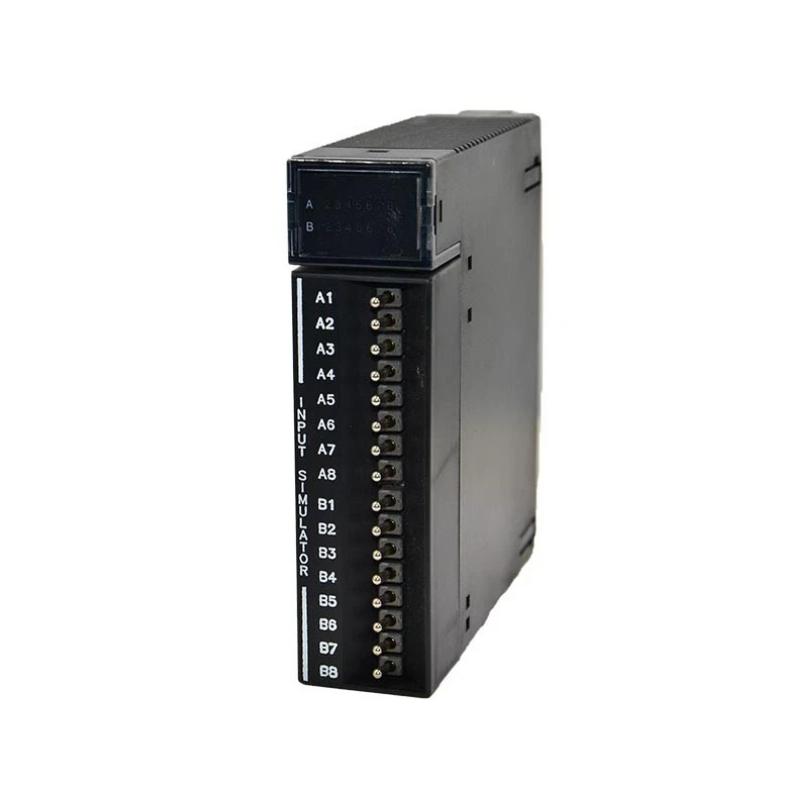

The GE IC693ACC300 is an industrial‑grade Input Simulator Module designed for the GE Fanuc Series 90‑30 PLC platform. It provides a flexible means to emulate digital input signals in both development and maintenance environments, allowing engineers to test logic routines, validate system behavior, and simulate field conditions without needing actual field devices. With 8 or 16 selectable input points and integrated LED feedback, it’s a practical tool for commissioning, training, and troubleshooting control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC693ACC300 |
| Module Type | Input Simulator Module |
| PLC Series Compatibility | GE Fanuc Series 90‑30 |
| Input Points | 8 / 16 selectable points |
| Input Method | Two‑position toggle switches |
| Visual Feedback | Green LED for each switch |
| Power Source | DC supply |
| Voltage Range | 18 – 30 V DC |
| Operating Temperature | 0 °C – 55 °C |
| Storage Temperature | –40 °C – 85 °C |
| Relative Humidity | 5 % – 95 % (non‑condensing) |
| Shock Resistance | 15 G @ 11 ms |
| Vibration Resistance | 1 G @ 9–150 Hz |
| Dimensions (W × H × D) | Approx. 60 mm × 200 mm × 172 mm (subject to revision) |
| Weight | ~0.17 kg (0.38 lbs) |
| Mounting | Fits any I/O slot in 5‑slot/10‑slot baseplates |
| Lifecycle Status | Discontinued / legacy module |
Recommended Related Modules
-
GE IC693ACC301 – Auxiliary battery interface for Series 90‑30 racks.
-
GE IC693ACC302A – High‑capacity backup battery module.
-
Other Series 90‑30 discrete I/O modules (e.g., isolated inputs, analog I/O, relays) to expand your PLC system.
