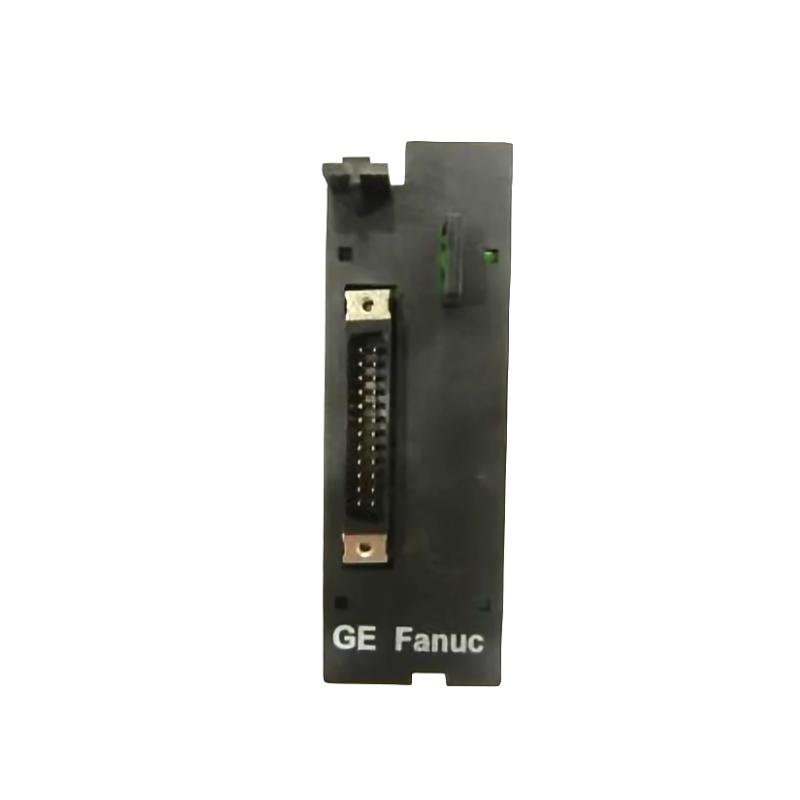

The GE IC693ACC334 is a terminal faceplate accessory specifically designed to streamline field wiring for compatible I/O modules in GE Fanuc / Emerson PACSystems RX3i and Series 90‑30 PLC systems. Instead of using traditional screw‑type terminal blocks, this faceplate provides a 24‑pin male Fujitsu connector that simplifies installation and reduces wiring complexity for up to 20 screw‑type I/O modules. Engineers appreciate its compact profile and durable construction for efficient cabinet builds and quick field swaps.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC693ACC334 |
| Module Type | I/O Module TBQC Faceplate |
| System Compatibility | GE Fanuc PACSystems RX3i & Series 90‑30 PLCs |
| Primary Function | Replace screw terminal blocks with quick‑connect faceplate |
| Connector Type | 24‑pin male Fujitsu |
| Supports Module Types | Up to 20 screw‑type I/O modules |
| Cable Compatibility | Works with unshielded cables (e.g., 0.5 m–3 m lengths) |
| Operating Temp. | –20 °C to +60 °C |
| Storage Temp. | –40 °C to +85 °C |
| Dimensions (approx.) | 75 mm × 30 mm × 15 mm (standard low‑profile faceplate) |
| Weight (approx.) | ~0.04 kg (40 g) |
| Mounting | Direct panel or module front installation |
| Lifecycle Status | Legacy / aftermarket available |
Recommended Related Components
-

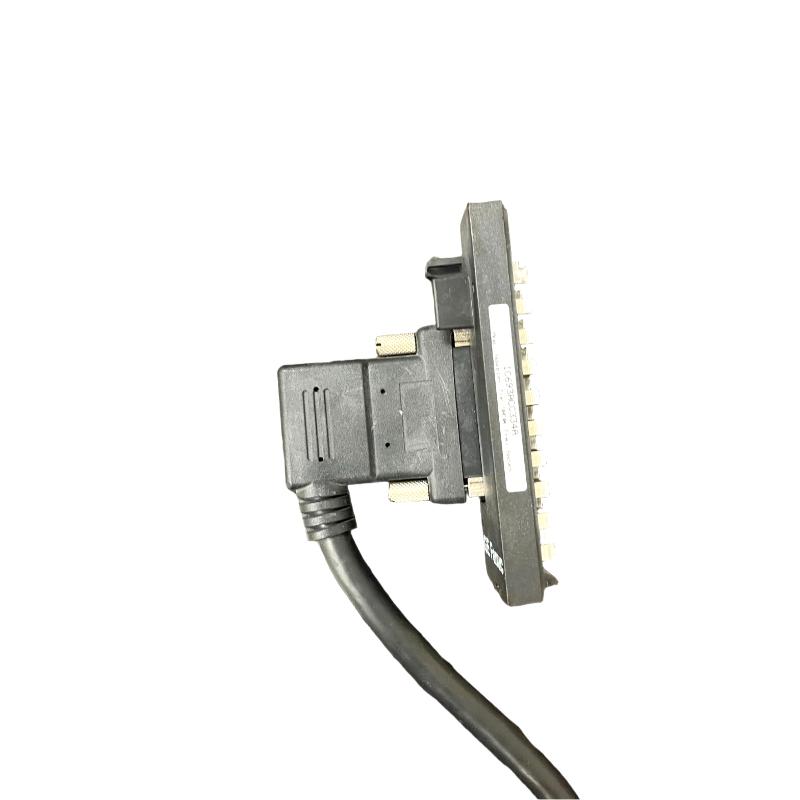

IC693CBL334 – Series 90‑30 I/O connector cable (0.5 m, 24‑pin) that pairs with this faceplate.
-
IC693ACC301 – Lithium backup battery for Series 90‑30 PLCs.
-

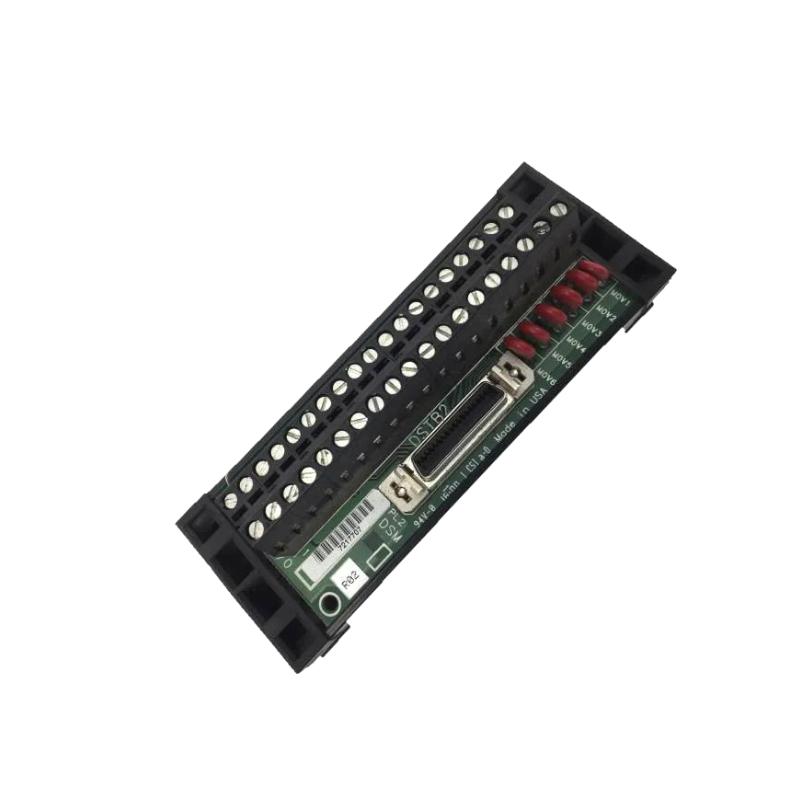

I/O interface accessories such as TBQC bases (e.g., IC693ACC329, IC693ACC332).
-
Discrete and analog I/O modules for full PLC installation.
