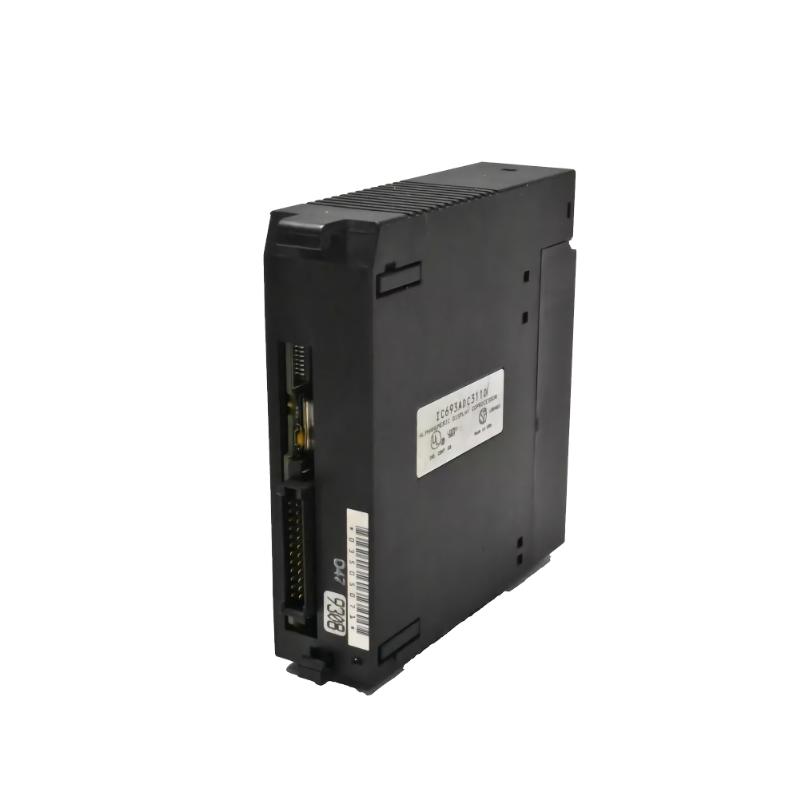

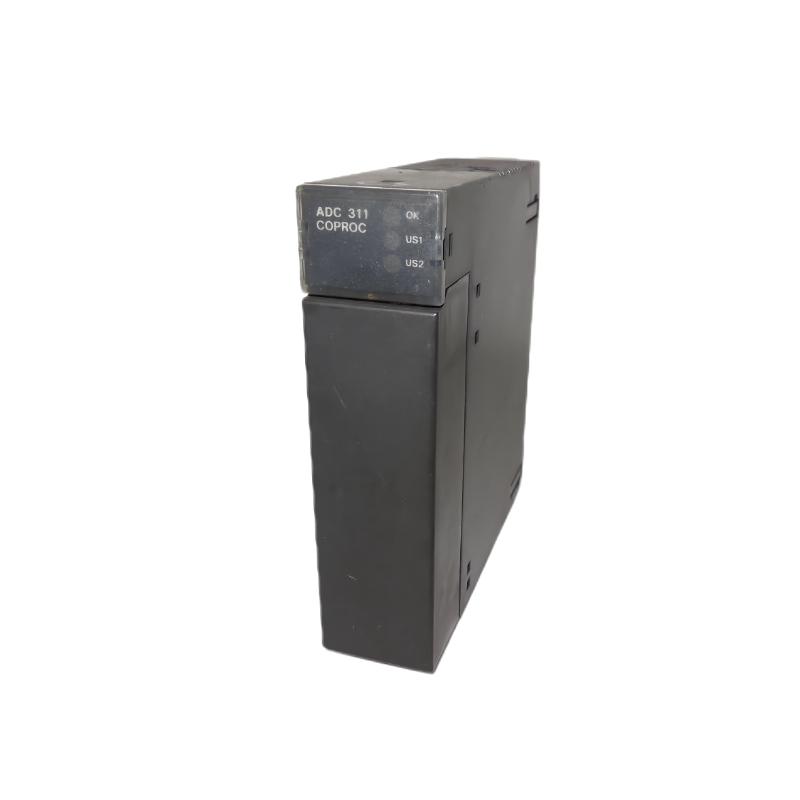

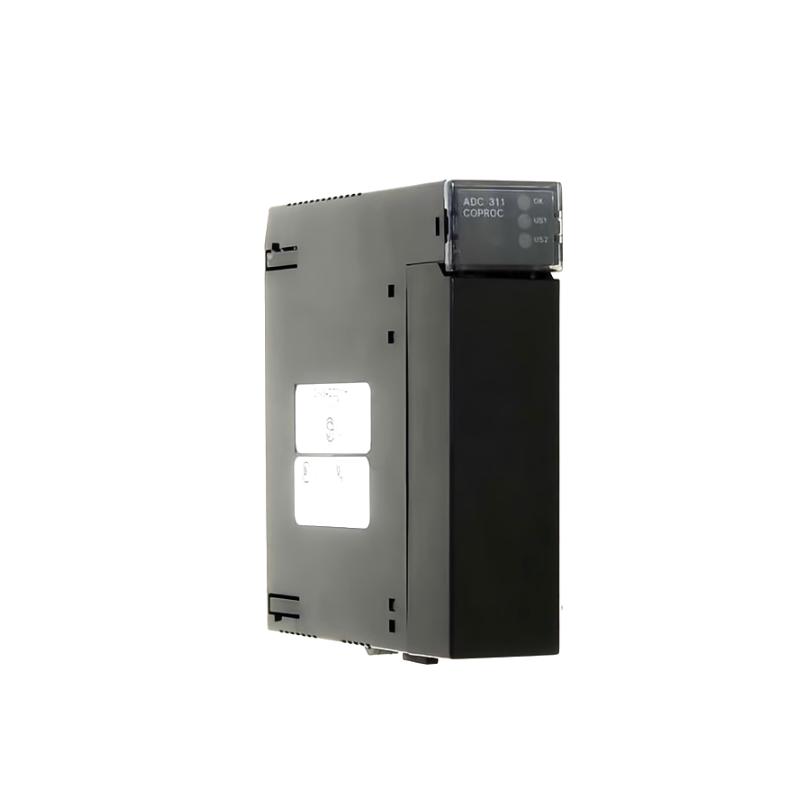

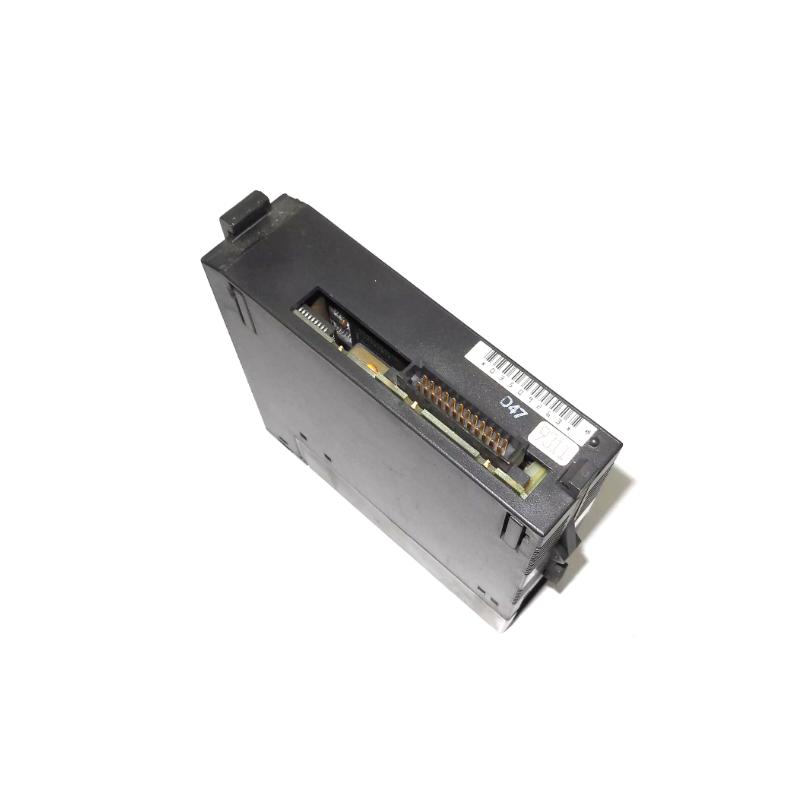

The GE IC693ADC311 is a precision analog input module designed for Series 90-30 PLC systems where stable signal acquisition and dependable data conversion are essential. Built to handle real-world industrial signals, this module translates analog process values into reliable digital data that control strategies can trust.

Whether used in continuous processes or monitoring-focused applications, IC693ADC311 fits naturally into systems that demand consistency, repeatability, and long-term operational confidence. It is especially valued in installations where analog accuracy directly impacts product quality or process efficiency.

Technical Specifications

Parameter	Specification
Product Type	Analog Input Module
PLC Platform	GE Fanuc Series 90-30
Number of Inputs	8 Analog Channels
Supported Signal Types	Voltage and Current
Resolution	12-bit
Input Isolation	Channel-to-System Isolation
Operating Temperature	0°C to +60°C
Storage Temperature	-20°C to +70°C
Dimensions (H × W × D)	102 × 35 × 120 mm
Weight	Approx. 0.32 kg

Recommended Related Models

The IC693ADC311 is commonly combined with the following Series 90-30 components to form a balanced and serviceable control system:

IC693CPU374 – High-performance CPU for analog-intensive applications
IC693CPU363 – Proven processor for general process control
IC693PWR330 – Standard power supply for stable analog performance
IC693CHS391 – 10-slot baseplate for mixed I/O configurations

These pairings help maintain signal integrity while supporting future system expansion.

Popular GE PLC Models

The following Series 90-30 modules are frequently installed alongside IC693ADC311 in industrial environments:

IC693CPU350
IC693CPU363
IC693CPU374
IC693MDL740
IC693ALG223

They remain widely used due to their predictable behavior and long-term field reliability.

Applications

The GE IC693ADC311 is well suited for applications where accurate analog measurement is critical, including:

Temperature and pressure monitoring systems
Flow measurement in water and wastewater facilities
Energy management and power monitoring
Chemical and batch process control
Retrofit projects replacing aging analog I/O hardware

It enables precise visibility into the process without adding unnecessary system complexity.

Advantages

High Signal Accuracy – Ensures dependable conversion of analog values
Flexible Input Support – Handles common industrial voltage and current signals
Stable Long-Term Performance – Designed for continuous operation
Seamless Integration – Fully compatible with Series 90-30 architecture
Maintenance-Friendly Design – Simplifies troubleshooting and replacement

This module delivers clarity where raw process data matters most.

Technical FAQs

What is the main function of IC693ADC311?
It converts analog field signals into digital data for Series 90-30 PLC processing.
How many analog channels does the module provide?
It supports eight independent analog input channels.
Which signal types are supported?
Standard industrial voltage and current signals are supported.
Is channel isolation included?
Yes, the module provides isolation to protect system electronics.
Does it require special configuration software?
No, standard Series 90-30 configuration tools are sufficient.
Can it be used in retrofit projects?
Yes, it is commonly used to upgrade legacy analog input systems.
Does it affect PLC scan time?
Properly configured, its impact on scan time is minimal.
Is it suitable for continuous process applications?
Yes, it is designed for stable, long-term analog monitoring.
What happens if an input signal is lost?
System behavior depends on PLC logic and configured diagnostics.
Why choose IC693ADC311 over generic analog modules?
It offers native compatibility, proven reliability, and predictable performance within Series 90-30 systems.
