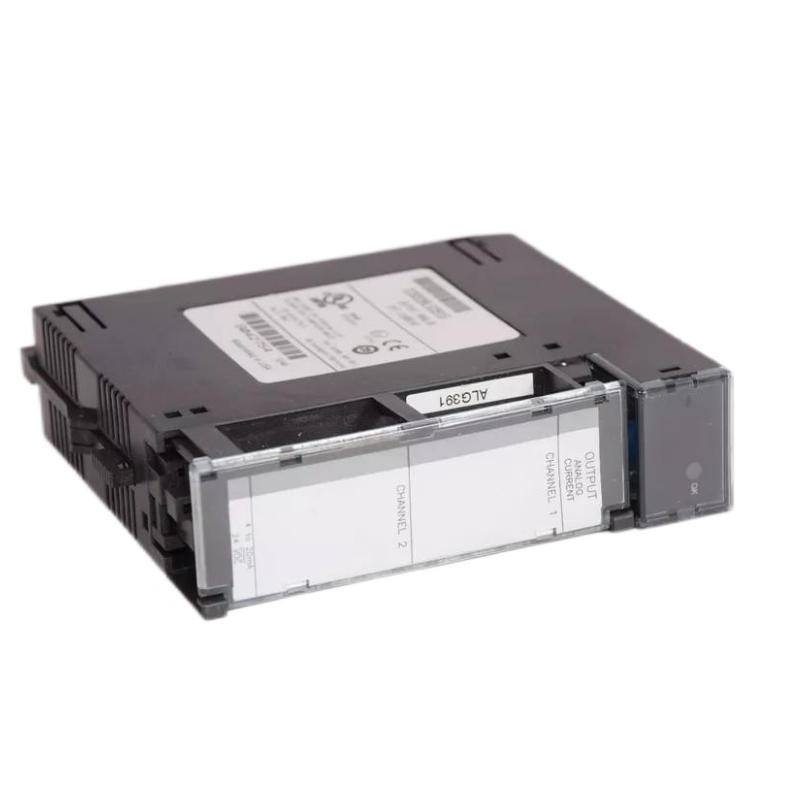

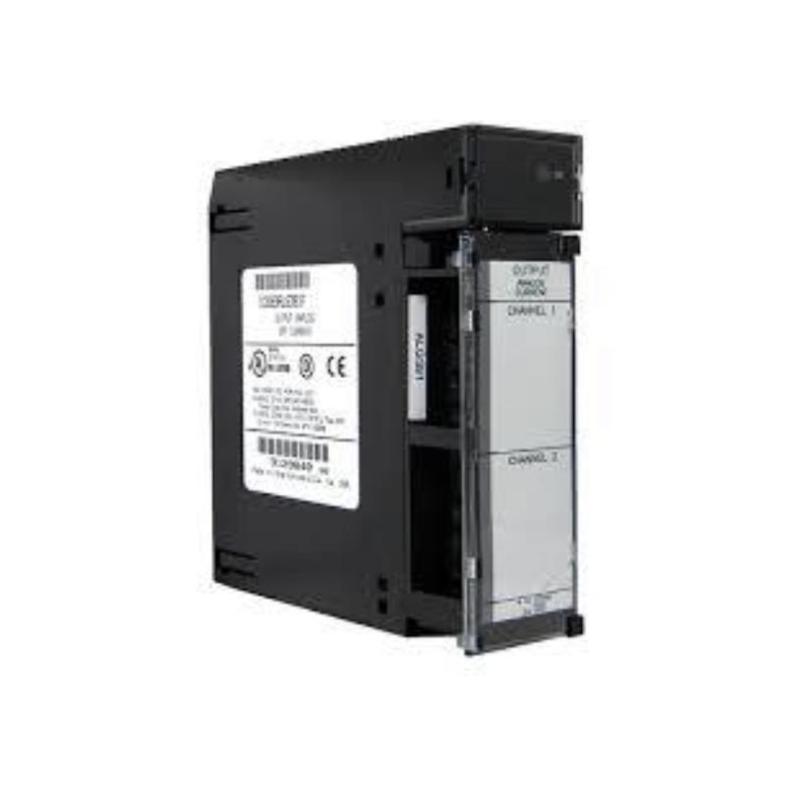

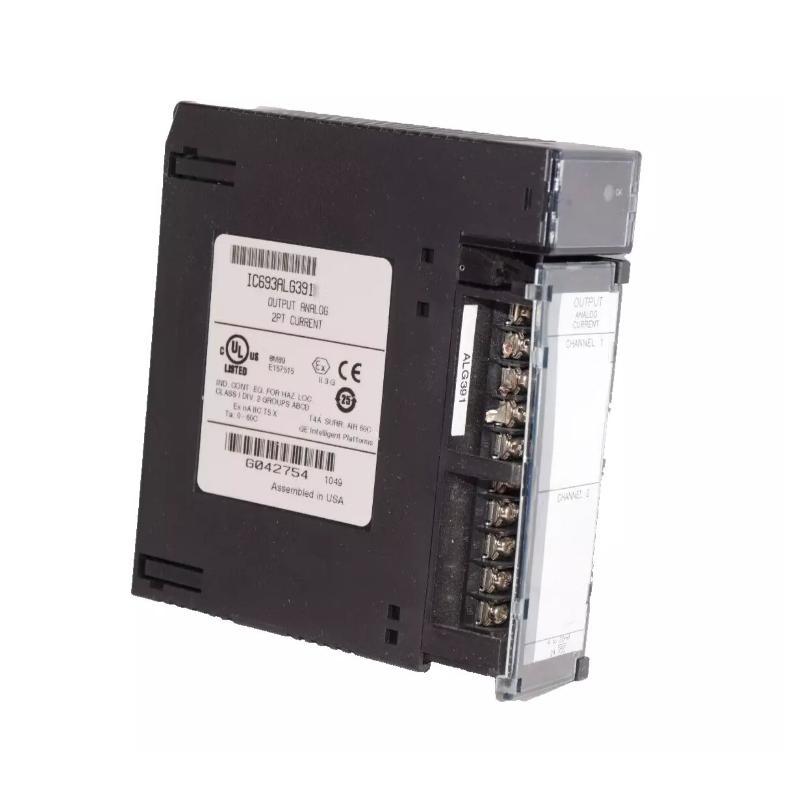

IC693ALG391 (1) IC693ALG391 (2) IC693ALG391 (3) IC693ALG391 (4)

The GE IC693ALG391 is an advanced 8-channel analog output module for Series 90-30 PLC systems, engineered for applications demanding both high speed and enhanced accuracy. Designed to handle multiple analog control loops simultaneously, it converts digital commands into precise voltage or current outputs, enabling reliable control of actuators, valves, motors, and other analog devices.

Ideal for complex industrial processes, the IC693ALG391 ensures tight process regulation and consistent operation, even in multi-channel, high-demand environments, making it a preferred choice for process engineers and automation integrators.

Technical Specifications

Specification	Details
Product Type	High-Speed Analog Output Module
PLC Platform	GE Fanuc Series 90-30
Number of Outputs	8 Channels
Supported Output Signals	0–20 mA, 4–20 mA, 0–10 V
Resolution	14-bit DAC for enhanced precision
Accuracy	±0.1% of full scale
Update Rate	Up to 2 ms per channel
Load Requirements	Voltage: ≥2 kΩ, Current: ≤500 Ω
Operating Temperature	0°C to +60°C
Storage Temperature	-20°C to +70°C
Dimensions (H × W × D)	102 × 70 × 120 mm
Weight	Approx. 0.58 kg

Recommended Related Models

The IC693ALG391 is frequently paired with the following Series 90-30 components for high-performance analog control:

IC693CPU374 – High-end CPU for multiple high-speed analog loops
IC693ADC311 – Analog input module for precise feedback and monitoring
IC693PWR330 – Stable power supply to maintain consistent outputs
IC693CHS397 – Rack/baseplate supporting high-density I/O configurations

This combination ensures synchronized, accurate, and reliable multi-channel analog control.

Popular GE PLC Models

The IC693ALG391 is commonly used alongside these Series 90-30 modules:

IC693CPU350
IC693CPU363
IC693CPU374
IC693MDL740
IC693ALG390

It is often selected when applications require both more precise analog outputs and high-speed performance in one module.

Applications

The GE IC693ALG391 excels in applications requiring high-speed, high-accuracy multi-channel analog control, such as:

Chemical, pharmaceutical, and food & beverage process automation
Multi-valve and multi-actuator control systems
Motor and motion control in automated manufacturing lines
Laboratory automation requiring precise, simultaneous outputs
Retrofitting legacy systems for higher performance and accuracy

Its 8-channel design and enhanced accuracy make it ideal for complex industrial environments where every millisecond and milliamp counts.

Advantages

High Channel Density – 8 independent analog outputs for compact, multi-loop control
Enhanced Accuracy – ±0.1% full-scale for precise process regulation
Fast Response – Up to 2 ms per channel for high-speed loops
Seamless Integration – Fully compatible with Series 90-30 PLC systems
Robust Long-Term Performance – Designed for continuous operation in demanding environments

This module provides confidence in high-speed, multi-channel analog control applications.

Technical FAQs

What is the main purpose of IC693ALG391?
To provide 8 high-speed analog outputs with enhanced accuracy for Series 90-30 PLC systems.
How many output channels are available?
Eight independent channels.
Which signal types are supported?
0–10 V, 0–20 mA, and 4–20 mA.
What is the resolution of the module?
14-bit DAC for precise analog signal conversion.
What is the output accuracy?
±0.1% of full-scale output.
What is the update rate per channel?
Up to 2 milliseconds per channel.
Does it require additional configuration software?
Standard Series 90-30 configuration tools are sufficient.
Is it suitable for multi-actuator or multi-valve control?
Yes, its 8 channels and fast response time are ideal for such applications.
Can it be used for retrofitting older PLC systems?
Yes, particularly when enhanced accuracy and high-speed performance are needed.
Why choose IC693ALG391 over IC693ALG390?
It provides higher resolution and tighter accuracy (±0.1%) for applications where precision is critical.
