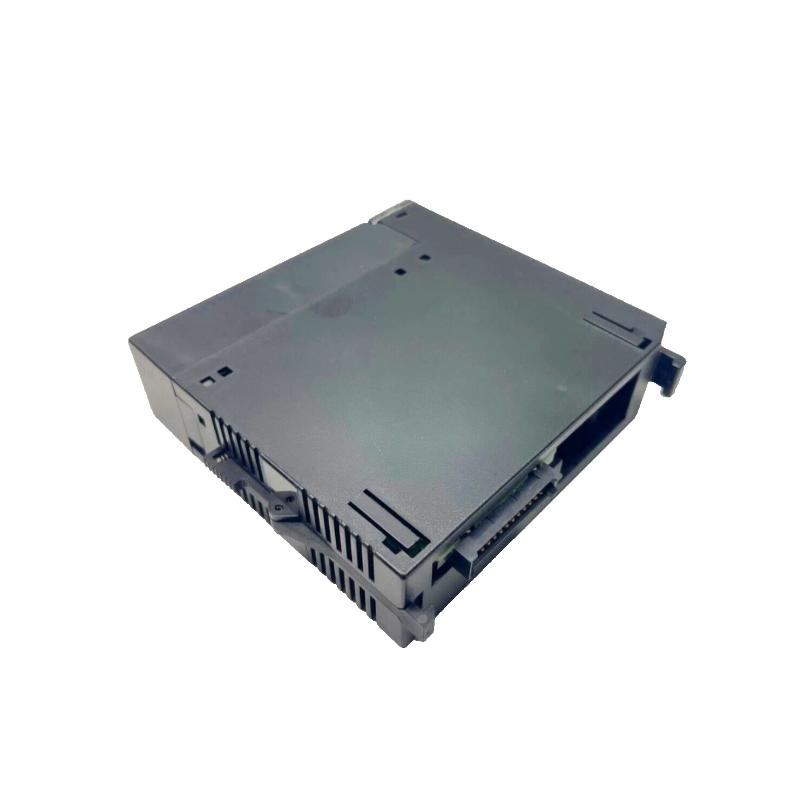

The GE IC693BEM321 is an enhanced Bus Expansion Module (BEM) designed for GE Series 90-30 PLC systems. It provides efficient expansion of I/O racks while supporting faster communication and improved module density. Engineers rely on the IC693BEM321 to increase system capacity without adding additional CPUs, simplifying complex automation setups and ensuring reliable control performance.

Ideal for industrial applications where scalable, modular I/O expansion is critical, this module enables seamless integration of additional digital, analog, and communication modules.

Technical Specifications

Specification	Details
Product Type	Bus Expansion Module (BEM)
PLC Platform	GE Fanuc Series 90-30
Function	Expand I/O racks with improved module density
Supported Modules	Compatible with standard 90-30 digital, analog, and communication modules
Communication Interface	Backplane bus connection to main CPU
Maximum Expansion	Supports up to 8 additional I/O modules per BEM321
Operating Temperature	0°C to +60°C
Storage Temperature	-20°C to +70°C
Dimensions (H × W × D)	102 × 70 × 120 mm
Weight	Approx. 0.56 kg

Recommended Related Models

The IC693BEM321 is typically used with:

IC693CPU350 / IC693CPU374 – Main CPUs managing expanded racks
IC693CHS391 / IC693CHS397 – Baseplates supporting high-density module installation
IC693PWR330 – Reliable power supply for expanded racks
IC693ALG / IC693ADC / IC693ACC series – Analog and digital modules compatible with BEM321

This combination allows flexible and reliable expansion of I/O modules while maintaining system performance and stability.

Popular GE PLC Models

The IC693BEM321 is widely deployed alongside:

IC693CPU350
IC693CPU363
IC693CPU374
IC693MDL740
IC693CHS391 / IC693CHS397

It is the preferred choice for engineers who need scalable I/O growth without increasing CPU count.

Applications

The GE IC693BEM321 is suitable for modular I/O expansion in industrial automation:

Adding digital, analog, or communication modules to existing PLC systems
Large-scale process control with multiple distributed I/O racks
Multi-valve, multi-actuator, and sensor integration in manufacturing systems
Retrofitting older Series 90-30 PLCs to increase capacity
Laboratory, test, and production automation requiring flexible I/O arrangements

It ensures efficient, reliable, and scalable system expansion.

Advantages

Scalable I/O Expansion – Easily increases the number of modules in a Series 90-30 system
High Compatibility – Works with standard GE 90-30 CPUs and modules
Compact Design – Fits standard racks without increasing footprint
Stable Communication – Maintains reliable connectivity with the CPU
Cost-Effective Solution – Eliminates the need for additional CPUs while expanding capacity

This module provides efficient growth of industrial automation systems with minimal effort.

Technical FAQs

What is the primary purpose of IC693BEM321?
To expand I/O racks in Series 90-30 PLC systems.
How many additional modules can be connected?
Up to 8 standard 90-30 I/O modules per BEM.
Which PLC CPUs are compatible?
Series 90-30 CPUs, including IC693CPU350, 363, and 374.
What types of modules are supported?
Digital, analog, and communication modules compatible with 90-30 systems.
Does it require a separate power supply?
No, it shares power from the main rack or dedicated 90-30 supply.
What is the operating temperature range?
0°C to +60°C.
Can it be used for remote I/O racks?
Yes, provided backplane communication is maintained.
Does it impact CPU scan time?
Minimal impact when properly configured.
Is it suitable for upgrading older PLC systems?
Yes, ideal for increasing I/O capacity without replacing CPUs.
Why choose IC693BEM321 over adding extra CPUs?
It allows modular expansion of I/O while saving cost, space, and complexity.
