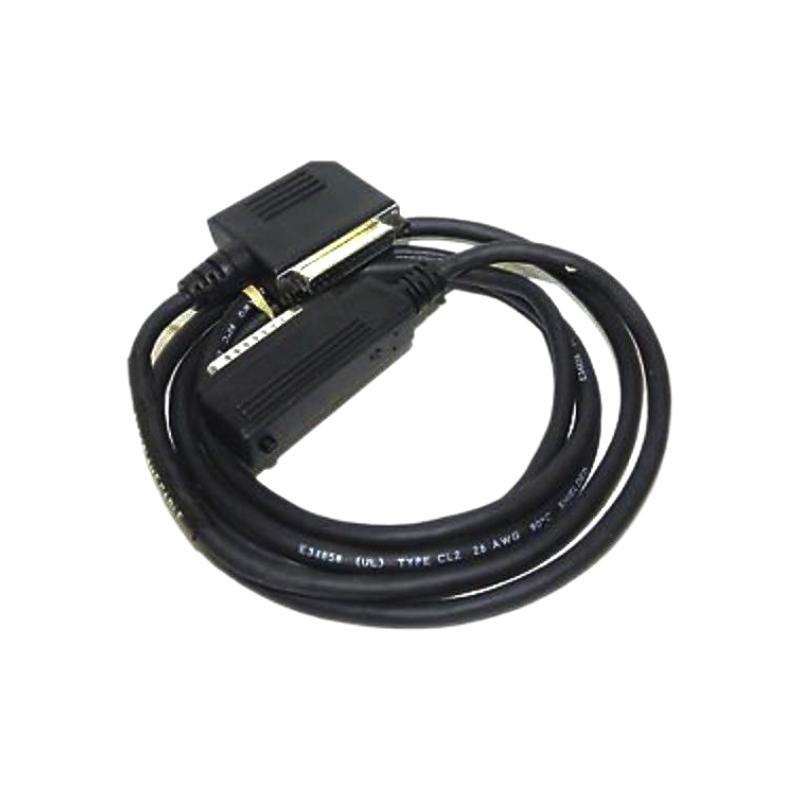

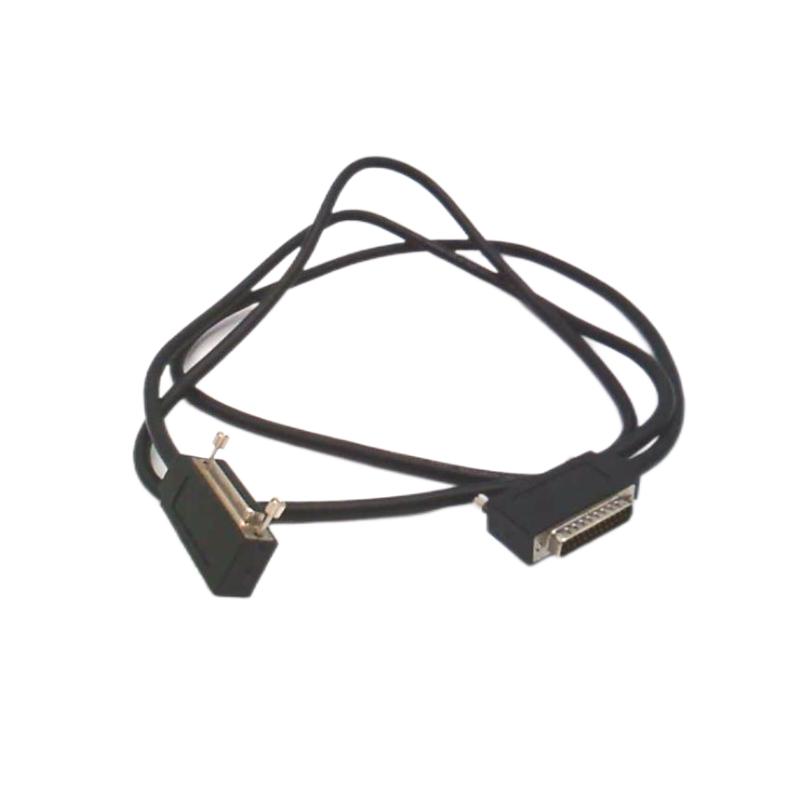

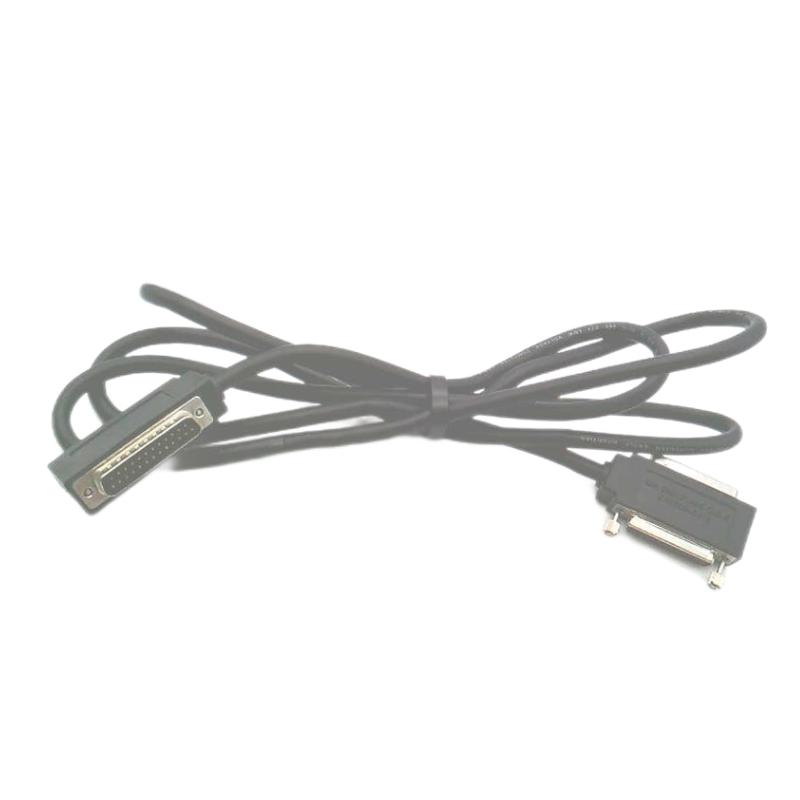

The GE IC693CBL301 is a high-quality serial communication cable designed for GE Series 90-30 PLC systems. It provides reliable and stable RS-232 communication between CPU modules and programming devices or peripheral equipment.

This cable is essential for programming, diagnostics, and monitoring, ensuring smooth data transfer in industrial automation environments. The IC693CBL301 is built for industrial durability, making it ideal for both field and lab applications.

Technical Specifications

Specification	Details
Product Type	Serial Communication Cable
PLC Platform	GE Fanuc Series 90-30
Function	Connect CPU to programming devices or peripheral modules
Connector Type	DB25 (female) × DB25 (female)
Cable Length	3000 mm (3 m)
Connector Dimensions	DB25: 68 × 12 × 34 mm
Transmission Standard	RS-232 compatible
Shielding	Braided shield for noise protection
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Weight	Approx. 220 g
Compliance	Industrial grade, RoHS compliant

Recommended Related Models

The IC693CBL301 is commonly used with:

IC693CPU350 / IC693CPU374 – Series 90-30 CPU modules
IC693APU300–305 – Advanced Processing Units for diagnostics and programming
IC693CBK001–CBK003 – Backplane kits for rack setup
Programming devices / PCs – For software configuration, monitoring, and troubleshooting

This ensures reliable serial communication for programming, monitoring, and troubleshooting Series 90-30 PLC systems.

Popular GE PLC Models

The IC693CBL301 is widely used with:

IC693CPU350 / IC693CPU363 / IC693CPU374
IC693APU300 / APU301 / APU302 / APU305
IC693ALG / IC693ADC / IC693ACC series

It is a standard accessory for engineers and system integrators working with Series 90-30 PLC systems.

Applications

The GE IC693CBL301 is ideal for:

Connecting CPUs to programming devices for software configuration
Serial communication between PLCs and peripheral modules
On-site system diagnostics and maintenance
Lab or test setups requiring stable RS-232 connections
Retrofitting or upgrading older Series 90-30 PLC installations

It ensures efficient and secure data transfer in industrial control environments.

Advantages

Reliable Communication – Stable RS-232 connection for programming and monitoring
Industrial-Grade Construction – Durable cable with shielding to prevent noise interference
Easy Installation – Standard DB25 connectors for quick setup
Versatile Use – Supports programming, diagnostics, and peripheral communication
Compact and Lightweight – Easy to handle in industrial settings

The IC693CBL301 is a dependable solution for communication needs in Series 90-30 PLC systems.

Technical FAQs

What is the main function of IC693CBL301?
To provide reliable RS-232 serial communication between PLC CPUs and programming devices.
Which PLC modules are compatible?
Series 90-30 CPUs including IC693CPU350, 363, and 374.
What is the cable length?
3000 mm (3 meters).
What type of connectors does it use?
DB25 (female) × DB25 (female).
Is the cable shielded?
Yes, it has a braided shield for noise protection.
Can it be used for programming and diagnostics?
Yes, fully supports programming, monitoring, and troubleshooting.
What is the operating temperature range?
-20°C to +70°C.
Is it suitable for industrial environments?
Yes, designed for industrial-grade reliability.
Does it comply with safety or environmental standards?
Yes, it is RoHS compliant.
Can it be used with older Series 90-30 PLC systems?
Yes, it is compatible with legacy CPUs and modules requiring RS-232 communication.
