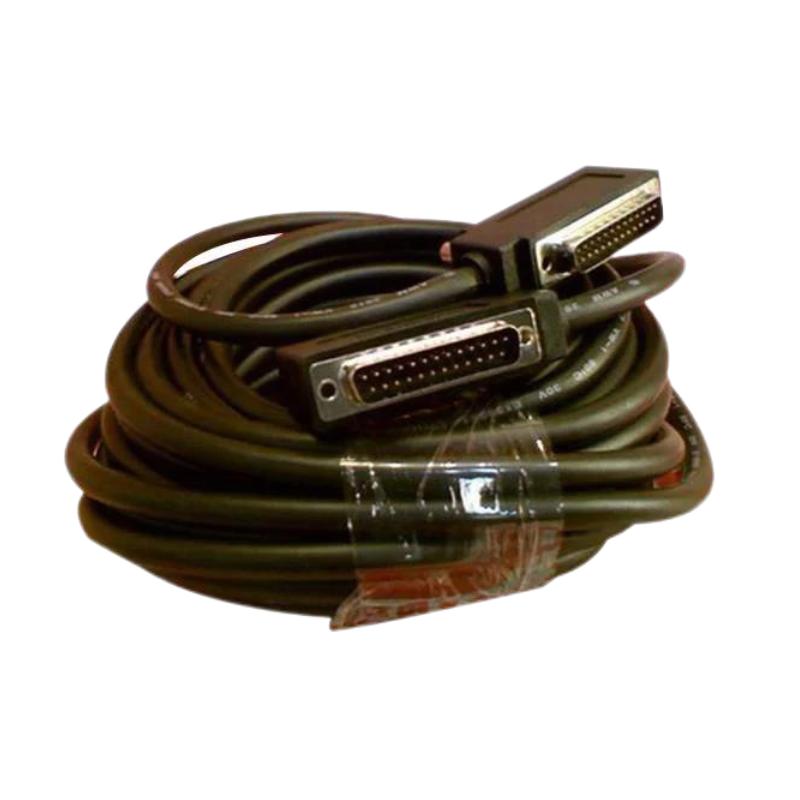

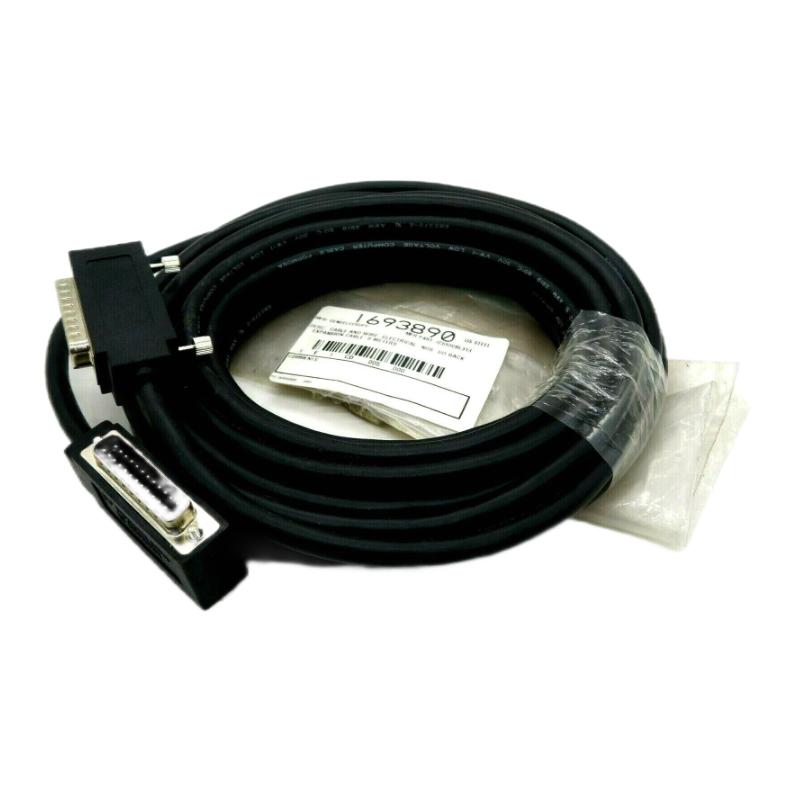

The GE IC693CBL313 is a purpose‑built I/O bus expansion cable for GE Series 90‑30 PLC systems. It belongs to the family of “Wye” I/O expansion cables used to extend I/O bus wiring between the CPU baseplate and expansion or remote baseplates. This cable is a key accessory when your automation design requires extended distances between baseplates or additional I/O slots without adding extra CPUs or complex wiring.

Technical Specifications

Specification	Details
Product Type	I/O Bus Expansion Cable
PLC Platform	GE Fanuc Series 90‑30
Function	Connects CPU baseplate to expansion or remote baseplates
Cable Type	“Wye” bus expansion cable
Connector Configuration	One end: 25‑pin D‑sub male; Other end: dual 25‑pin D‑sub (1 male, 1 female)
Connector Type	25‑pin D (DB‑25)
Cable Length	≈ 7620 mm (25 feet)
Typical Use	Daisy‑chain I/O expansion blocks
Operating Temperature	Standard industrial range
Weight	Approx. 0.91 kg (2.0 lbs)
Shielding	Fully shielded cable
Recommended Max System Distance	Up to ≈ 15 m (50 ft) total between CPU and last expansion baseplate when using multiple cables in series

Recommended Related Models

Use IC693CBL313 in I/O expansion setups with these Series 90‑30 components:

GE Fanuc IC693CPU364 – Main CPU module providing control logic
GE IC693PWR330 Power Supply – Stable power source for baseplates
I/O Bus Expansion Cables: IC693CBL300 (1 m), IC693CBL301 (2 m), IC693CBL312 (0.15 m) – used in combination based on layout needs
Termination Plug: IC693ACC307 – required at the last expansion baseplate to maintain signal integrity

These accessories help you build reliable I/O expansion chains without disrupting the PLC’s core logic or baseplate configuration.

Popular GE PLC Models

The IC693CBL313 is widely used in Series 90‑30 systems alongside:

IC693CPU350 / IC693CPU363 / IC693CPU374 – Core Series 90‑30 CPUs
IC693ALG / IC693ADC / IC693ACC series – Analog and accessory modules used across control and I/O expansion
IC693BEM320–BEM341 – Baseplates and expansion connectors supporting larger systems

This compatibility matrix supports modular designs and expansions for up to seven chained baseplates.

Applications

The GE IC693CBL313 I/O bus expansion cable is commonly used for:

Connecting expansion baseplates to the main CPU baseplate in distributed I/O systems
Daisy‑chaining up to seven expansion baseplates while respecting total cable length guidelines
Remote baseplate installation where I/O points are physically distant from the CPU
Reconfiguring existing systems to add additional I/O capacity without major redesign
Optimizing rack layouts in manufacturing lines, material handling systems, and large process plants

By extending the I/O bus flexibly, you minimize wiring complexity and reduce cabinet space usage.

Advantages

High Flexibility: 8 m cable length supports widespread I/O layout designs
Shielded for Industrial Noise Immunity: Continuous shielding enhances signal integrity
Standard D‑sub Connectors: Supports easy installation and compatibility with Series 90‑30 baseplates
Modular Expansion: Can be combined with shorter bus expansion cables to meet custom layouts
Reliable Operation: Designed to maintain stable communications across extended distances

The IC693CBL313 is a simple yet essential piece in expanding Series 90‑30 PLC systems without complicated rewiring or additional CPUs.

Technical FAQs

What is the purpose of the IC693CBL313?
It connects the CPU baseplate to expansion or remote baseplates in a Series 90‑30 I/O system.
How long is the cable?
Approximately 7620 mm (25 feet).
What type of connectors does it use?
25‑pin D‑sub (DB‑25) with a single male on one end and a male/female dual on the other.
Can multiple IC693CBL313 cables be used in one system?
Yes — up to seven cables can be daisy‑chained, provided total length limits are respected.
Does this cable carry power or only signals?
It carries I/O bus signals only; power is provided by the baseplate/power supply.
Is shielding included?
Yes, the cable is continuously shielded for industrial noise protection.
What’s the typical use environment?
Industrial automation systems, manufacturing lines, and process control installations.
What baseplates does it connect?
It connects CPU baseplates to expansion or remote baseplates in the Series 90‑30 I/O system.
Is a terminator needed?
Yes — the last cable in an expansion chain should be terminated properly using a designated terminator plug.
Why choose IC693CBL313 over shorter cables?
Its 8 m length offers extended reach for larger racks or remote baseplates, providing design flexibility.
