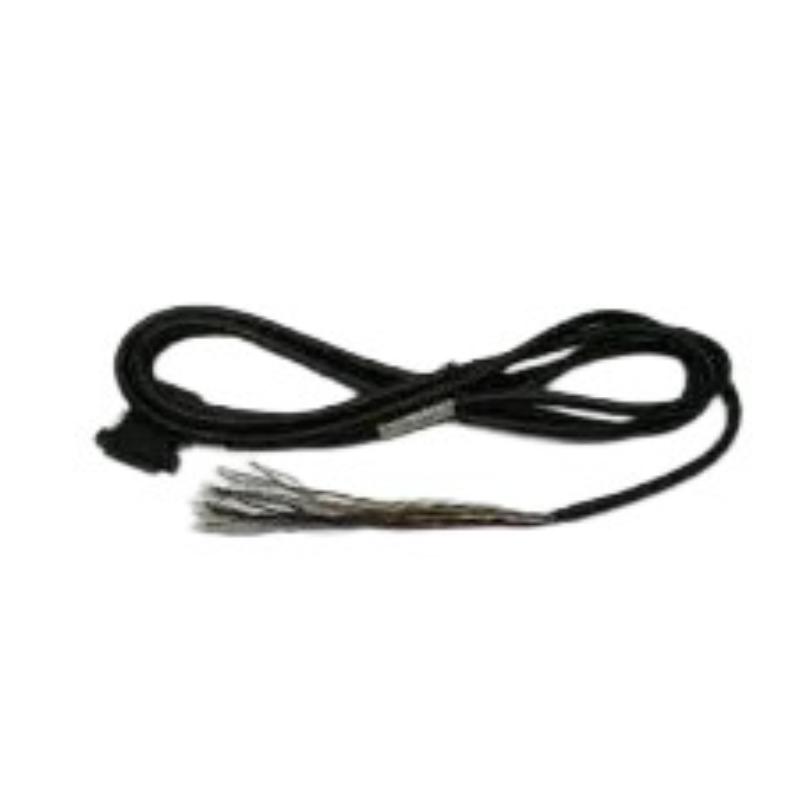

The GE IC693CBL327 is a high-density I/O interface cable designed for GE Fanuc Series 90‑30 PLC systems, optimized for tight control panel layouts. Featuring a right-angle 24-pin D-sub connector, this cable allows clean, compact, and reliable connections from high-density I/O modules to terminal blocks or field wiring, ensuring efficient space utilization in industrial panels. It’s the preferred choice when replacing straight connector cables like IC693CBL315 in legacy or retrofit installations.
Technical Specifications (mm)
| Specification | Details |
|---|---|
| Product Type | High-Density I/O Interface Cable |
| PLC Platform | GE Fanuc Series 90‑30 |
| Function | Connects high-density PLC I/O modules to field wiring or terminal blocks |
| Cable Length | 3000 mm |
| Connector Type | Right-angle 24-pin D-sub (PLC side) |
| Connector Dimensions (L × W × H) | 51 × 12 × 34 mm (Right-angle D-sub) |
| Wire Gauge | #24 AWG (solid conductor) |
| Current Rating | 1.2 A per conductor |
| Field End | Pre-stripped flying leads for terminal block connections |
| Shielding | Unshielded (standard digital I/O signals) |
| Operating Temperature | 0 °C – 60 °C |
| Weight | Approx. 430 g |
| Mounting Clearance | Minimum 51 mm behind panel for connector clearance |
Recommended Related Models
-
IC693CBL328 – Companion right-angle cable for dual-connector modules
-
IC693CBL315 – Straight connector predecessor
-
IC693MDL752 / IC693MDL753 – High-density 32-point I/O modules
-
IC693CBK001 – Cable kit including both CBL327 & CBL328
These combinations support clean, organized wiring in tight panels while maintaining full compatibility with high-density I/O modules.
Popular GE PLC Models
The IC693CBL327 is often paired with:
-
IC693CPU350 / IC693CPU363 / IC693CPU374 – Core Series 90‑30 CPUs
-
High-density I/O modules: IC693MDL752 / IC693MDL753
-
Terminal block adapters for panel wiring
