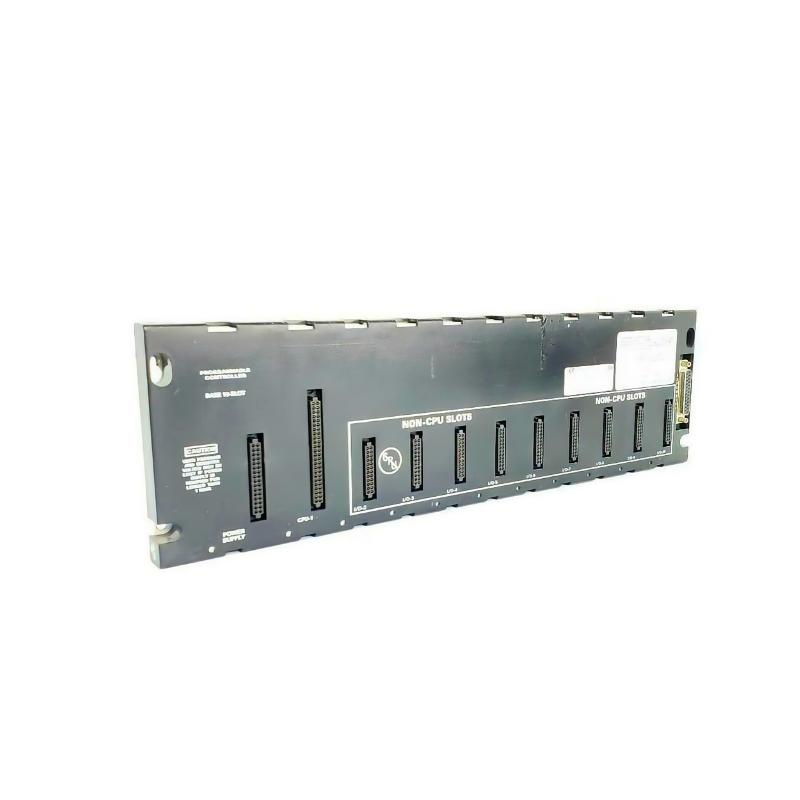

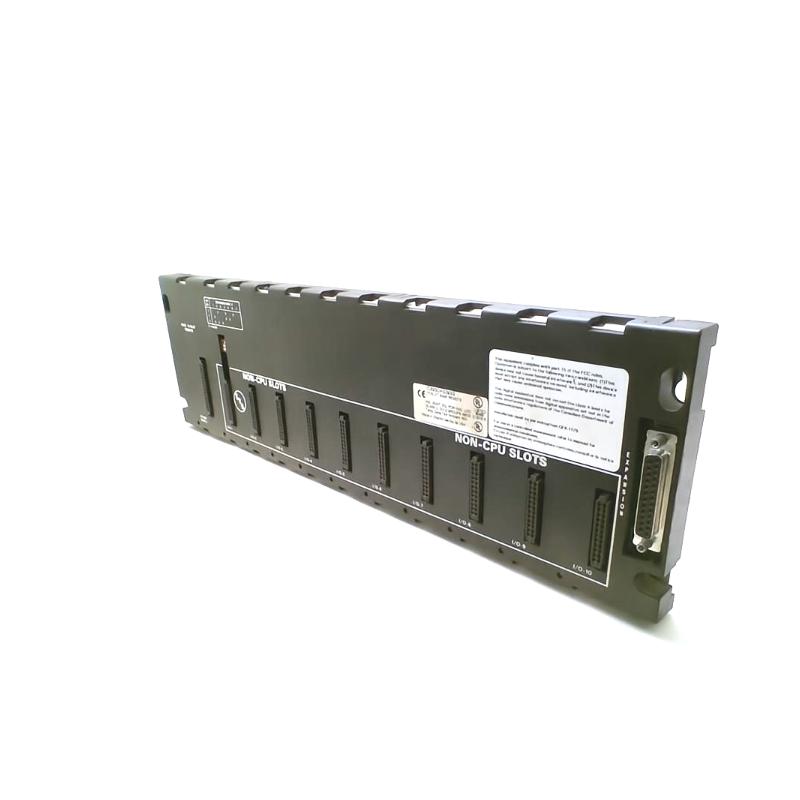

The GE IC693CHS393 is a versatile expansion chassis module developed for the Series 90-30 PLC family, supporting structured system growth and distributed control layouts. It is commonly selected in projects where control cabinets must remain organized while allowing additional I/O or specialty modules to be deployed with minimal redesign. With a strong mechanical frame and a proven backplane structure, this chassis fits naturally into both centralized and remotely expanded PLC systems.

Technical Specifications & Mechanical Details

Item	Description
Module Type	PLC Expansion Chassis Module
PLC Platform	GE Series 90-30
Slot Configuration	10 slots
Installation Method	Panel mounting
Backplane Function	Integrated module communication backplane
System Role	Expansion / distributed chassis

Dimensions (W × H × D): 444 × 132 × 127 mm
Weight: 3.0 kg

Recommended Related Models

GE IC693CHS391 – Compact 5-slot expansion chassis
GE IC693CHS392 – Standard 10-slot expansion chassis
GE IC693CHS397 – Remote expansion chassis solution
GE IC693PWR330 – Series 90-30 power supply module

Popular GE Series 90-30 Models

GE IC693CPU374
GE IC693CPU350
GE IC693MDL740
GE IC693ALG222
GE IC693ACC300

Industrial Application Areas

The IC693CHS393 is widely used in manufacturing automation, water and wastewater control systems, material handling lines, and energy infrastructure projects. Its ability to support structured expansion makes it especially valuable in plants where I/O requirements increase over time or where remote panels are deployed across large facilities.

Key Advantages

Supports scalable expansion of Series 90-30 PLC systems
Enables cleaner cabinet layouts and improved wiring organization
Reliable backplane communication for stable module operation
Mechanical design suited for long-term industrial service
Flexible integration into centralized or distributed architectures

Technical FAQs

What is the main purpose of the IC693CHS393?
It provides an expansion chassis for installing additional PLC modules.
How many modules can be installed in this chassis?
The chassis supports up to 10 Series 90-30 modules.
Is it compatible with all Series 90-30 CPUs?
Yes, it is designed to work with standard Series 90-30 CPUs and I/O modules.
Does the chassis include a power supply by default?
No, a compatible Series 90-30 power supply must be installed separately.
Can it be used in remote I/O configurations?
Yes, it is commonly used in distributed or remote expansion systems.
What type of mounting is recommended?
Panel mounting inside an industrial control cabinet.
Is special cooling required for operation?
Normal cabinet ventilation is sufficient in most applications.
What materials are used in the chassis construction?
Industrial-grade metal and reinforced structural components.
Is the IC693CHS393 suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
Why choose this model over smaller expansion chassis?
Its higher slot count supports future system growth without frequent hardware changes.
