Brand:Yokogawa Electric Item No.: AAI135-H53 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

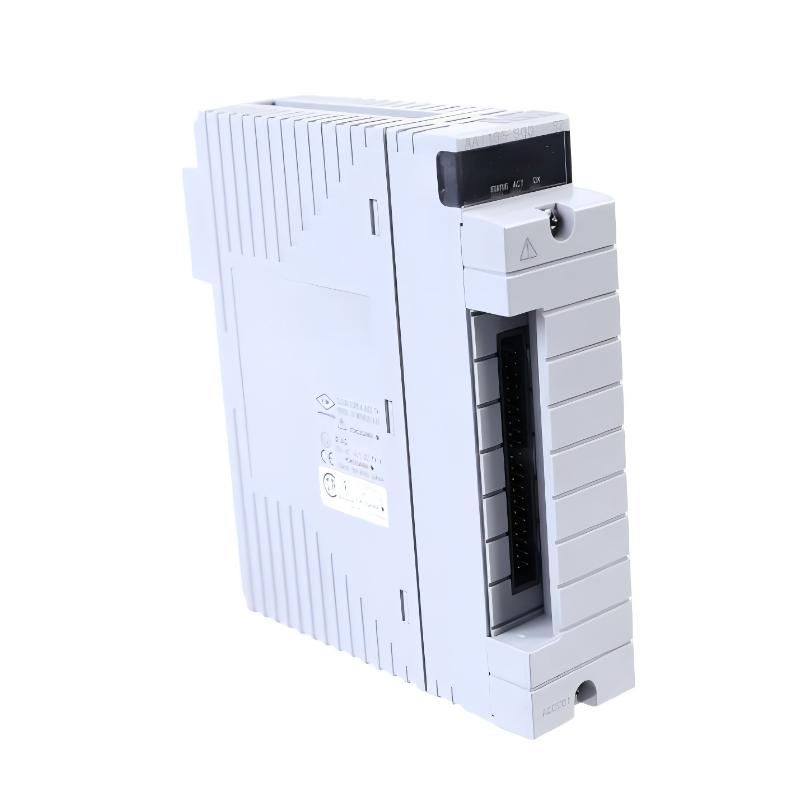

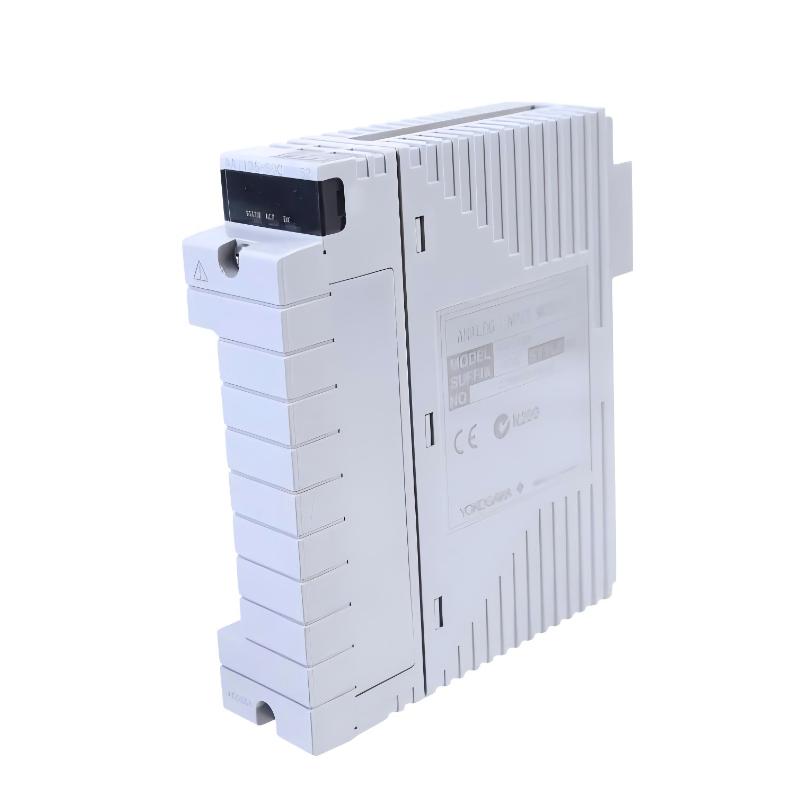

The Yokogawa AAI135-H53 Analog Input Module is engineered to deliver consistent measurement reliability in diverse industrial environments. Built on a refined hardware foundation, the module handles analog inputs with precision while maintaining excellent immunity to electrical disturbances. Its mechanical and electrical design reflects Yokogawa’s long-standing focus on durability and system longevity. From process optimization tasks to distributed data acquisition, the AAI135-H53 provides the accuracy and stability needed to maintain smooth operations and dependable control performance.
Technical Specifications
Parameter
Description
Module Type
Analog Input Module
Input Channels
Multi-channel configuration
Supported Input Types
Standard industrial voltage and current inputs
Isolation
Channel-level and system-level isolation
Diagnostics
Line error detection, channel status monitoring
Operating Class
Industrial noise-resistant, DCS-grade hardware
Dimensions
107.5 × 32.8 × 130 mm
Weight
0.3 kg
Recommended Related Models
Model
Description
AAI141
Flexible analog input module
AAI543
High-isolation analog input unit
AAI835-H
High-density analog input module
AAV542
Advanced high-resolution AI interface
AAI830
Universal analog input for varied signals
ANB10D
Node base with modular analog capability
AAI143
Multi-range analog acquisition module
ADV151
Mixed-signal acquisition input unit
AAI445
Rugged analog input for demanding plants
AAR145
Current-loop optimized analog interface
Popular Related Models
Model
Description
AAI141-S00
Popular general-purpose AI module
AAI835
Standard high-density analog unit
AAI841
High-performance analog input version
AAI143-S50
Flexible and widely used AI module
AAI830-H
Common universal input unit for diverse plants
AAV541
Analog voltage processing module
ADV551
Fast-scan analog monitoring module
AAR181
Redundancy-capable analog module
AAI835-S00
Compact and stable AI solution
AAI141-H
Trusted analog input for mission-critical loops
Applications
The AAI135-H53 is tailored for automation systems that rely on dependable analog signal collection to guide operational decisions. Its performance makes it ideal for multi-loop control environments such as refining units, compressor stations, pharmaceutical production lines, and environmental monitoring installations. Whether handling slow-changing temperature inputs or fast-response pressure data, this module maintains consistent accuracy, allowing plant operators to run processes with greater confidence and minimal tuning effort.
Advantages
High signal fidelity ensures that raw sensor data reaches the control system without distortion.
Robust isolation architecture keeps electrical noise contained, especially important in large plants with mixed wiring.
Fast and stable update response, suitable for both general-purpose and precision-critical applications.
Streamlined integration with CENTUM and ProSafe-RS, reducing engineering workload during expansions.
Built for long-term plant availability, lowering total lifecycle cost and minimizing maintenance interruptions.
FAQs
1. What type of input conversion engine is used in the AAI135-H53?
It uses a stable A/D conversion design optimized for industrial-grade measurement accuracy.
2. Are the individual channels electrically isolated?
Yes, each channel provides isolation to minimize interference between input points.
3. Which analog signal ranges are compatible with this module?
It accepts commonly used voltage and current formats found in industrial transmitters and sensors.
4. How is signal noise handled on low-level inputs?
The module employs internal filtering and conditioning circuits to deliver clean, usable measurement values.
5. Does the unit support HART pass-through communication?
HART passthrough is supported when integrated with compatible Yokogawa systems.
6. What is the typical scanning behavior for analog acquisition?
Inputs are scanned in synchronization with the host controller’s update cycle.
7. Can the module detect wiring issues such as open or short circuits?
Yes, it provides immediate detection of wiring abnormalities and notifies the DCS.
8. What diagnostic information is visible to maintenance teams?
Technicians can access module status, error flags, and channel diagnostics directly from the system interface.
9. Is it possible to configure each channel for different input ranges?
Yes, each channel can be assigned independently to match the required signal type.
10. What surge protection mechanisms are built into the module?
Protective components are integrated to guard against transient spikes that may occur on field wiring.
