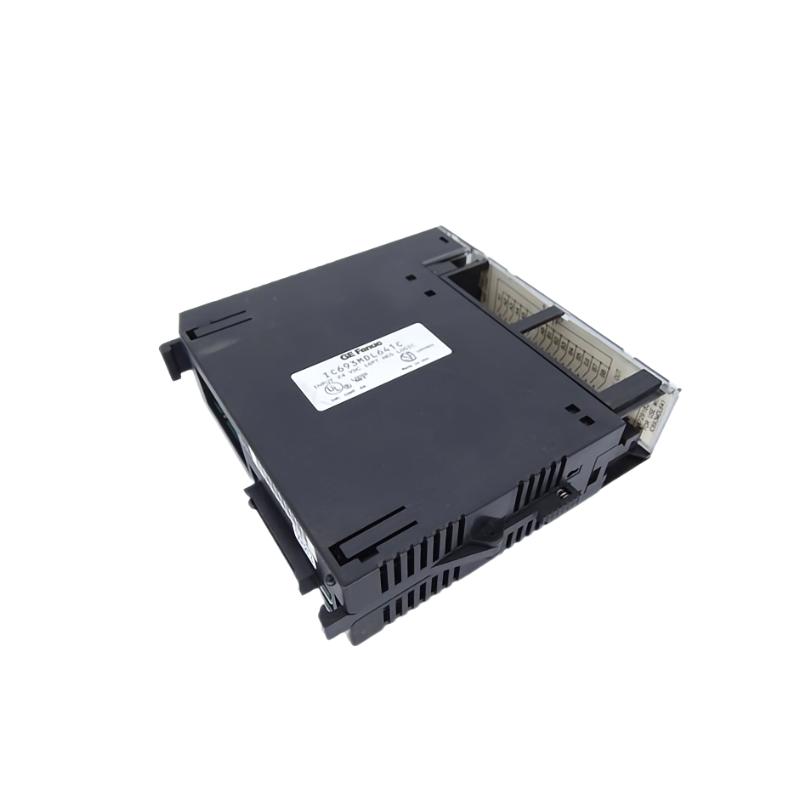

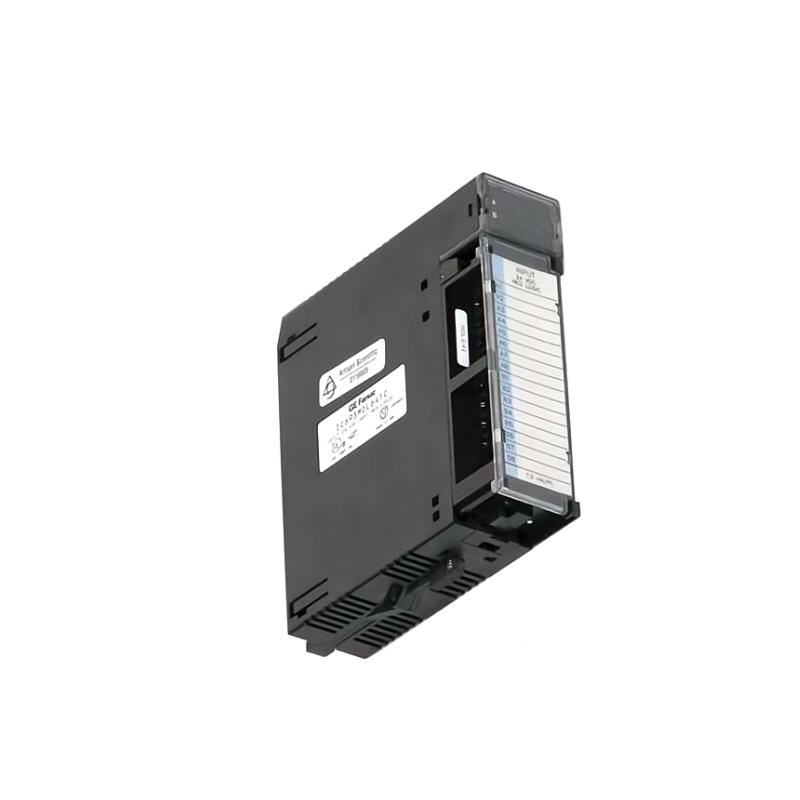

IC693MDL641-1 IC693MDL641-2 IC693MDL641-3 IC693MDL641-4

The GE IC693MDL641 is a robust digital input module designed specifically for the Series 90-30 PLC platform. It provides stable and accurate acquisition of DC input signals, making it a dependable interface between field devices and control logic. Built with industrial reliability in mind, this module is well suited for long-term operation in demanding automation environments where signal integrity and system uptime matter.

Technical Specifications

Item	Specification
Module Type	Digital Input Module
Number of Inputs	16 points
Nominal Input Voltage	24 V DC
Input Type	Sinking
Isolation	Group isolation
Backplane Interface	Series 90-30 baseplate
Operating Environment	Industrial control cabinets
Dimensions (L×W×H)	140×38×102 mm
Weight	0.32 kg

Recommended Related Models

GE IC693MDL640 – Standard 24 V DC digital input module
GE IC693MDL231 – Compact DC input module for space-limited panels
GE IC693MDL240 – AC digital input module for mixed-voltage systems
GE IC693MDL260 – Higher-density digital input configuration

Popular GE Series 90-30 Models

GE IC693CPU374 – High-performance CPU module
GE IC693CPU364 – Mid-range controller for flexible automation
GE IC693CMM311 – Communication coprocessor module
GE IC693DSM314 – Intelligent motion interface module

Applications

This module is commonly deployed in automated production lines, conveyor systems, packaging equipment, and utility control panels. It is especially well-suited for applications requiring reliable detection of discrete signals from sensors, switches, and operator devices in continuous-run environments.

Advantages

Consistent and accurate digital signal acquisition
Robust industrial design for demanding operating conditions
Seamless integration with Series 90-30 PLC architectures
Compact footprint supporting efficient panel layouts
Proven reliability that helps minimize unplanned downtime

Technical FAQs

Is the IC693MDL641 compatible with all Series 90-30 CPUs?
Yes, it works with standard CPUs in the Series 90-30 family.
What voltage level does this module support?
It is designed for 24 V DC digital input signals.
How many input channels are available?
The module provides 16 discrete input points.
Does it support hot swapping?
No, the system should be powered down before installation or removal.
What type of isolation is used?
The module features group-level electrical isolation.
Can it be used with proximity sensors and limit switches?
Yes, it supports common industrial DC input devices.
Is special configuration software required?
Standard GE PLC programming software is sufficient.
How does the module mount in the PLC rack?
It installs directly onto a Series 90-30 baseplate.
Is external protection recommended?
External fusing or protection is advised depending on wiring standards.
Is the IC693MDL641 suitable for continuous operation?
Yes, it is designed for long-term, continuous industrial use.
