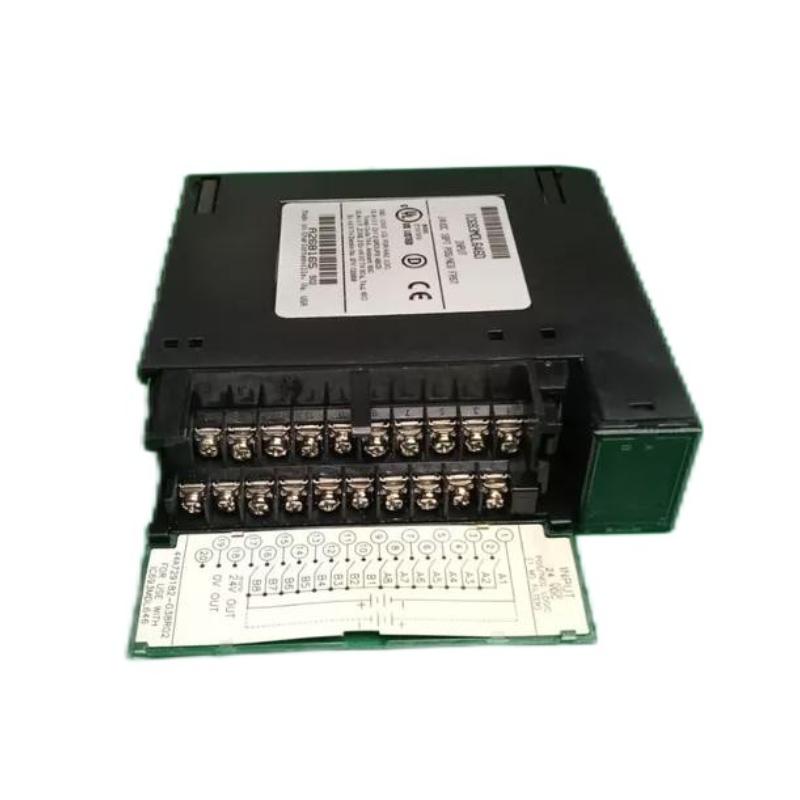

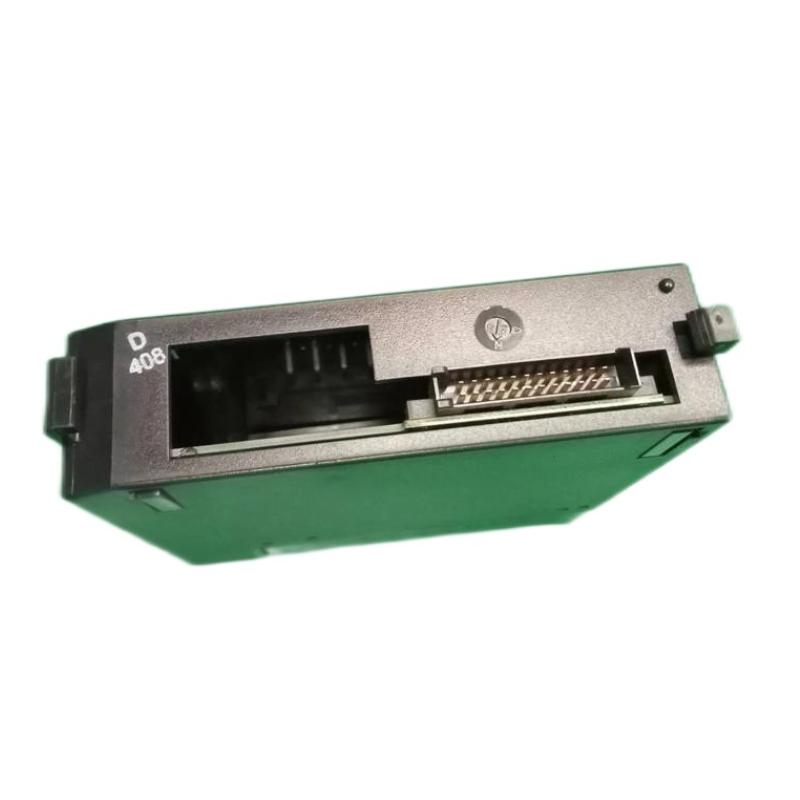

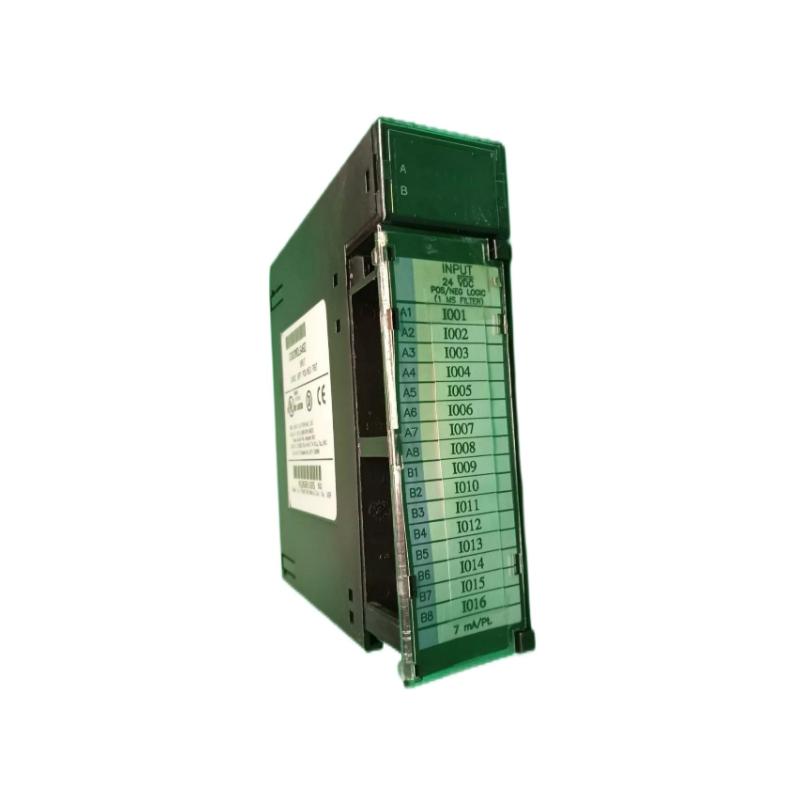

The GE IC693MDL646 is a digital input module engineered for GE Fanuc Series 90-30 PLC installations. Built for industrial-grade signal acquisition, it captures and translates discrete field inputs into reliable PLC logic data. This module excels in applications where precise input feedback from sensors, switches, and interlock devices directly influences control logic and operational safety. Its robust design supports dependable performance in environments with continuous operation and electrical activity.

Technical Specifications

Specification	Details
Module Type	Digital Input Module
Input Points	16 discrete inputs
Rated Input Voltage	24 V DC
Input Configuration	Sinking
Electrical Isolation	Group isolated
Platform	GE Fanuc Series 90-30 PLC
Mounting	Rack/baseplate mounted
Ambient Operating Condition	Industrial control cabinets

Dimensions (L×W×H): 140 × 38 × 102 mm
Weight: 0.36 kg

Recommended Related Models

GE IC693MDL640 – Standard 24 V DC digital input module
GE IC693MDL643 – Stable digital input solution
GE IC693MDL645 – Industrial digital input module
GE IC693DSM314 – High-density discrete output module

Popular GE Series 90-30 Models

GE IC693CPU364 – Mid-tier CPU module
GE IC693CPU366 – High-performance CPU module
GE IC693CMM311 – Communication module
GE IC693DNS201 – DeviceNet slave module

Applications

The IC693MDL646 is ideal for automation systems that require accurate and repeatable discrete input detection, including:

Industrial machine status monitoring
Sensor and switch signal acquisition
Machine safety interlock systems
Conveyor and material handling control
Retrofit and expansion of Series 90-30 installations

Its consistent input handling helps improve decision accuracy in logic execution and contributes to smoother system operation.

Advantages

Reliable and consistent discrete input detection
Industrial-grade design suitable for demanding environments
Compact module size for efficient rack layouts
Seamless integration with Series 90-30 PLC infrastructure
Proven performance for long-term industrial use

Technical FAQs

What type of inputs does the IC693MDL646 support?
It supports 24 V DC discrete input signals.
How many input channels are provided?
The module offers 16 discrete input points.
Is this module compatible with Series 90-30 CPU models?
Yes, it integrates with standard Series 90-30 CPUs.
Does the module handle noisy industrial environments?
Yes, it is designed with industrial input circuitry for stability.
Can it be used with proximity sensors and limit switches?
Yes, it supports common discrete field devices.
Is hot-swapping supported?
No, the PLC should be powered down before installation or removal.
Is special software needed to configure this module?
No, standard GE Fanuc programming tools are sufficient.
Does the module require special cooling?
No additional cooling is required; natural convection is sufficient.
Can it replace other digital input modules in the same series?
In many cases, yes—provided the electrical requirements match.
Where is this module typically installed?
Inside industrial control cabinets on Series 90-30 I/O racks.
