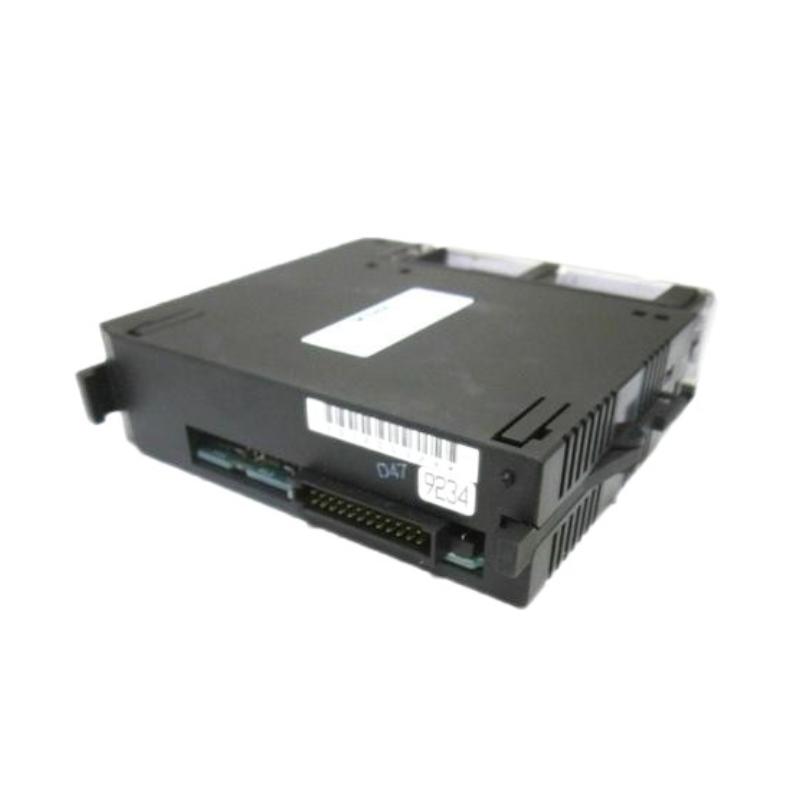

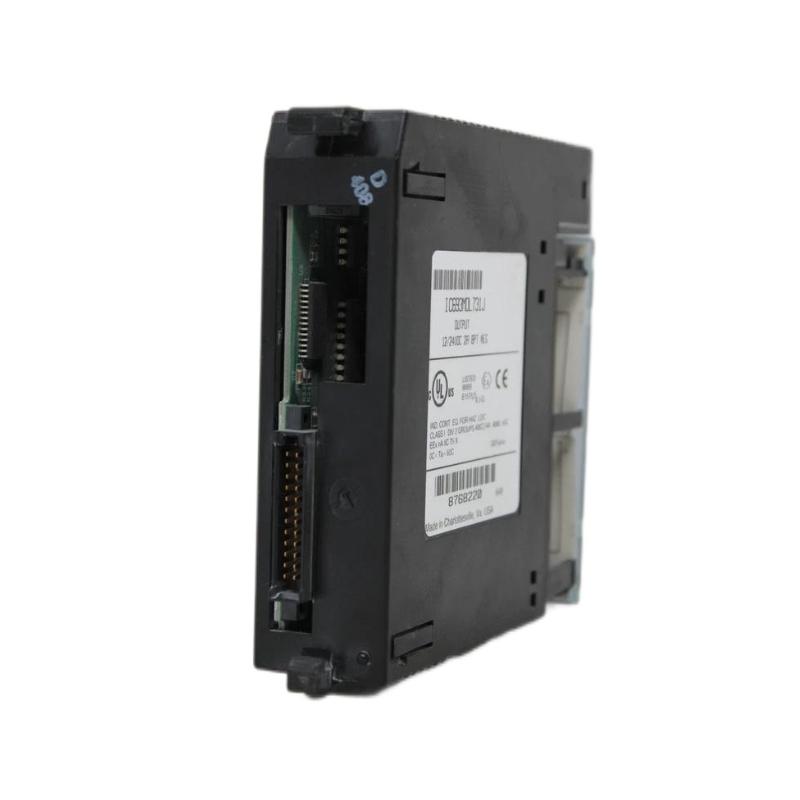

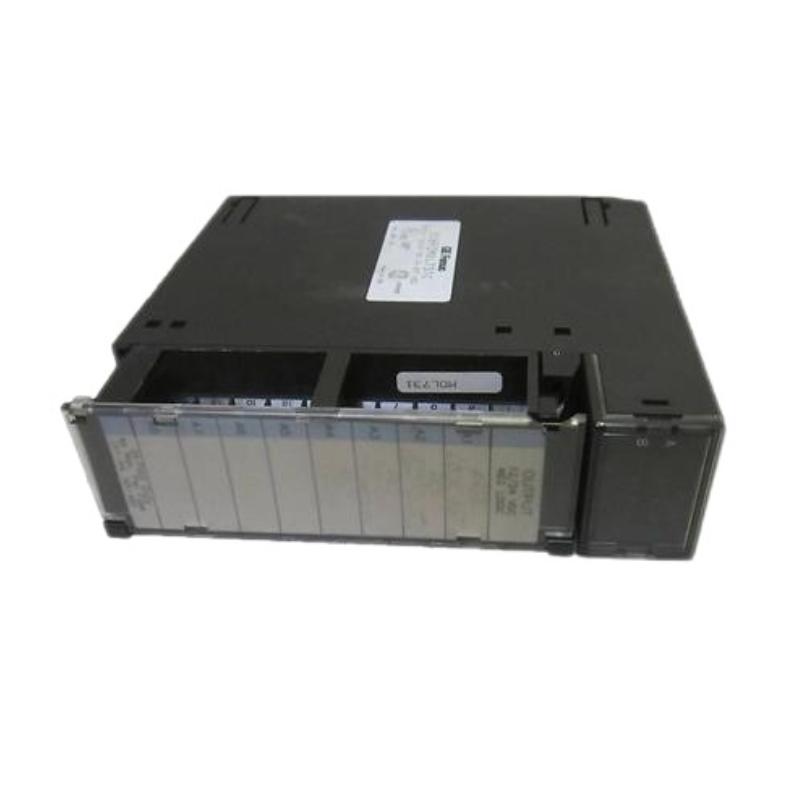

The GE IC693MDL731 is a high-density digital input module designed for GE Fanuc Series 90-30 PLC platforms where expanded discrete input capacity and reliable performance are required. By offering a larger channel count in a compact form factor, this module helps engineers streamline I/O racks, reduce wiring complexity, and improve signal organization in automation systems.

Built for industrial environments, the IC693MDL731 delivers consistent detection of 24 V DC on/off field signals from sensors, switches, and interlock devices. Its robust input conditioning and efficient design make it ideal for large-scale or space-constrained applications where stable logic feedback is critical.

Technical Specifications

Specification	Description
Module Type	Digital Input Module
Input Points	32 discrete inputs
Nominal Input Voltage	24 V DC
Input Configuration	Sinking
Isolation	Group isolated
PLC Platform	GE Fanuc Series 90-30
Mounting	Rack / Baseplate mounted
Operating Environment	Industrial control cabinets

Dimensions (L×W×H): 140 × 64 × 102 mm
Weight: 0.60 kg

Recommended Related Models

GE IC693MDL730 – High-density 32-point input module
GE IC693MDL660 – Standard 16-point digital input module
GE IC693MDL340 – Noise-resistant input module
GE IC693DSM314 – High-density discrete output module

Popular GE Series 90-30 Models

GE IC693CPU372 – Advanced CPU for demanding automation
GE IC693CPU374 – High-performance CPU module
GE IC693DNM200 – DeviceNet master communication module
GE IC693DNS201 – DeviceNet slave communication module

Applications

The IC693MDL731 is commonly used in industrial automation systems that require a large number of discrete input points, including:

Complex production and assembly lines
Multi-zone safety interlock monitoring
Large sensor networks in material handling systems
Process control panels with extensive discrete I/O
PLC expansion and retrofit projects

Its high channel count supports efficient signal capture without compromising response accuracy.

Advantages

High-density input capacity reduces the number of modules and rack footprint
Stable digital signal acquisition supports accurate logic decisions
Industrial-grade design suited for continuous operation
Compact physical profile improves cabinet space utilization
Seamless integration with Series 90-30 PLC architecture

The IC693MDL731 is ideal for systems where reliability, scalability, and optimized rack organization matter.

Technical FAQs

How many inputs does the IC693MDL731 support?
It supports 32 discrete 24 V DC input points.
Is this module compatible with all Series 90-30 CPUs?
Yes, it integrates with standard GE Series 90-30 CPU modules.
Can it replace multiple 16-point input modules?
Yes, its higher density often replaces several 16-point modules.
What types of field devices can it connect to?
Proximity switches, limit switches, push buttons, and other discrete devices.
Is this module suitable for continuous industrial use?
Yes, it is designed for long-term operation in industrial environments.
Does the module support hot-swapping?
No — the PLC should be powered down before installation or removal.
Is special configuration software required?
Standard GE Series 90-30 programming tools are sufficient.
Does it require external protection devices?
Yes — external fusing or protection is recommended based on field wiring practices.
Does the module handle electrical noise well?
Yes, industrial-grade input conditioning supports stable signal acquisition.
Is it commonly used in retrofit or expansion projects?
Yes — it is frequently selected to expand digital input capacity in existing systems.
