Brand:Yokogawa Electric Item No.:AAI135-S50 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

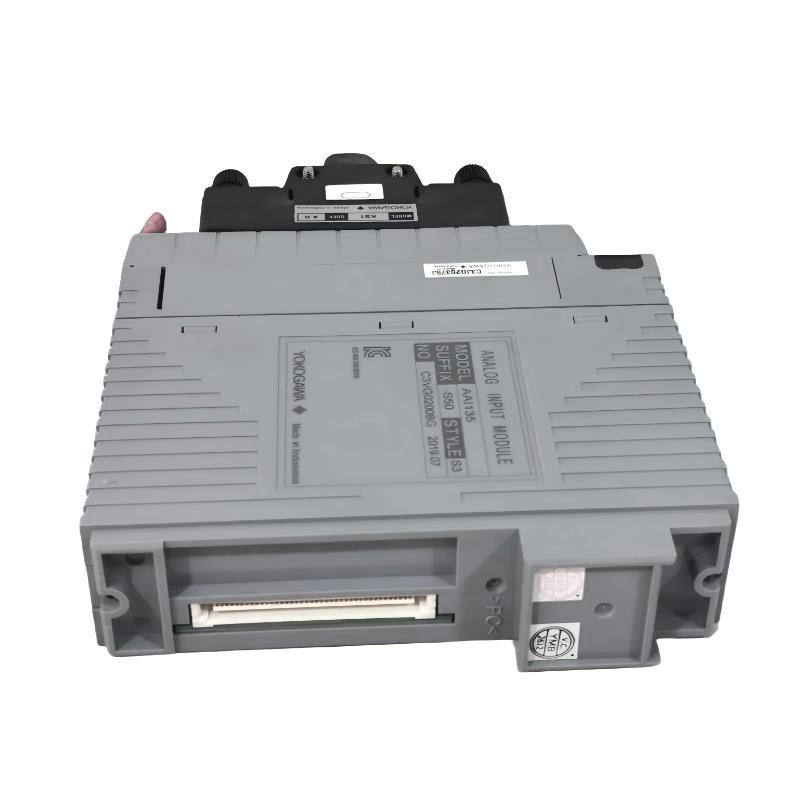

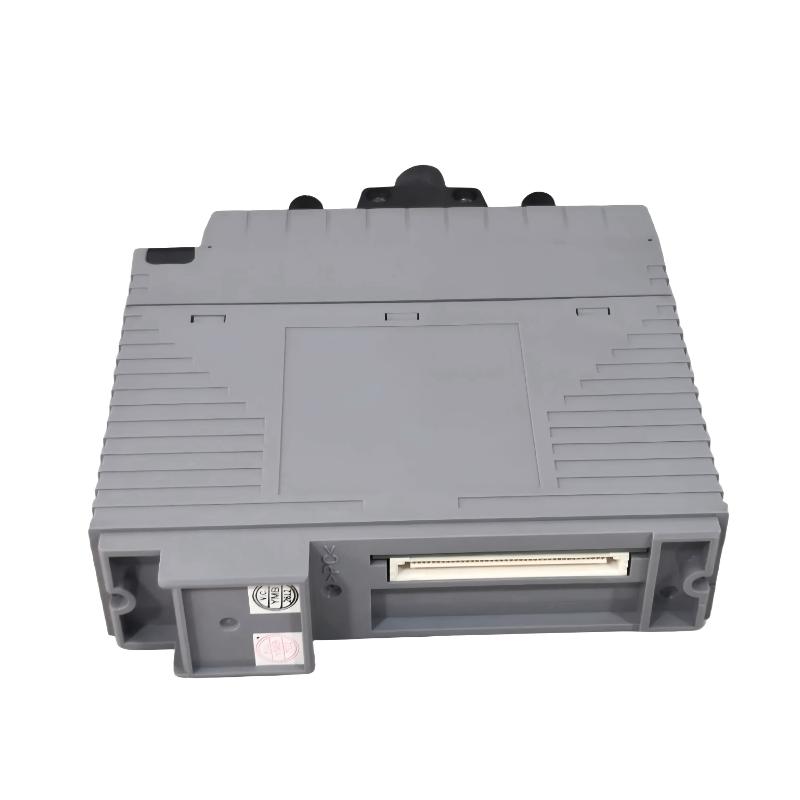

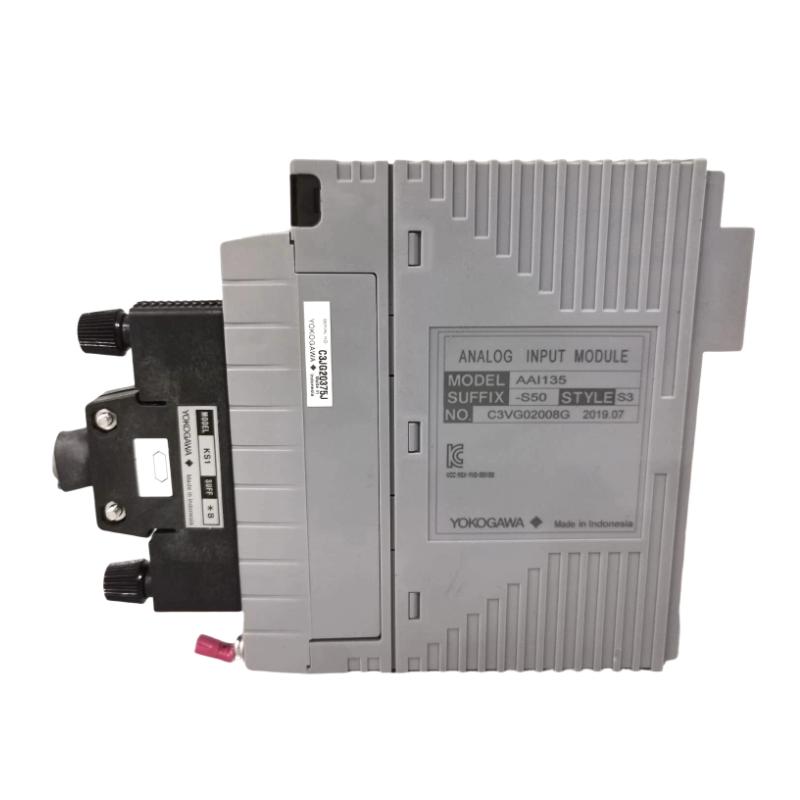

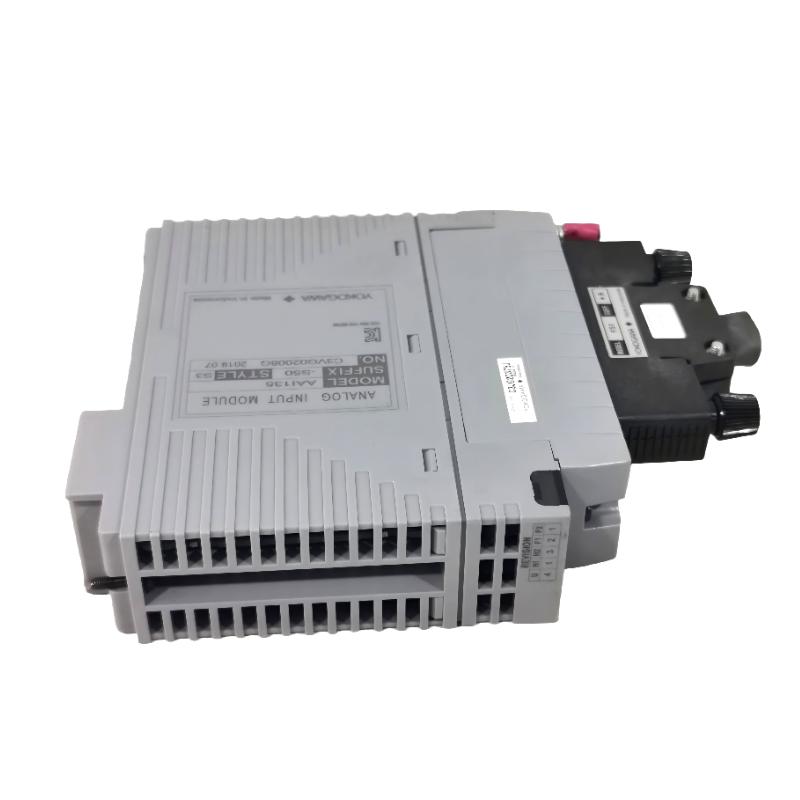

The Yokogawa AAI135-S50 Analog Input Module is engineered to provide accurate, stable, and reliable analog measurements for demanding industrial environments. Its robust design ensures minimal susceptibility to electrical noise, while its flexible configuration allows seamless integration into existing or new control systems. By combining precision, stability, and advanced diagnostics, the AAI135-S50 helps operators maintain optimal process control and ensures continuous plant efficiency.
Technical Specifications
Parameter
Description
Module Type
Analog Input Module
Input Channels
Multi-channel configuration
Supported Signal Types
Industrial voltage and current inputs
Isolation
Channel-level and module-level isolation
Diagnostics
Line fault detection, channel health monitoring
Operating Environment
Industrial-grade, high noise immunity
Dimensions
107.5 × 32.8 × 130 mm
Weight
0.3 kg
Recommended Related Models
Model
Description
AAI141
Flexible analog input module
AAI543
High-isolation industrial AI module
AAI830
Universal analog input for multiple signal types
AAI835-H
High-density analog input solution
AAV542
Precision analog acquisition unit
AAI143
Multi-range configurable analog input
ADV151
Mixed-signal input module
ANB10D
Modular node base for analog expansion
AAI445
Rugged analog input module
AAR145
Current-loop optimized analog interface
Popular Related Models
Model
Description
AAI141-S00
General-purpose AI module, widely used
AAI835
Standard high-density analog input module
AAI841
High-performance analog input unit
AAI143-S50
Flexible multi-range analog module
AAI830-H
Universal input module for diverse applications
AAV541
Voltage-focused analog acquisition unit
ADV551
Fast-response analog monitoring module
AAR181
Redundancy-capable analog input
AAI835-S00
Compact and stable AI solution
AAI141-H
Reliable analog input for critical process loops
Applications
The AAI135-S50 is designed for high-performance industrial automation where reliable analog input is critical. It is ideal for plants requiring precise process monitoring, including power generation, petrochemical refineries, water treatment facilities, and complex manufacturing lines. The module excels in multi-loop control systems, providing accurate readings from pressure, temperature, flow, and level sensors, ensuring operators maintain optimal control and efficiency.
Advantages
Exceptional signal accuracy, ensuring measurement integrity across all channels.
Strong channel isolation, protecting sensitive control systems from electrical noise and interference.
Stable performance under harsh conditions, including high temperatures, vibrations, and electrical noise.
Compact design, enabling high-density installation in I/O racks.
Seamless integration with Yokogawa CENTUM and ProSafe-RS platforms, minimizing configuration time.
Advanced diagnostics, allowing engineers to proactively identify potential faults and maintain continuous operation.
FAQs
1. What is the A/D conversion precision of the AAI135-S50?
It provides high-resolution conversion, delivering reliable analog measurement for industrial processes.
2. Are input channels isolated from each other?
Yes, each channel is electrically isolated to prevent cross-channel interference.
3. Which types of analog signals are supported?
The module supports standard industrial current and voltage inputs, including 0–5 V, 1–5 V, 0–10 V, and 4–20 mA ranges.
4. How does the module manage electrical noise on inputs?
It incorporates filtering and signal conditioning to stabilize readings against environmental and electrical noise.
5. Is HART passthrough supported?
Yes, HART communication can be passed through when used with compatible Yokogawa systems.
6. What is the input scanning behavior?
Channels are scanned in synchronization with the host DCS scan cycle, ensuring predictable and reliable data updates.
7. Can the module detect wiring faults such as open circuits or shorts?
Yes, it continuously monitors for wiring errors and reports faults to the host system.
8. What diagnostics are available to plant personnel?
Engineers can access channel status, fault indicators, and overall module health via the system interface.
9. Can individual channels be configured with different input ranges?
Yes, each channel can be independently configured for various signal types and ranges.
10. What surge protection is built into the module?
The module includes internal transient and surge protection to safeguard against voltage spikes on field wiring.
