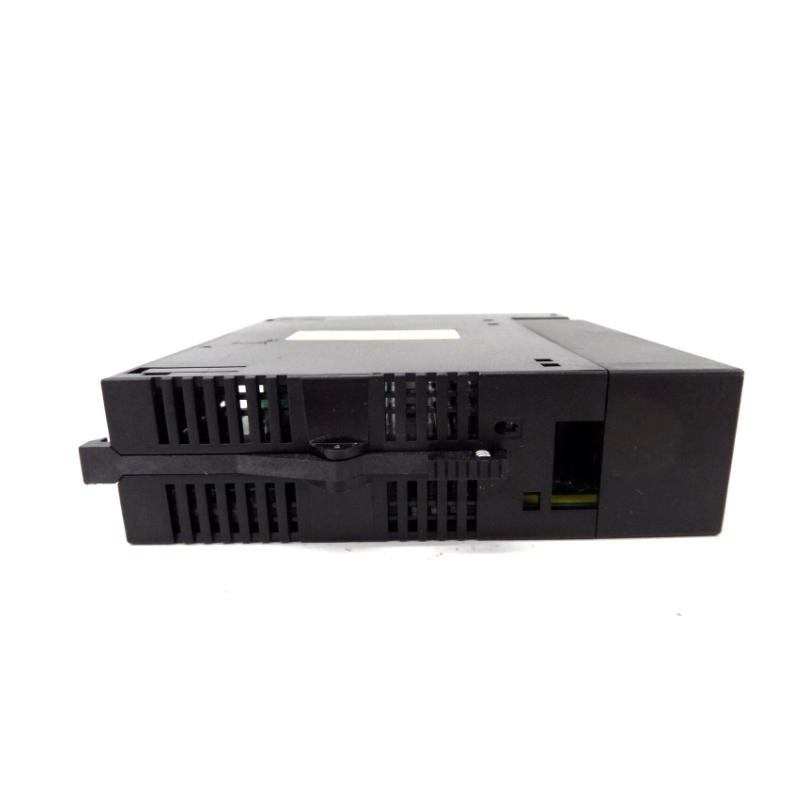

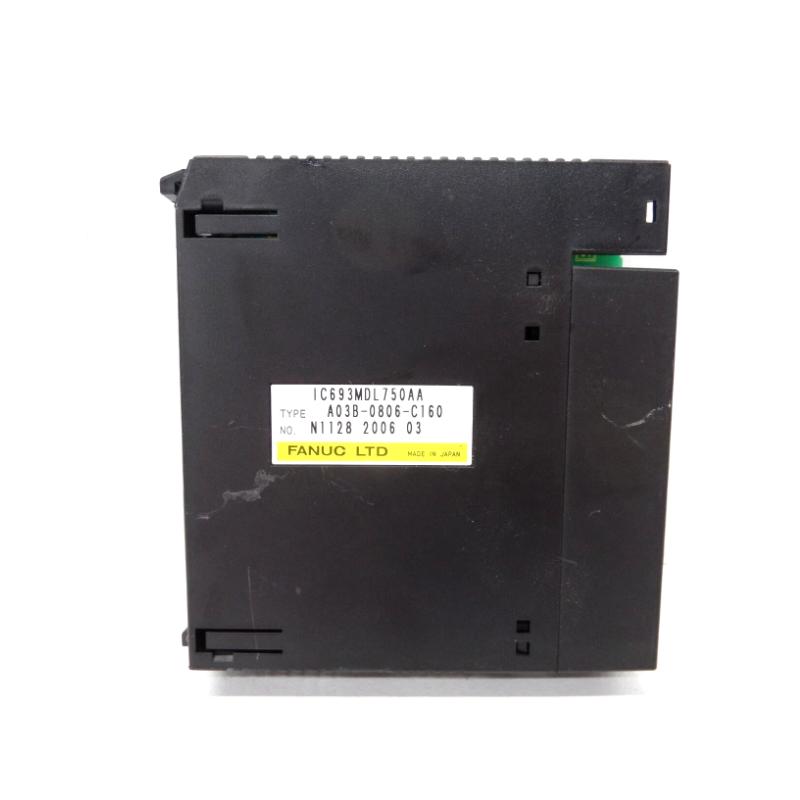

The GE IC693MDL750 is a discrete digital input module engineered for GE Fanuc Series 90-30 PLC platforms that require dependable acquisition of 24 V DC field signals. Ideal for industrial automation environments, this module captures and delivers discrete on/off status information from sensors, switches, safety interlocks, and other binary devices to the PLC with consistent accuracy. Its rugged design and efficient performance make it a solid choice for both system expansions and long-term production applications.

Technical Specifications

Specification	Description
Module Type	Digital Input Module
Input Points	16 discrete inputs
Nominal Input Voltage	24 V DC
Input Configuration	Sinking
Electrical Isolation	Group-isolated inputs
Compatible PLC	GE Fanuc Series 90-30
Mounting	Rack / baseplate mounted
Environment	Industrial control cabinets

Dimensions (L×W×H): 140 × 38 × 102 mm
Weight: 0.44 kg

Recommended Related Models

GE IC693MDL660 – Standard 16-point digital input module
GE IC693MDL730 – High-density 32-input module
GE IC693MDL340 – Noise-resistant input module
GE IC693DSM314 – High-density discrete output module

Popular GE Series 90-30 Models

GE IC693CPU372 – Advanced CPU module for demanding logic
GE IC693CPU374 – High-performance Series 90-30 CPU
GE IC693DNM200 – DeviceNet master communication module
GE IC693DNS201 – DeviceNet slave communication module

Applications

The IC693MDL750 is widely deployed in automation systems that require reliable discrete input monitoring, including:

Manufacturing and assembly line signal acquisition
Machinery status and event monitoring
Safety interlock and emergency logic detection
Process and material handling systems
PLC expansion and retrofit projects

Its dependable input feedback supports accurate control decisions and helps maintain operational continuity.

Advantages

Reliable digital input acquisition for 24 V DC field devices
Industrial-grade design built for harsh environments
Compact form factor supports efficient rack and panel layouts
Seamless integration with Series 90-30 PLC systems
Proven performance suitable for continuous industrial operation

The IC693MDL750 provides robust and consistent discrete input performance for a range of control applications.

Technical FAQs

How many discrete inputs does the IC693MDL750 support?
The module provides 16 discrete 24 V DC input points.
Is it compatible with all GE Series 90-30 CPUs?
Yes – it integrates with standard Series 90-30 CPU modules.
What field devices can be connected to this module?
Proximity sensors, limit switches, push buttons, and similar discrete devices.
Does this module support hot-swapping?
No – the system should be powered down before installation or removal.
Is the module suitable for continuous industrial operation?
Yes – it is designed for long-term, dependable performance.
Does the module work well in electrically noisy environments?
Yes – industrial-grade input conditioning supports stable signal acquisition.
Does it require external protection devices?
Yes – external fusing or protection is recommended based on the field wiring setup.
Is special configuration software needed?
Standard GE Series 90-30 programming tools are sufficient.
Can this module replace other discrete input modules?
In many cases, yes – provided electrical and system requirements match.
Where is the IC693MDL750 typically installed?
Within industrial control cabinets on Series 90-30 I/O racks.
