Introduction

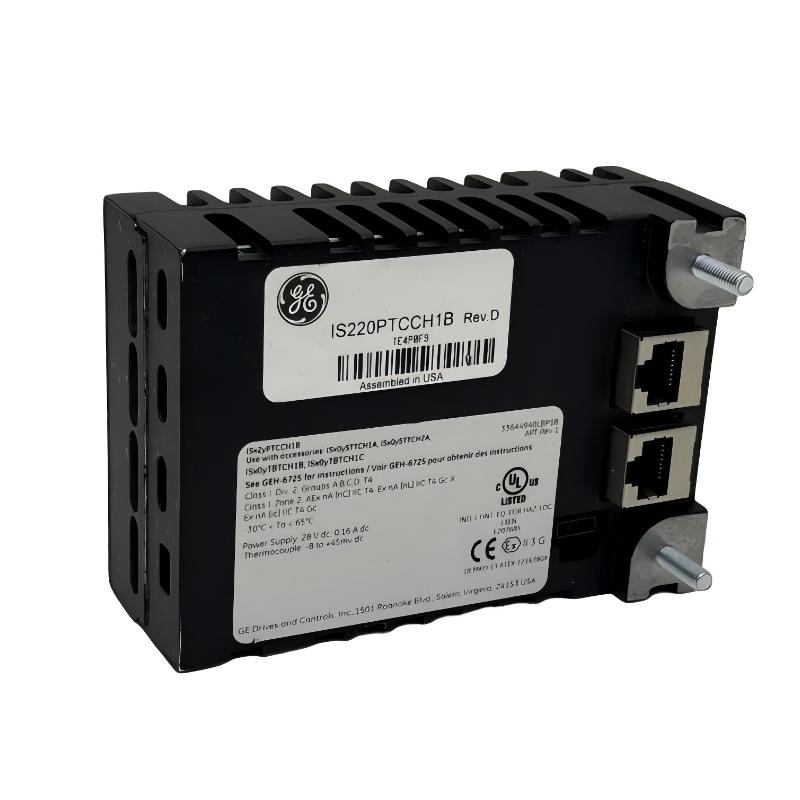

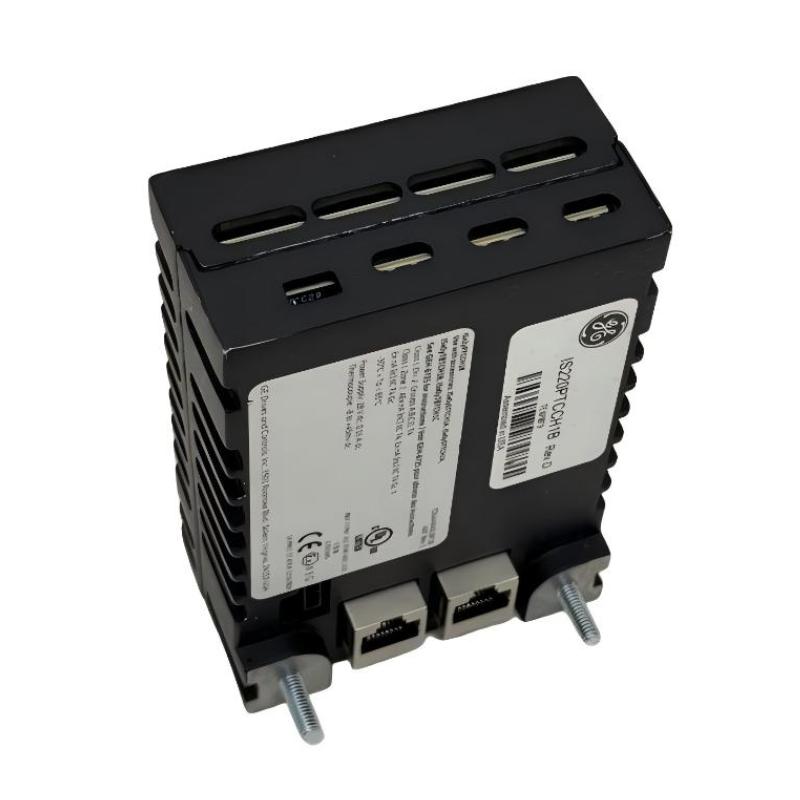

The IS220PTCCH1B Thermocouple Input Module is an essential component for precision temperature measurement in industrial control systems. Its reliable performance ensures that process controllers receive accurate, real-time data, helping maintain safety, efficiency, and product quality. With its compact footprint and rugged design, the module offers seamless integration, long-term stability, and confidence in even the most challenging operational environments.

Technical Specifications

Specification	Details
Model	IS220PTCCH1B
Type	Thermocouple Input Module
Function	Measures temperature from thermocouples and relays signals to control systems
Dimensions	120 × 80 × 40 mm
Weight	0.5 kg
Thermocouple Types	K, J, T, E
Signal Processing	Internal conditioning and linearization
Mounting	Rack or DIN rail installation
System Compatibility	GE Fanuc Mark V and Mark VI platforms

Recommended Related Models

GE Fanuc IS220RTDCH1B RTD Input Module
GE Fanuc IS220AICH1B Analog Input Module
GE Fanuc IS220DIH1B Digital Input Module
GE Fanuc IS220DOH1B Digital Output Module

Popular Related Models

GE Fanuc IS200PTCCH1A Thermocouple Input Module
GE Fanuc IS220STCIH1A Terminal Interface Module
GE Fanuc IS220DSPXH1A DSP Control Module
GE Fanuc IS220VTURH1A Turbine Interface Module

Applications

The GE Fanuc IS220PTCCH1B Thermocouple Input Module is designed for precise temperature monitoring in industrial automation and control systems. It is widely used in turbine monitoring, boiler systems, chemical plants, and other process industries where accurate temperature feedback is critical for system performance and safety. This module enables real-time data collection to optimize operations and prevent potential system failures.

Advantages

Supports multiple thermocouple types for flexible integration
Delivers accurate, reliable temperature readings in high-demand environments
Compact design allows efficient installation in control racks
Reduces downtime by providing fast, dependable signal input to the control system
Built to withstand industrial temperatures, vibration, and electrical noise

Technical FAQs

Which thermocouple types are supported?
The module supports common industrial types including K, J, T, and E.
Is the module compatible with GE Fanuc Mark V and Mark VI systems?
Yes, it is designed to integrate seamlessly with both platforms.
What is the input range?
It handles standard thermocouple voltage ranges according to type.
Is field calibration required?
Minimal calibration is needed; the module is factory-calibrated for accuracy.
Can it operate in high-temperature cabinets?
Yes, it is engineered to tolerate elevated ambient temperatures typical in industrial panels.
Does it require external signal conditioning?
No additional conditioning is required; the module handles signal processing internally.
Is the module hot-swappable?
Yes, it can be replaced without shutting down the entire control system, following standard procedures.
What is the typical response time?
Fast response suitable for real-time control and monitoring applications.
Does it provide diagnostics or status indicators?
Basic indicators are available for monitoring module health and input status.
What mounting method does it use?
Designed for standard DIN rail or rack-mounted installation within control cabinets.
