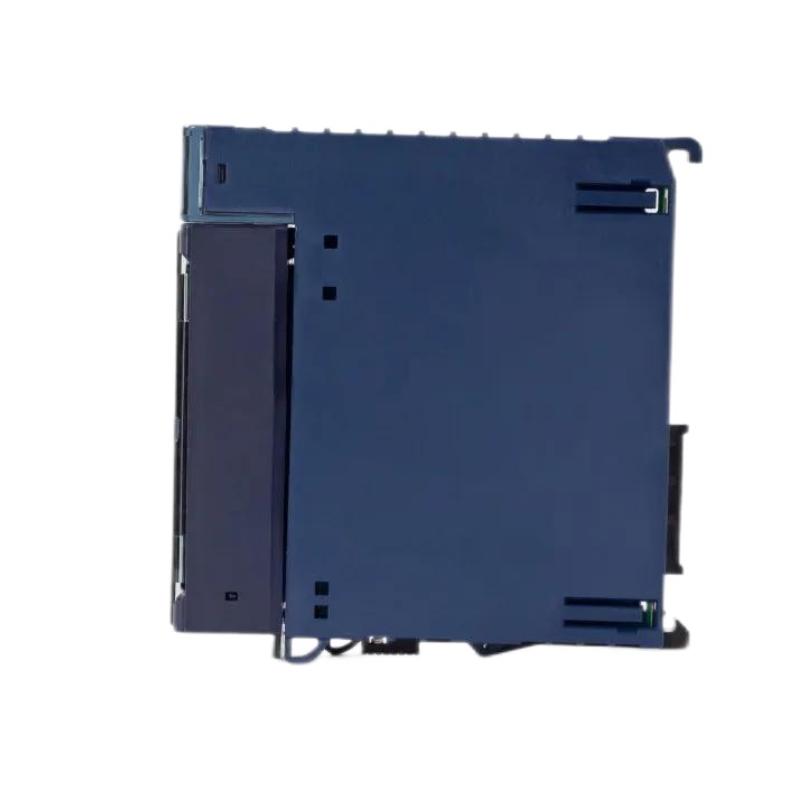

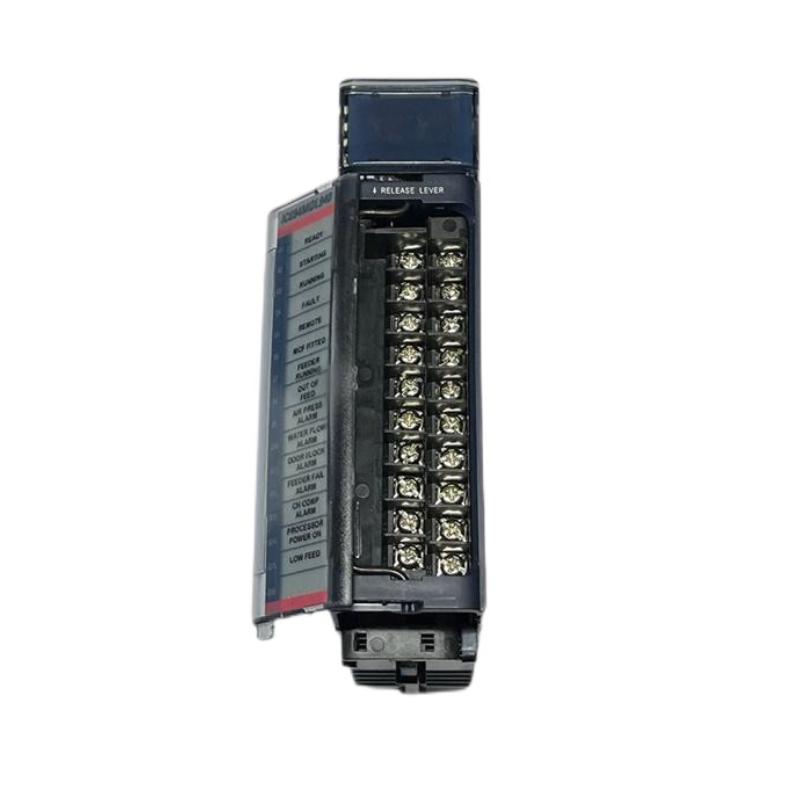

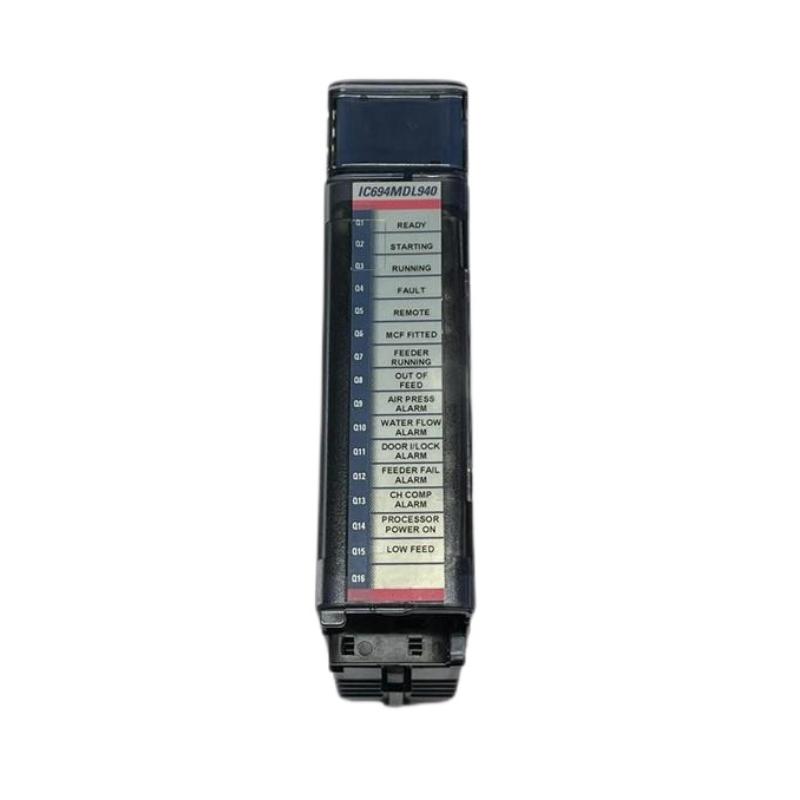

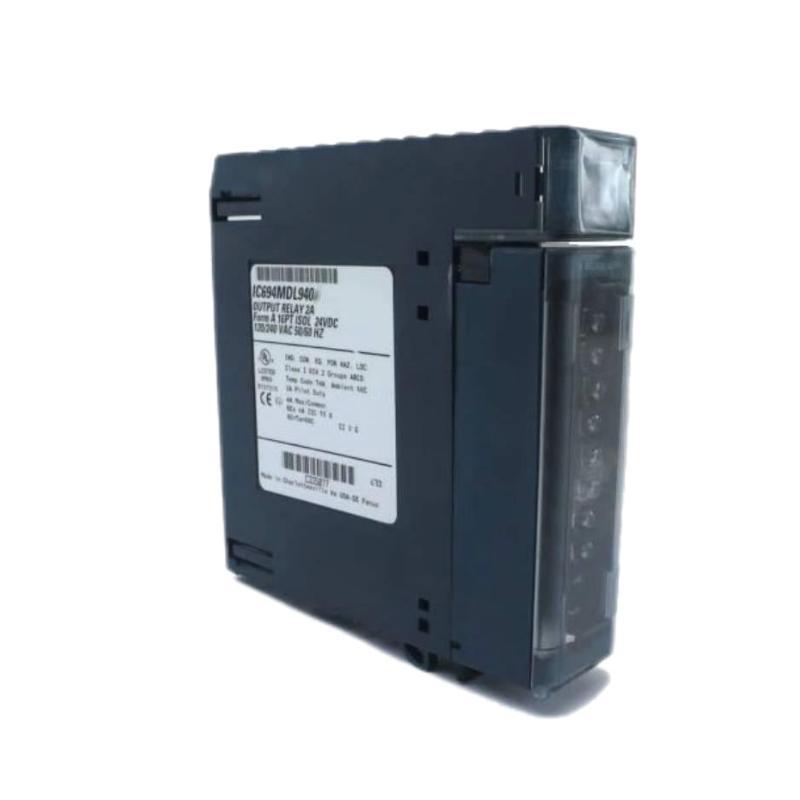

The GE IC694MDL940 is a reliable discrete relay output module designed for GE Fanuc PACSystems RX3i programmable logic controllers. Engineered for industrial automation environments, this module provides 16 individually isolated relay outputs arranged into four groups of four. Each channel supports both AC and DC loads, offering versatility for controlling solenoids, contactors, indicator lamps, and other devices in manufacturing, process control, and machinery systems.
Technical Specifications
| Specification | Details |
|---|---|
| Module Type | Relay Output Module |
| Compatible PLC Series | GE Fanuc PACSystems RX3i |
| Number of Outputs | 16 isolated relay outputs (4 groups × 4) |
| Contact Form | Form A (normally open) |
| Output Voltage Range | 5–30 VDC or 5–250 VAC (50–60 Hz) |
| Rated Voltages | Typical 24 VDC or 120/240 VAC |
| Max. Output Current | 2 A per point (pilot duty); 4 A per group |
| Inrush Rating | ~5 A |
| Min. Load | 10 mA |
| Response Time | ≤ 15 ms ON/OFF |
| Isolation | 250 VAC continuous field-to-backplane, 1500 VAC for 1 min |
| LED Indicators | 16 status LEDs (one per output) |
| Power Consumption | ~7 mA @ 5 VDC (logic) + 135 mA @ 24 VDC (relay supply) |
| Mounting | Standard RX3i I/O backplane slot |
| Operating Temp. | 0 °C – 60 °C |
| Dimensions (L×W×H) | ~145 × 34 × 140 mm (standard RX3i module form) |
| Weight | ~0.37 kg (0.81 lbs) |
This module uses dry relay contacts, allowing it to switch a wide range of voltages without polarity concerns, and it fits seamlessly into RX3i backplane racks.
