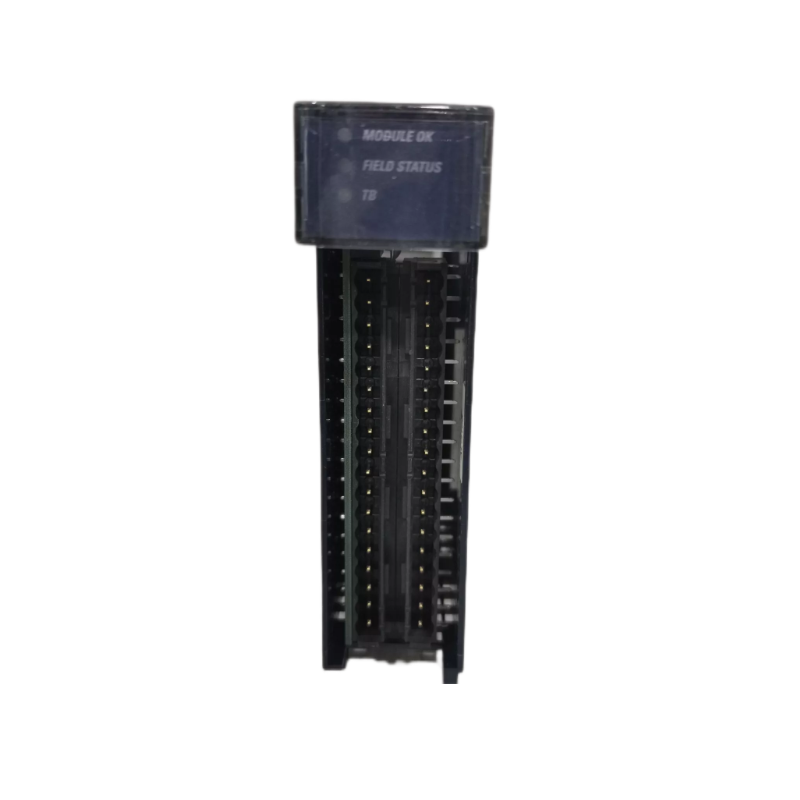

The GE IC695ALG106 is a high-precision analog input module designed for GE Fanuc PACSystems RX3i programmable automation controllers. Built to acquire real-world analog signals from industrial sensors and transmit them to the PLC logic, this module supports a wide range of voltage and current inputs with isolated channels, flexible filtering, and configurable data formats. Its robust resolution and noise rejection make it ideal for demanding applications such as process monitoring, motion control, and instrumentation.
Technical Specifications
| Specification | Details |
|---|---|
| Module Type | Isolated Analog Input Module |
| Compatible PLC Series | GE Fanuc PACSystems RX3i (requires CPU firmware v5.0+ and Proficy Machine Edition v5.6 SP11+) |
| Number of Inputs | 6 individually isolated channels |
| Input Signal Types | Voltage: ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V; Current: 0–20 mA, 4–20 mA, ±20 mA |
| Input Impedance | Voltage: >500 kΩ; Current: 250 Ω ± 1 % |
| Resolution | 16-bit ADC; data configurable as 32-bit IEEE floating point or 16-bit integer |
| Filter Options | 8 Hz, 12 Hz, 16 Hz, 40 Hz, 250 Hz, 1000 Hz configurable digital filtering |
| Response Time | ~1–2 ms (scan base) depending on filter setting |
| Open Circuit Detection | Yes — up to 1 s maximum for open loop on voltage and 4–20 mA ranges |
| Overvoltage Protection | ±35 VDC continuous maximum |
| Overcurrent Protection | ±35 mA continuous maximum |
| Isolation Voltage | Transformer/isolated channel-to-backplane (250 VAC cont.; 1500 VAC for 1 min) |
| Power Consumption | ~230 mA @ 5 VDC; ~320 mA @ 3.3 VDC from backplane |
| Power Dissipation | ~2.97 W max (all channels at 20 mA) |
| Operating Temp. | Industrial standard (approx. 0 °C to +60 °C) |
| Mounting | Single RX3i Universal Backplane slot (terminal block required separately) |
| Dimensions (L×W×H) | ~145 × 34 × 140 mm (standard RX3i module form factor) |
| Weight | ~0.27 kg (approx.) |
The IC695ALG106 is engineered for software configurability, meaning no jumpers are necessary — ranges, scaling, filtering, and data formats are all set via the PLC programming environment.
