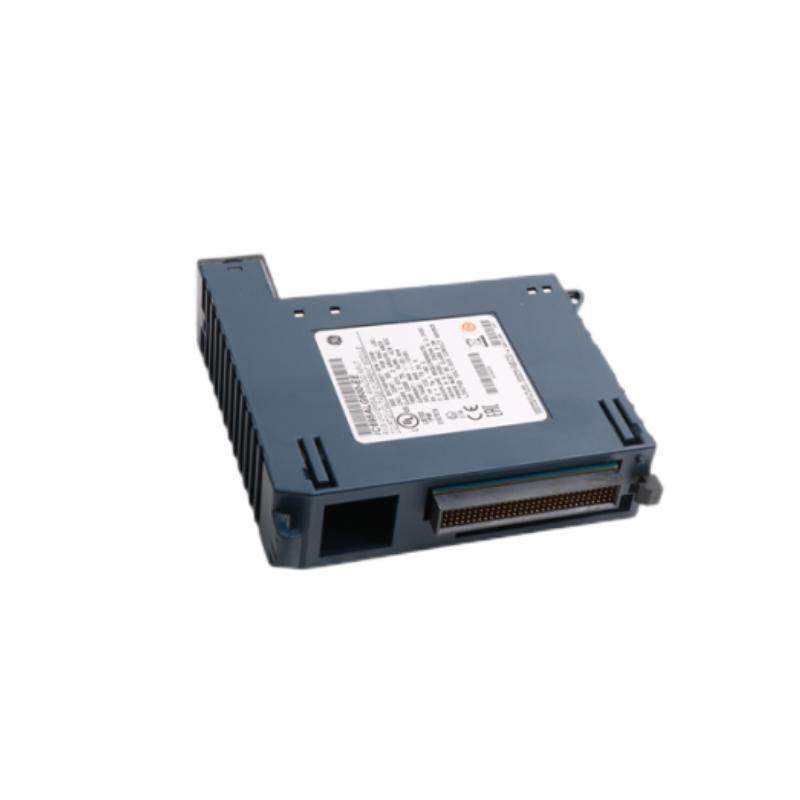

The GE IC695ALG600 Universal Analog Input Module is a high-performance measurement solution developed for the PACSystems RX3i platform. Designed to accommodate a wide spectrum of industrial signal types within a single module, it provides engineers with exceptional flexibility when integrating voltage, current, thermocouple, RTD, and resistance inputs.
By combining multi-signal capability with precision analog conversion technology, the IC695ALG600 helps reduce system complexity while maintaining reliable data acquisition. It is particularly well suited for advanced process environments where accuracy, scalability, and long-term operational stability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Universal Analog Input Module |
| Platform | PACSystems RX3i |
| Number of Input Channels | 8 configurable channels |
| Voltage Input Ranges | ±50 mV, ±150 mV, 0–5 V, 1–5 V, 0–10 V, ±10 V |
| Current Input Ranges | 0–20 mA, 4–20 mA, ±20 mA |
| Supported Thermocouple Types | B, C, E, J, K, N, R, S, T |
| RTD Compatibility | Pt100, Pt1000, Ni, Cu |
| Resistance Measurement | Programmable resistance ranges |
| A/D Conversion | Sigma-Delta |
| Maximum Resolution | Up to 16-bit (configuration dependent) |
| Backplane Power Requirement | 5 V DC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Dimensions (L×W×H) | 145×34×140 mm |
| Weight | Approx. 0.9 kg |
