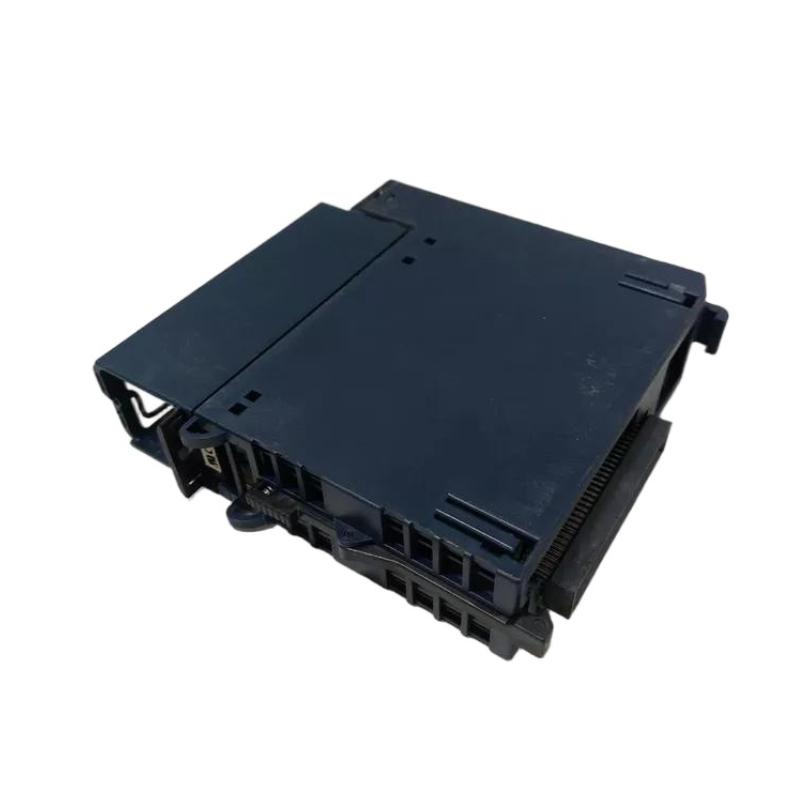

The GE IC695ALG616 Analog Input Module is a high-capacity, industrial-grade solution designed for the PACSystems RX3i automation platform. Featuring 16 analog input channels, this module is ideal for applications that demand large-scale signal acquisition with consistent precision and long-term stability.
Engineered to meet the requirements of complex process industries, the IC695ALG616 supports standard voltage and current input ranges while delivering reliable high-resolution conversion. Its robust architecture ensures stable operation in harsh industrial environments, making it suitable for mission-critical automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module |
| Platform Compatibility | PACSystems RX3i |
| Number of Input Channels | 16 single-ended analog inputs |
| Supported Signal Types | Voltage and Current |
| Voltage Input Ranges | 0–5 V, 1–5 V, 0–10 V, ±10 V |
| Current Input Ranges | 0–20 mA, 4–20 mA |
| A/D Conversion | Sigma-Delta |
| Resolution | Up to 16-bit |
| Input Filtering | Software configurable |
| Diagnostic Features | Over-range and under-range detection |
| Backplane Power Requirement | 5 V DC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Dimensions (L×W×H) | 145×34×140 mm |
| Weight | Approx. 0.9 kg |
