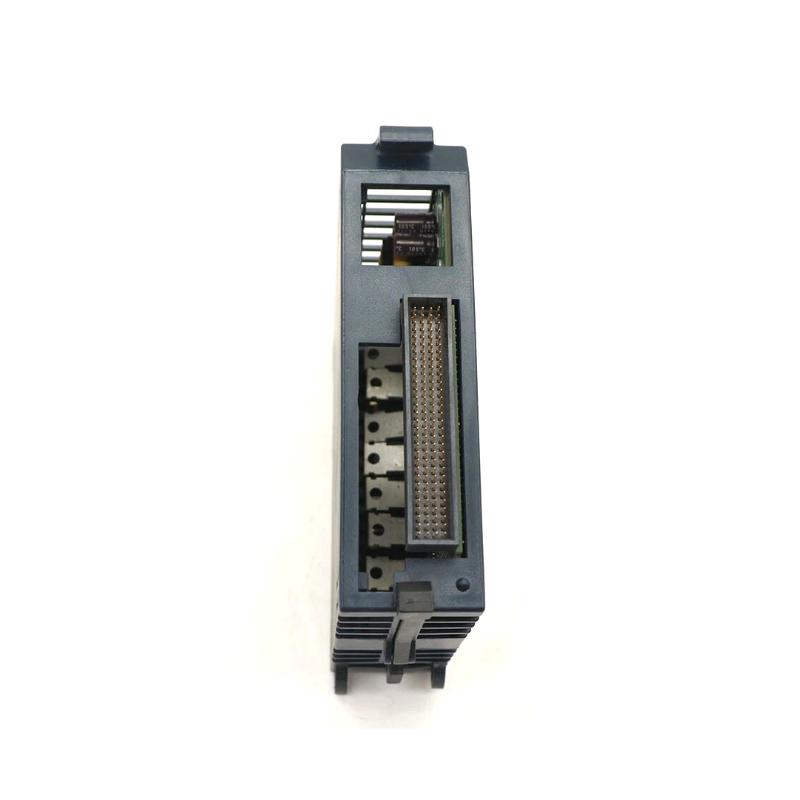

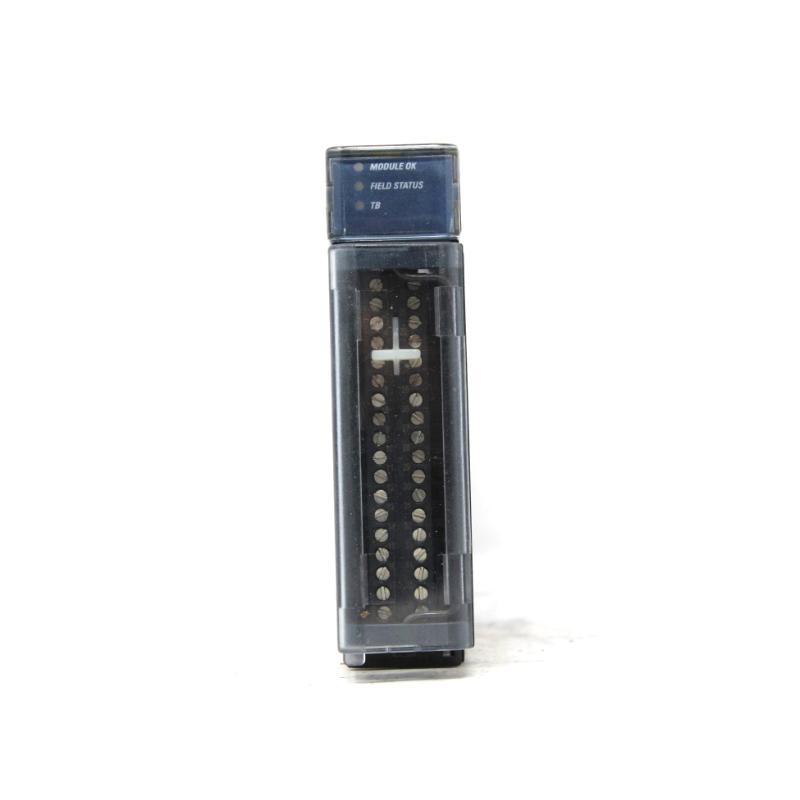

The GE IC695ALG708 High-Density Analog Input Module is a premium industrial I/O solution designed for the PACSystems RX3i automation platform. With 64 fully isolated analog inputs, this module is engineered for applications demanding expansive data acquisition without compromising signal integrity or conversion accuracy.

Ideal for large-scale process automation, energy systems, and sophisticated manufacturing operations, the IC695ALG708 consolidates extensive analog monitoring into a single compact unit. Its high channel count, robust isolation, and configurable filtering make it a strategic choice where scalability, precision, and reliability are essential.

Technical Specifications

Parameter Specification
Module Type High-Density Isolated Analog Input
System Compatibility PACSystems RX3i
Total Input Channels 64 isolated analog inputs
Supported Signal Types Voltage and Current
Voltage Ranges 0–5 V, 1–5 V, 0–10 V, ±10 V
Current Ranges 0–20 mA, 4–20 mA
A/D Conversion Sigma-Delta Analog-to-Digital
Resolution Up to 16-bit
Isolation Channel-to-channel and channel-to-backplane
Input Filtering Software configurable
Diagnostics Over-range, under-range, short/open detection
Backplane Power 5 V DC
Operating Temp 0°C to +60°C
Storage Temp −40°C to +85°C
Dimensions (L×W×H) 145×34×140 mm
Weight Approx. 1.5 kg

Recommended Related Models

GE IC695CPU320 – RX3i High-Performance CPU Module

GE IC695PWR330 – RX3i Power Supply Module

GE IC695ALG600 – Universal Analog Input Module

GE IC695ALG708 Terminal Blocks – Field Termination Kit

GE IC695BEM331 – Ethernet Communication Module

Popular GE Analog & I/O Modules

GE IC695ALG608 – 8-Channel Analog Input

GE IC695ALG616 – 16-Channel Analog Input

GE IC695ALG704 – 32-Channel Analog Input

GE IC695MDL753 – 32-Point Discrete Output

GE IC694PWR321 – Standard Power Supply

Industrial Applications

The IC695ALG708 is optimized for scenarios requiring broad analog coverage in a high-channel configuration:

Centralized process monitoring in electric utilities
Large-scale temperature and pressure measurement networks
Energy management and substation automation
Multi-sensor acquisition in chemical processing
Distributed control systems in manufacturing plants

Its ability to handle high channel counts without extra hardware simplifies system topology and reduces cabinet complexity.

Core Advantages

Extremely high input density — 64 isolated channels in a single module
Robust isolation per channel — minimizes noise and ground loop influence
Configurable filtering — enhances measurement accuracy
Wide signal support — covers standard industrial voltage and current ranges
Advanced diagnostics — over/under-range and open/short detection
Compact design — saves valuable backplane space

The IC695ALG708 is engineered to give automation systems a powerful analog front end with exceptional scalability and reliability.

Technical FAQs

1. How many analog channels are on this module?
It features 64 isolated analog input channels.

2. What signal types can it measure?
Voltage (0–5 V, 1–5 V, 0–10 V, ±10 V) and standard current ranges.

3. Is channel isolation provided?
Yes, all channels are fully isolated to maintain signal integrity.

4. What is the maximum resolution?
Up to 16-bit resolution depending on configuration and filtering.

5. Can it operate in industrial temperature conditions?
Yes, rated for 0°C to +60°C operation.

6. Does it provide diagnostic feedback?
Yes — including over-range, under-range, and open/short detection.

7. What platform is this compatible with?
Designed specifically for the PACSystems RX3i PLC platform.

8. Will it reduce system hardware footprint?
Yes, its high channel count consolidates many inputs in one module.

9. Is software configuration supported?
Yes, channel behavior and filtering are configurable via PLC programming software.

10. What types of industries typically use this module?
Electric utilities, energy distribution, chemical processing, and large-scale automation environments.
