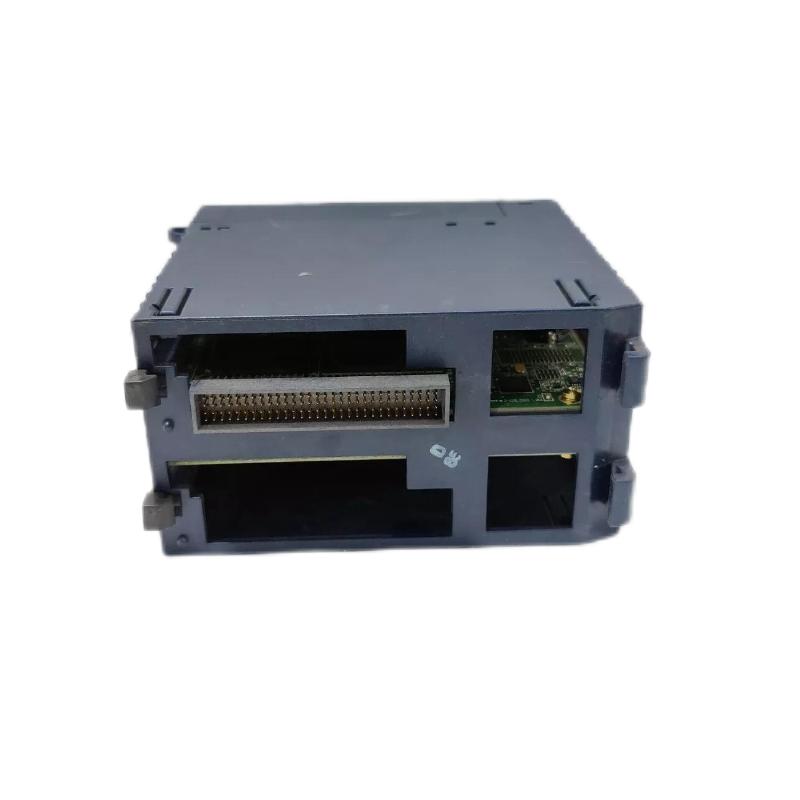

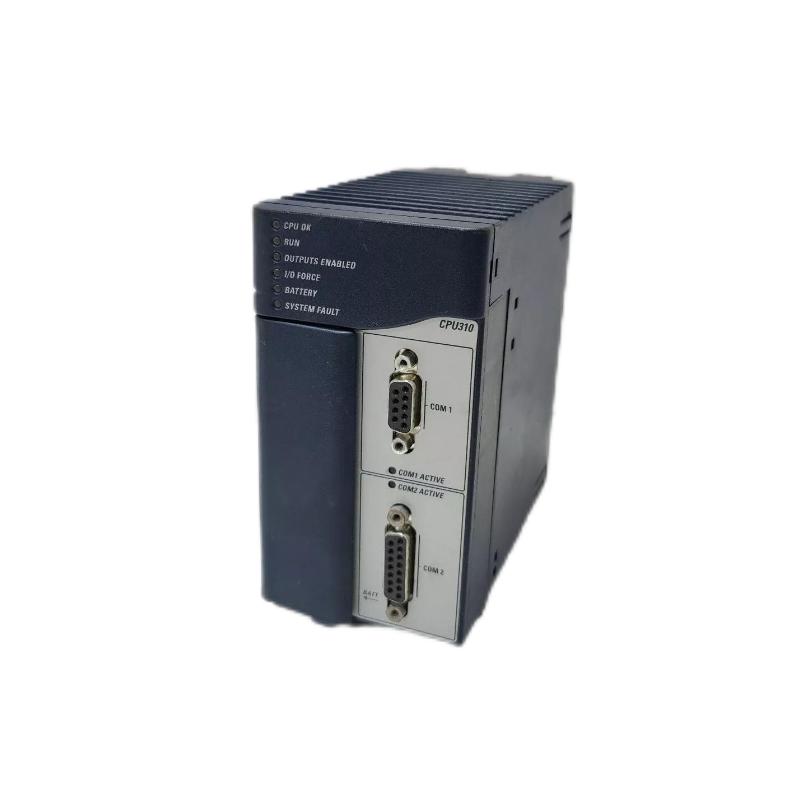

GE IC695CMU310 Universal PACSystems RX3i Central Monitoring Unit Module with Advanced System Control
GE IC695CMU310 Universal PACSystems RX3i Central Monitoring Unit Module with Advanced System Control
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IC695CMU310 Product Origin: USA Product Dimensions:145×34×140 mm Product Weight:0.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC695CMU310 Central Monitoring Unit is a powerful system-level communication and control module designed for PACSystems RX3i industrial automation platforms. Serving as a central hub for system diagnostics, messaging, and supervisory control tasks, it enhances the PLC’s ability to manage distributed systems, perform network coordination, and enable centralized monitoring without compromise.
Engineered for uptime and operational transparency, the IC695CMU310 integrates critical system health data and communication pathways into RX3i architectures. Its robust design supports multi-module networking, making it ideal for demanding automation applications in manufacturing, energy, utilities, and process control environments.
Technical Specifications
Specification
Details
Module Type
Central Monitoring Unit (CMU)
Compatible Platform
PACSystems RX3i
Functionality
System health monitoring, messaging, module status aggregation
Network Interfaces
Backplane high-speed serial bus
Diagnostics
Module status, rack health, error reporting
Configuration
Software configured via PLC programming tool
Mounting
Standard RX3i backplane slot
Operating Temperature
0°C to +60°C
Storage Temperature
−40°C to +85°C
Power Consumption
Backplane supplied (standard current draw)
Protection Rating
Industrial automation environments
Dimensions (L×W×H)
145×34×140 mm
Weight
Approx. 0.9 kg
The IC695CMU310 provides centralized insight into the status of key modules in the system, enabling faster troubleshooting, automated error logging, and improved system visibility — all contributing to higher reliability and reduced downtime.
Recommended Related Models
GE IC695CPU315 – RX3i CPU Module
GE IC695PWR330 – Power Supply Module
GE IC695BEM331 – Ethernet Communication Module
GE IC695ALG600 – Universal Analog Input Module
GE IC695MDL753 – 32-Point Discrete Output Module
Popular GE PACSystems Modules
GE IC695CPU310 – Standard CPU Module
GE IC695ALG608 – 8-Channel Analog Input
GE IC695ALG616 – 16-Channel Analog Input
GE IC694PWR321 – Expansion Power Supply
GE IC695ETM001 – Ethernet Interface Module
Applications
The IC695CMU310 excels in environments where system status awareness and centralized monitoring enhance operational efficiency:
Centralized diagnostics and monitoring in large PLC installations
Coordinated messaging across distributed control racks
Automated error detection and reporting
Health-monitoring in utilities and energy production facilities
Industrial data acquisition supervisory layers
By bringing system health and module status into a single monitoring point, the IC695CMU310 helps streamline operations and improve response times during fault conditions.
Advantages
Centralized system visibility — consolidates module and rack status.
Seamless RX3i integration — designed to operate within PACSystems architecture.
Intuitive configuration — software setup through PLC programming tools.
Industrial reliability — built for continuous automation system usage.
Scalable solution — fits into systems from small racks to distributed installations.
The IC695CMU310 offers a centralized point for understanding system behavior, making it a valuable addition to any large or complex PACSystems installation.
Technical FAQs
1. What is the primary function of the IC695CMU310?
It serves as a central monitoring unit that consolidates system and module status within RX3i PLC systems.
2. Where is this module installed?
It installs in any standard I/O slot on a PACSystems RX3i backplane.
3. Does it require external power?
No — it is powered through the RX3i backplane.
4. What temperatures is it rated for?
Operating range is 0°C to +60°C; storage range is −40°C to +85°C.
5. Can it report errors from other modules?
Yes — it aggregates status and error information from the rack and other modules.
6. Is configuration software required?
Yes — configuration is done via the PLC programming environment.
7. Does it support remote monitoring?
It integrates with upstream control and monitoring systems via communication modules.
8. What industries commonly use this module?
Manufacturing, utilities, petrochemical, energy, and process control.
9. How does it help maintenance teams?
By providing centralized status and automated reporting, it reduces troubleshooting time.
10. Is it compatible with all RX3i modules?
Yes — it is compatible within the RX3i modular ecosystem.
