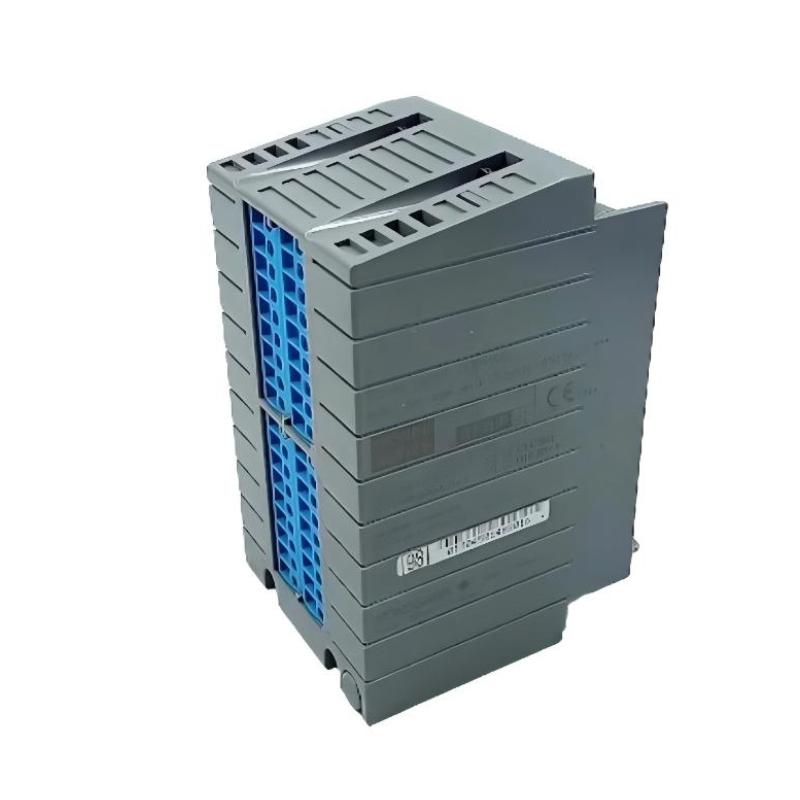

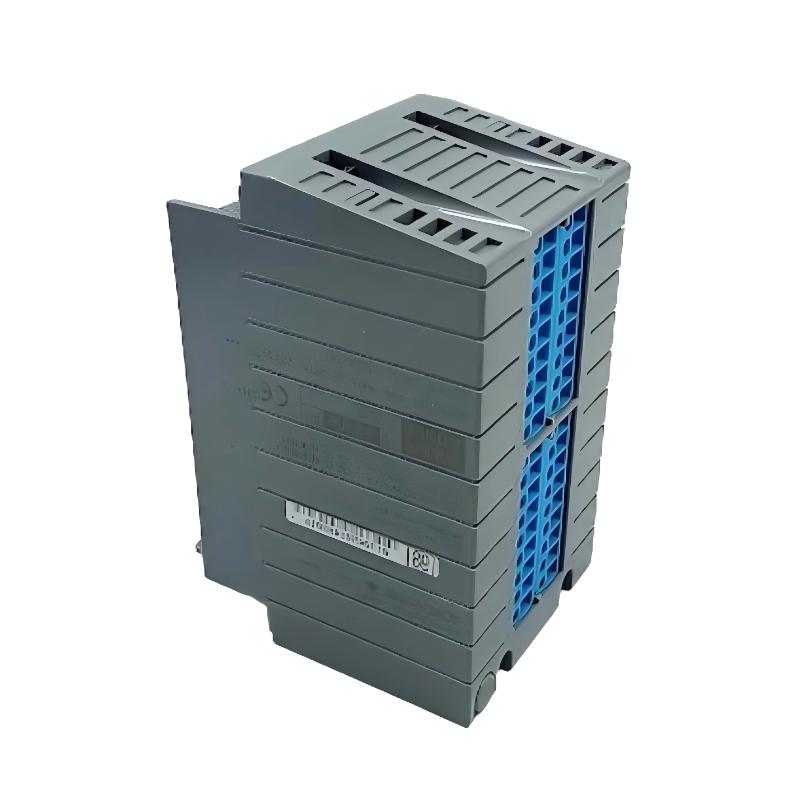

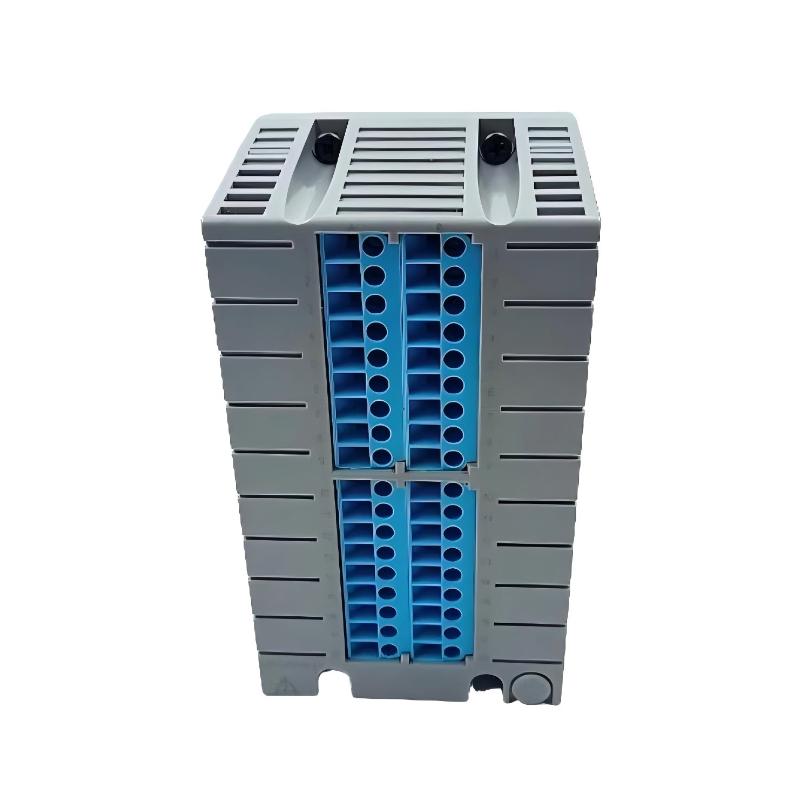

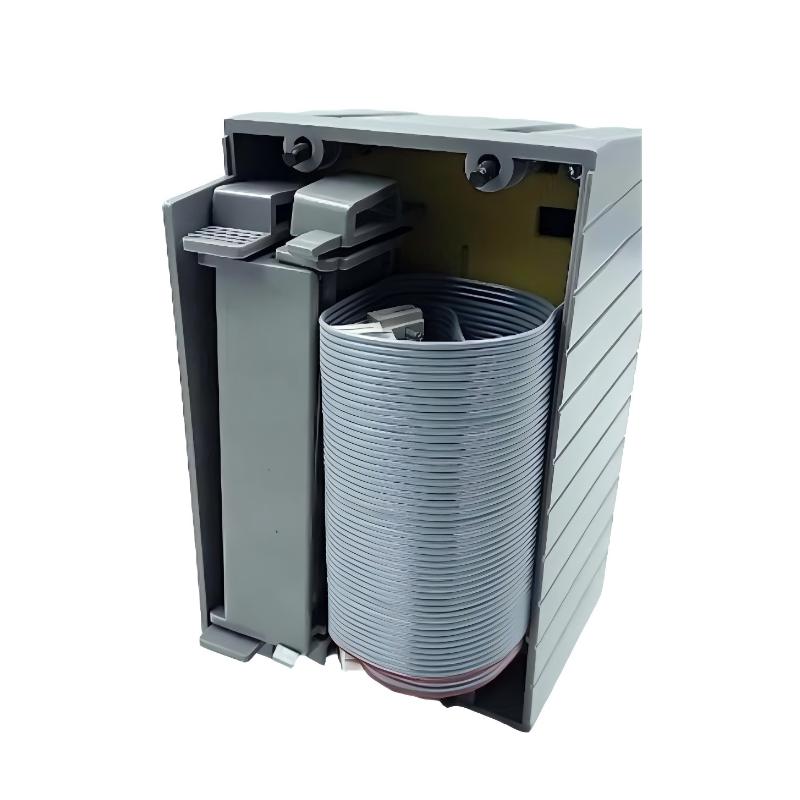

Yokogawa ATSR3D Dual Redundant Pressure Clamp Terminals

Applications

• Secure and reliable electrical connections in industrial automation systems.

• Dual-redundant terminal design for critical process control applications.

• Ideal for chemical, energy, and manufacturing plants requiring uninterrupted signal flow.

• Integration with DCS and PLC networks for precise control.

• Suitable for environments demanding high operational reliability and safety.

Advantages

• Dual-redundant design ensures continuous operation even if one terminal fails.

• Compact form factor saves cabinet space.

• Simple and fast installation with pressure clamp mechanism.

• High reliability in harsh industrial environments.

• Protects connected devices from signal interruptions and electrical faults.

Technical FAQs

1. What is the primary function of this terminal?
   It provides dual-redundant electrical connections for critical control systems.

2. Is it suitable for harsh industrial environments?
   Yes, designed to withstand dust, vibration, and moderate temperature variations.

3. How does redundancy work?
   The dual terminals ensure continuous signal flow even if one connection fails.

4. What is the installation method?
   Easy pressure-clamp mechanism for panel or DIN rail mounting.

5. Can it be used with Yokogawa DCS systems?
   Yes, fully compatible with standard Yokogawa DCS networks.

6. What is the expected operational lifespan?
   Over 10 years under normal operating conditions.

7. Does it provide protection against electrical faults?
   Yes, it safeguards connected devices from interruptions or overloads.

8. Is maintenance required?
   Minimal maintenance is needed due to the reliable clamp design.

9. What are the operating temperature limits?
   -10°C to 55°C for standard operation.

10. Are replacement parts available?
    Yes, through authorized Yokogawa distributors.
